No. 3 Test, Code 21, 25, 26, 28 (Code 5 On Turbo), O2 System Signal

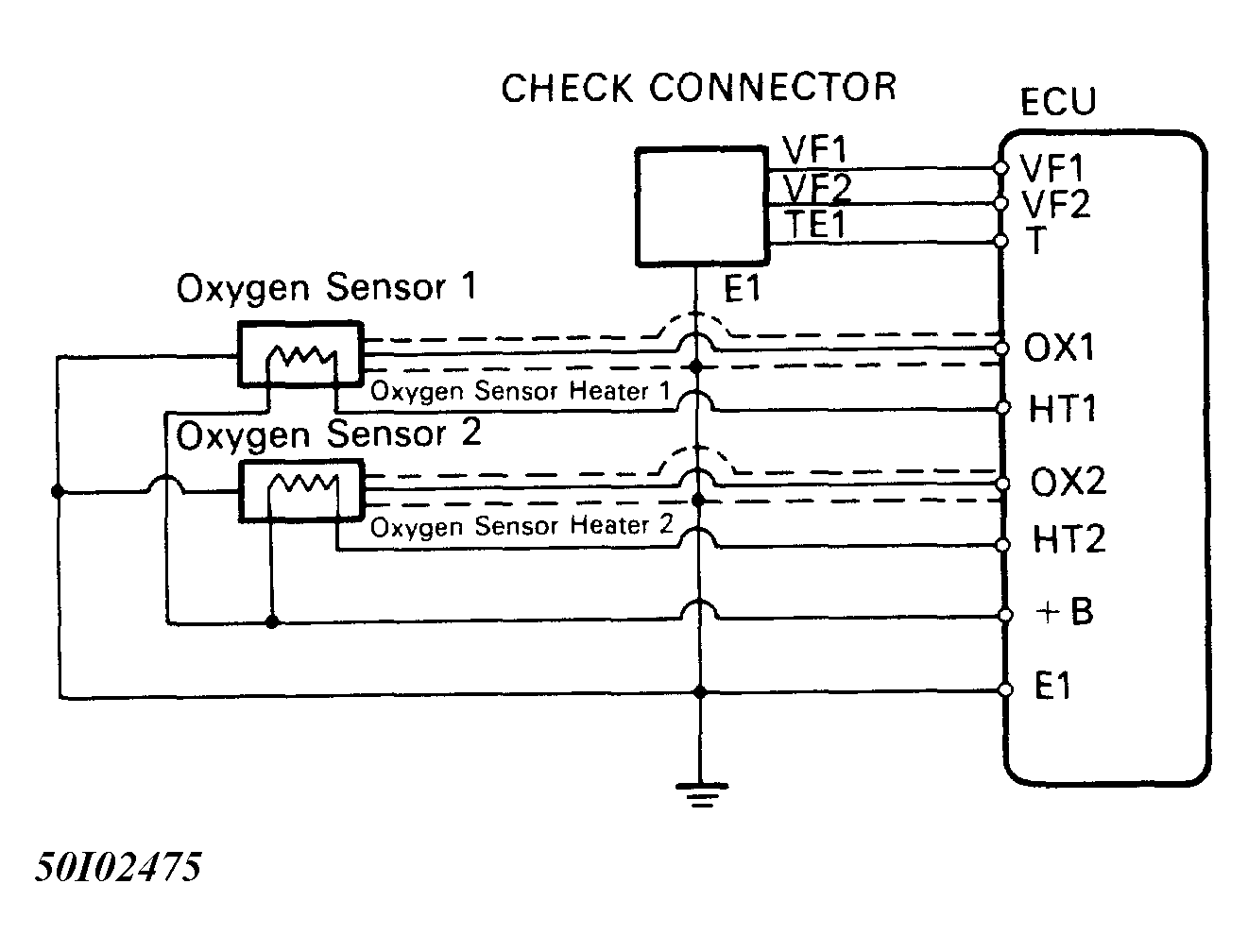

Fig 1: No. 3 Test, Code 21, 25, 26, 28 (Code 5 on Turbo) Schematic, O2 System Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

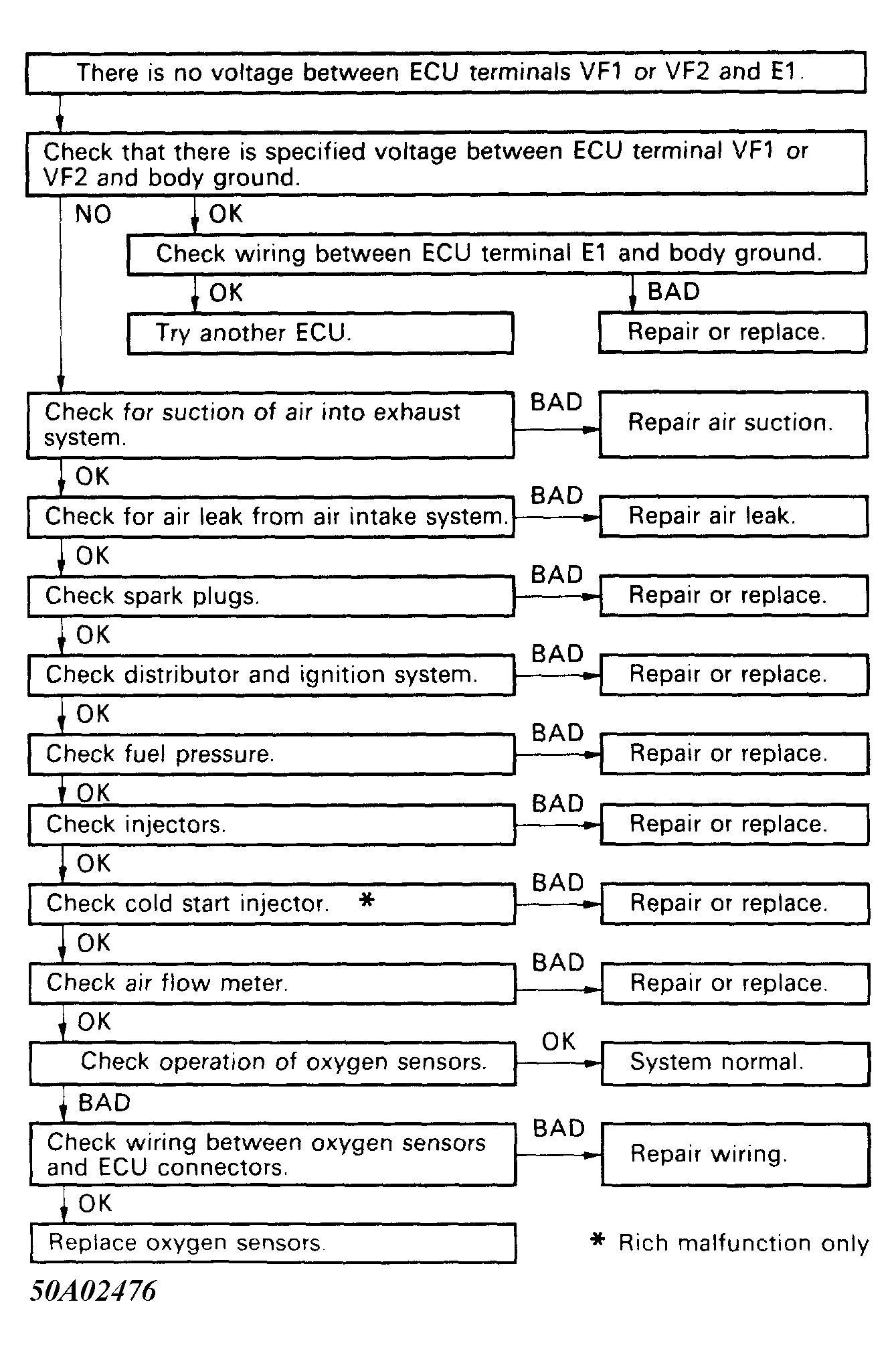

Fig 2: No. 3 Test, Code 21, 25, 26, 28 (Code 5 on Turbo) Flow Chart, O2 System Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

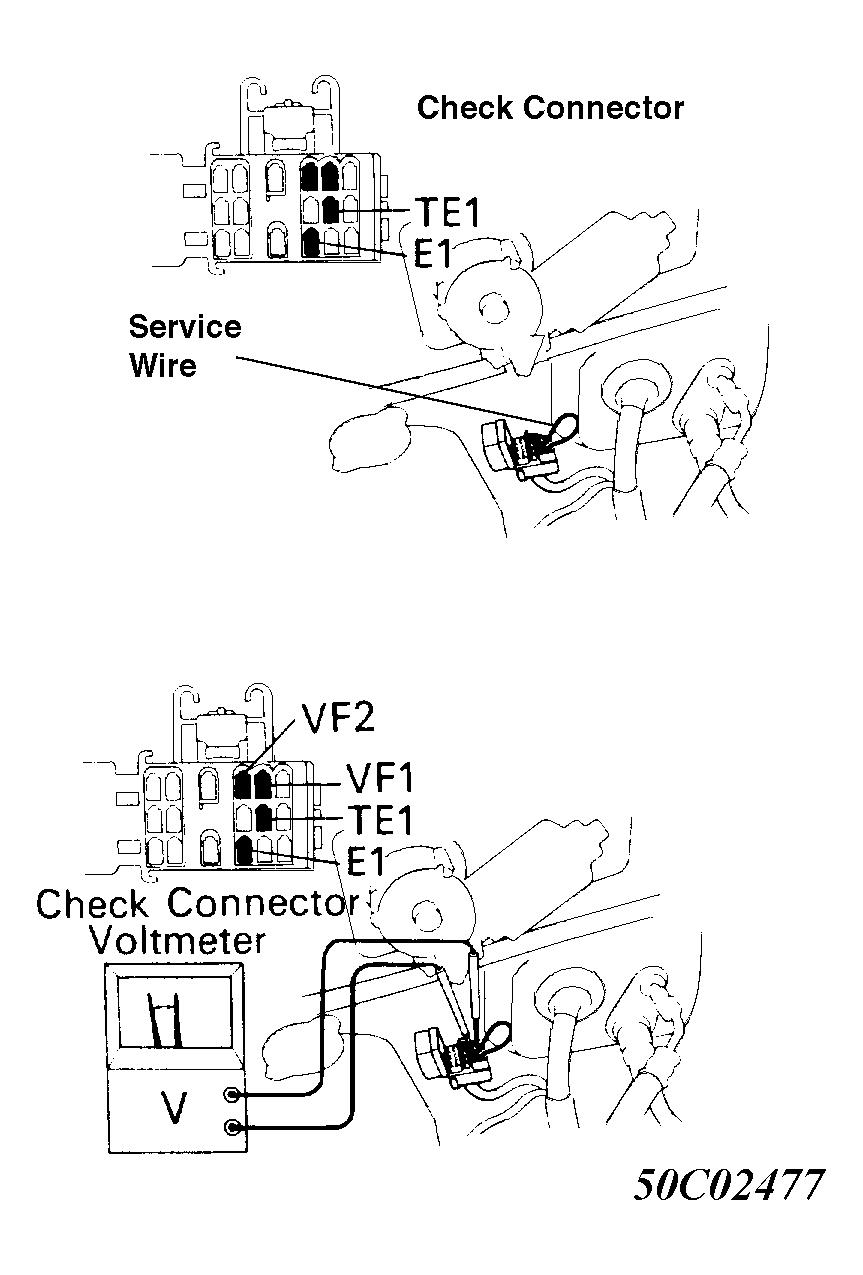

Fig 3: Operation Sensor Check (No. 3 Test)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
