No. 5 Test, Code 24 (Code 8 On Turbo), Intake Air Temperature Sensor Signal

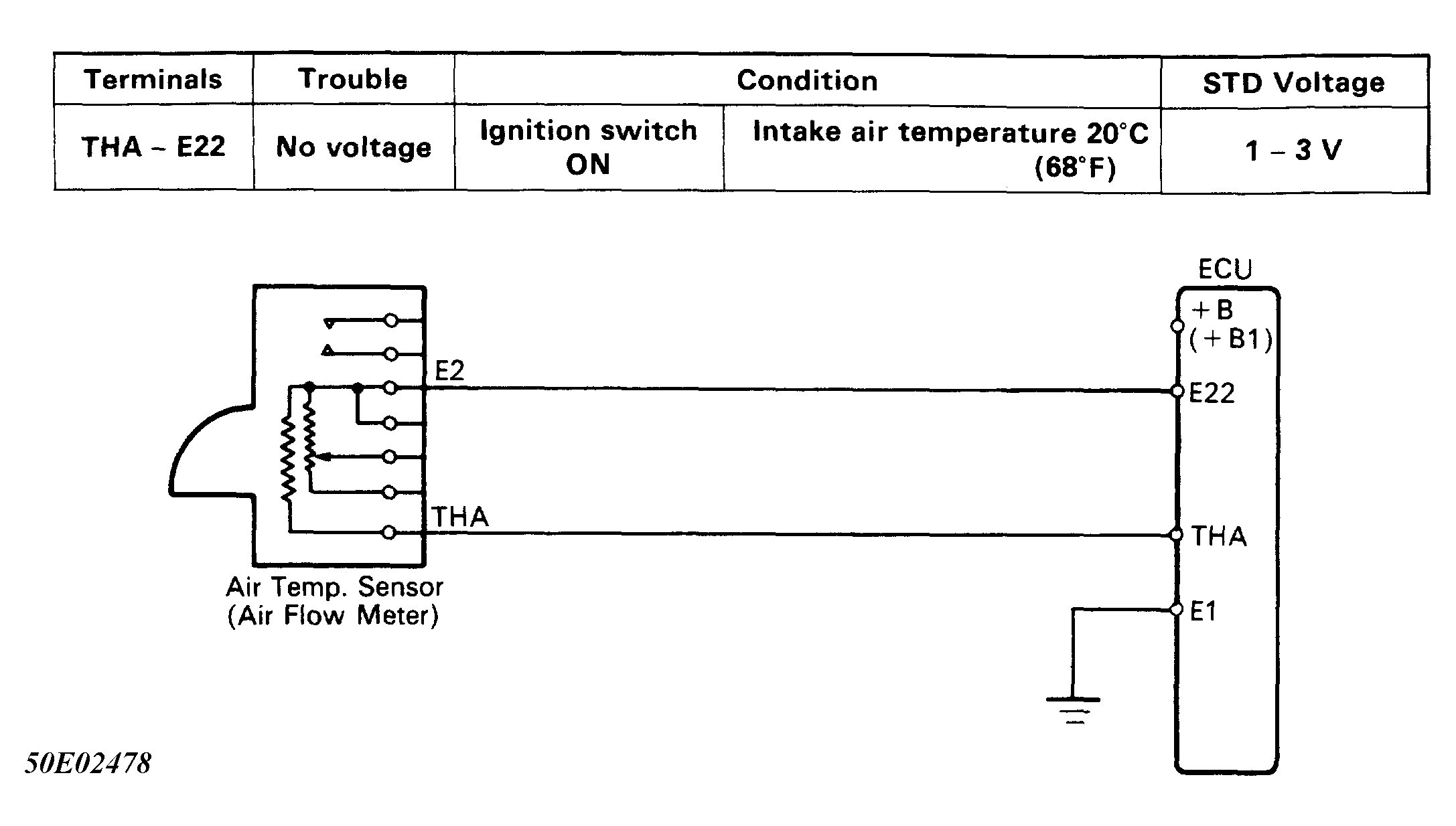

Fig 1: No. 5 Test, Code 24 (Code 8 on Turbo) Schematic, Intake Air Temp. Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

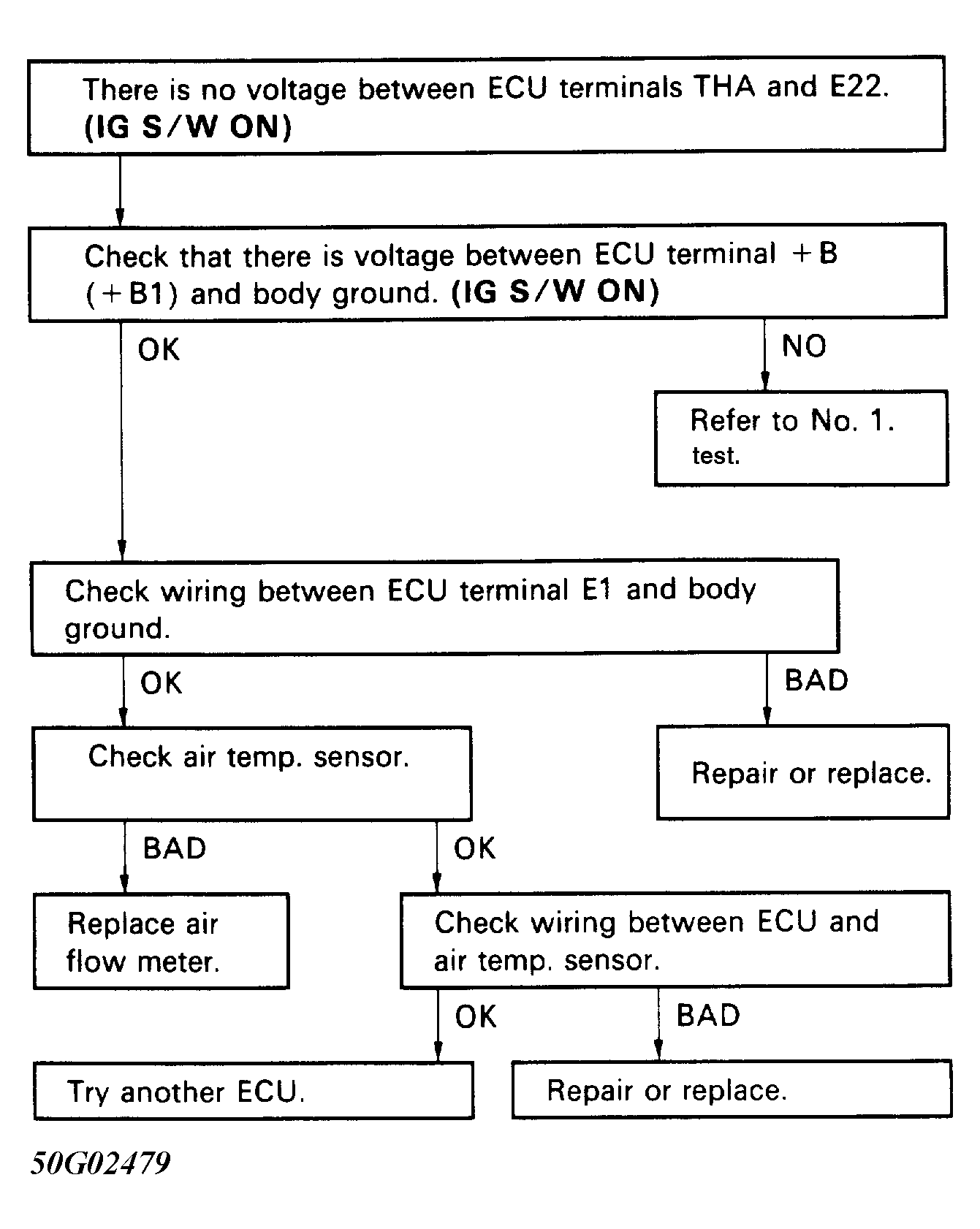

Fig 2: No. 5 Test, Code 24 (Code 8 on Turbo) Flow Chart, Intake Air Temp. Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: No. 5 Test, Code 24 (Code 8 on Turbo), Air Temp. Sensor Check

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
