Component Locations
Component Locations

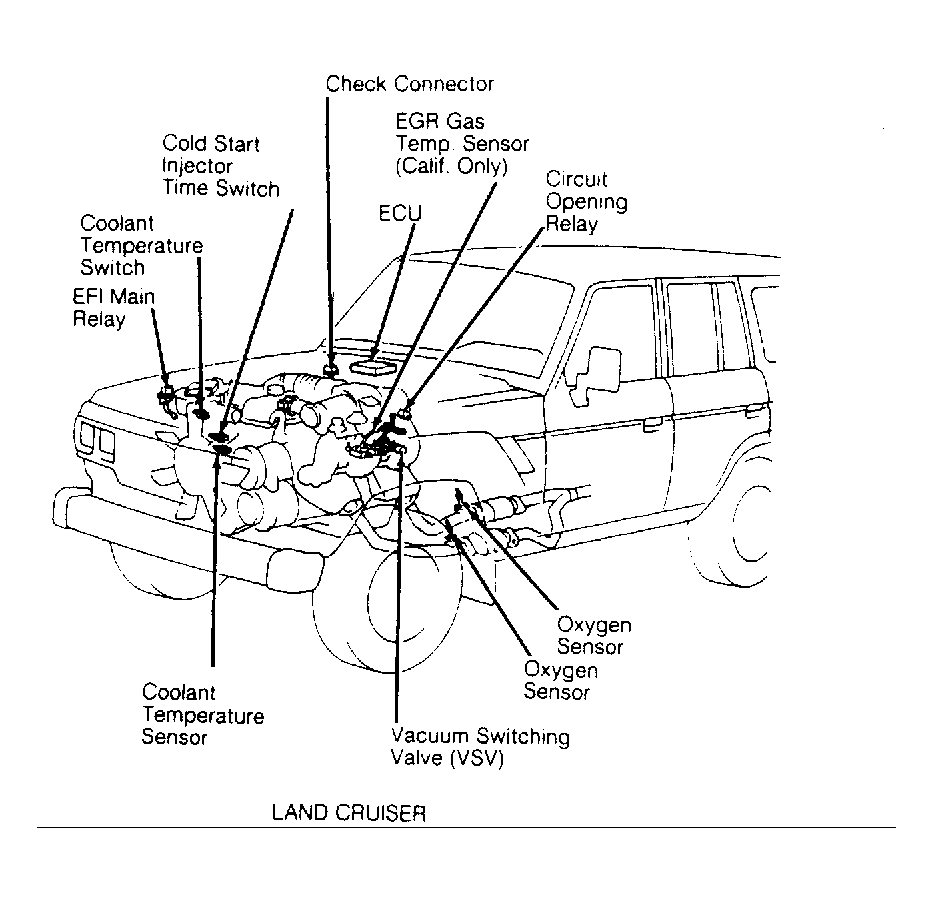

Fig 1: TCCS Component Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

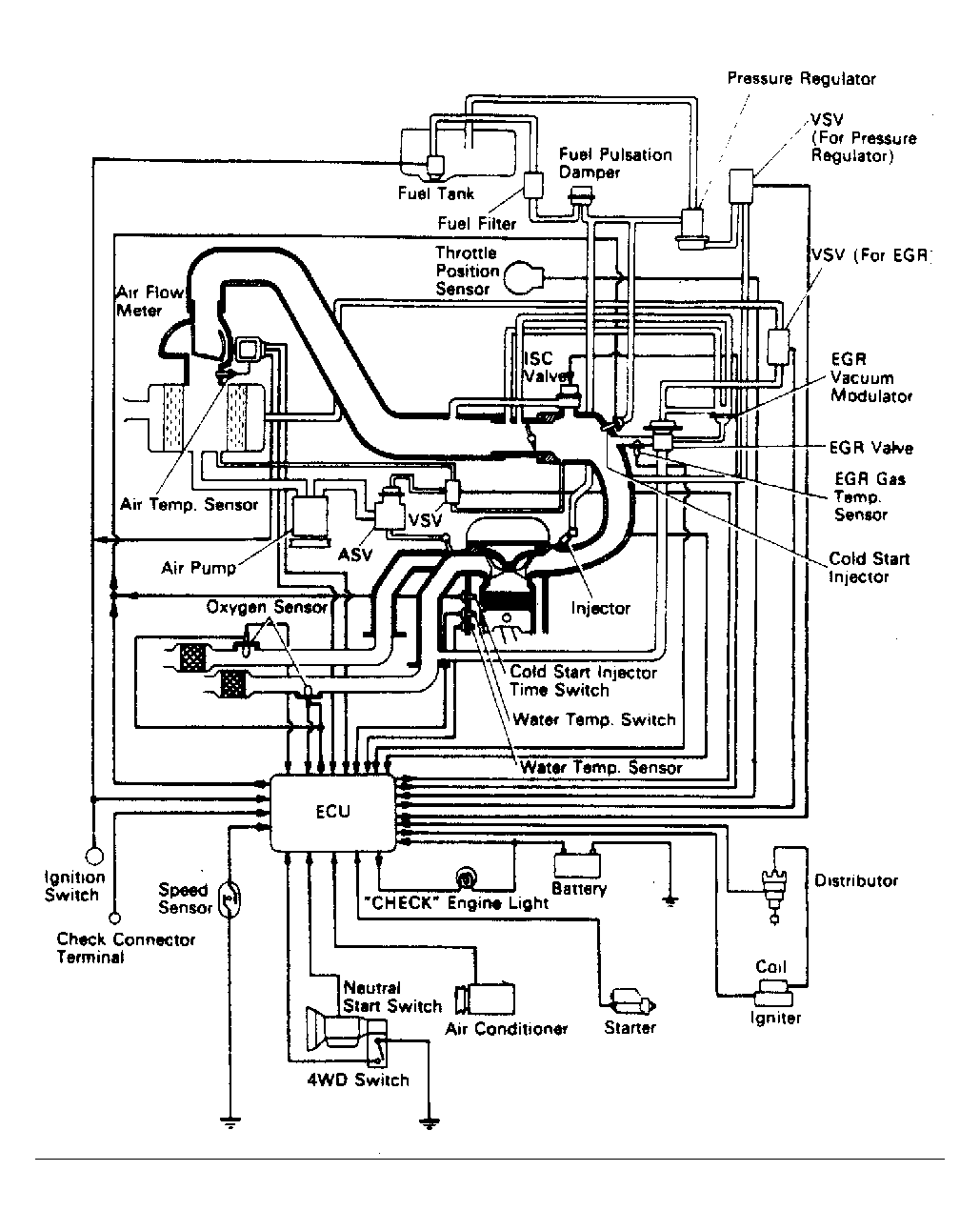

Fig 2: Computer Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
