No. 10 Test, Airflow Meter Signal

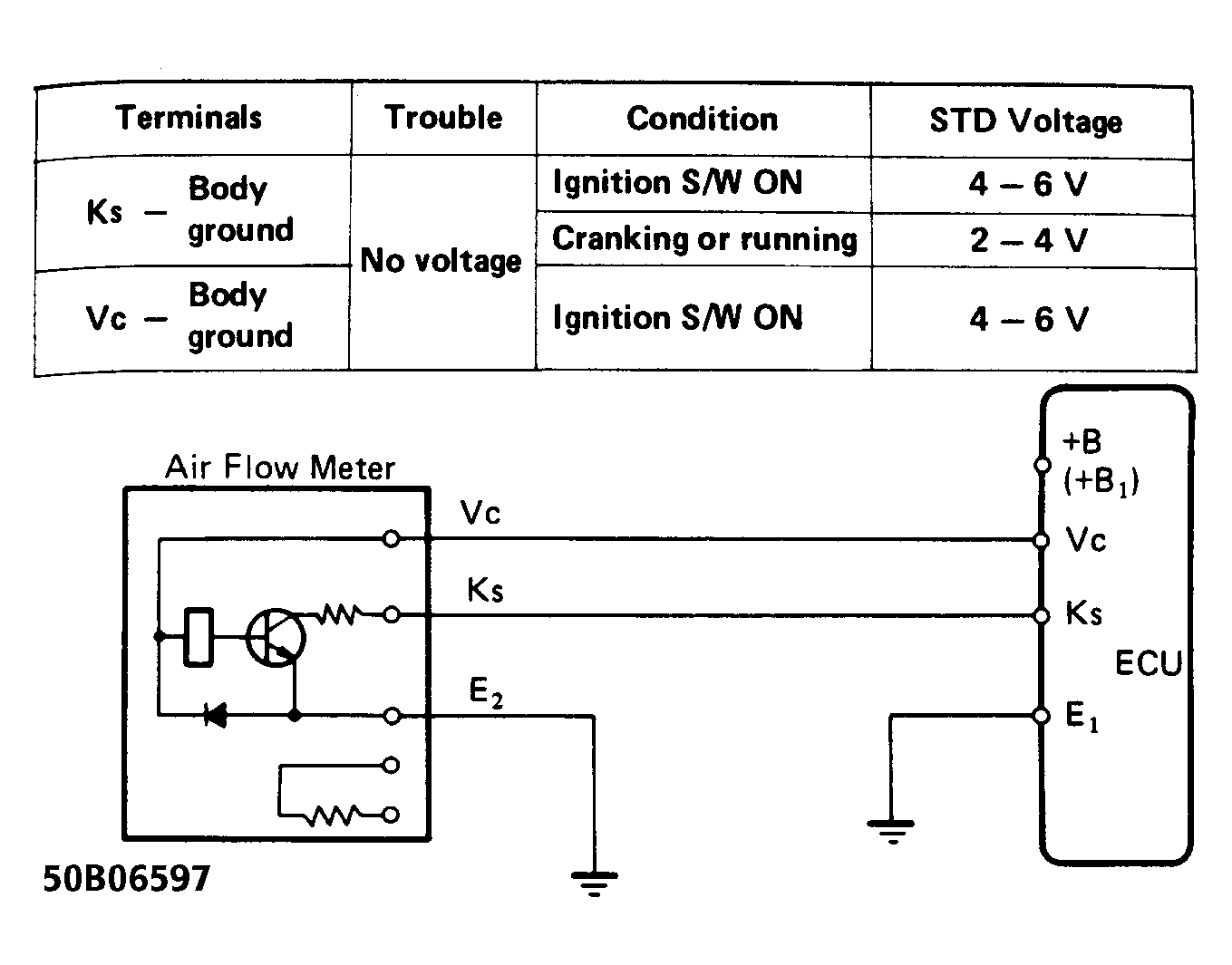

Fig 1: No. 10 Test Schematic, Airflow Meter Signal (Turbo)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: No. 10 Test Flow Chart (1 Of 2), Airflow Meter Signal (Turbo)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

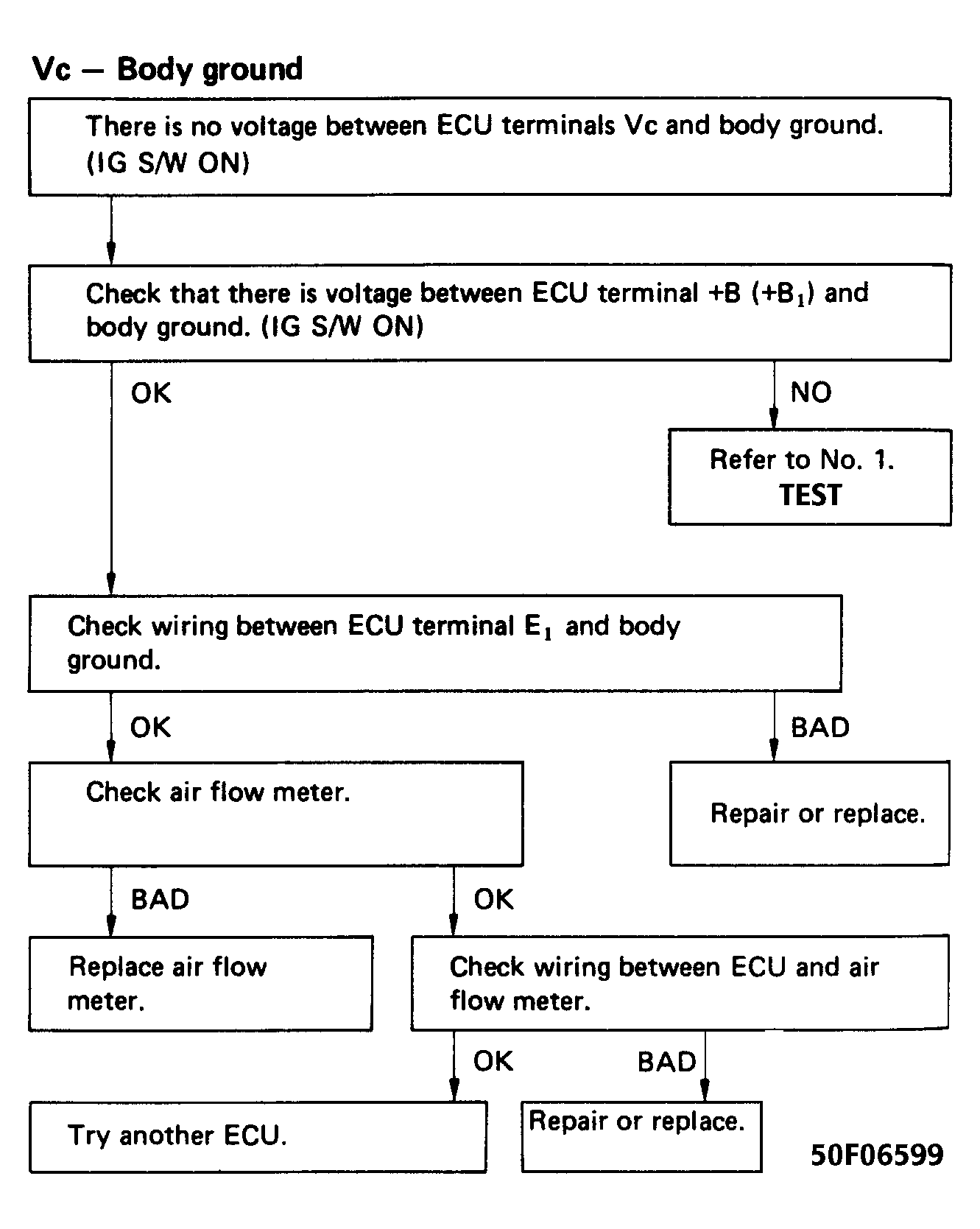

Fig 3: No. 10 Test Flow Chart (2 Of 2), Airflow Meter Signal (Turbo)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: No. 10 Test, Airflow Meter Check (Turbo)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
