Supra 7M-GTE, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Computer Control System
›
Diagnostic Charts
›
No. 11 Test, Ignition & Rpm Signal
No. 11 Test, Ignition & Rpm Signal

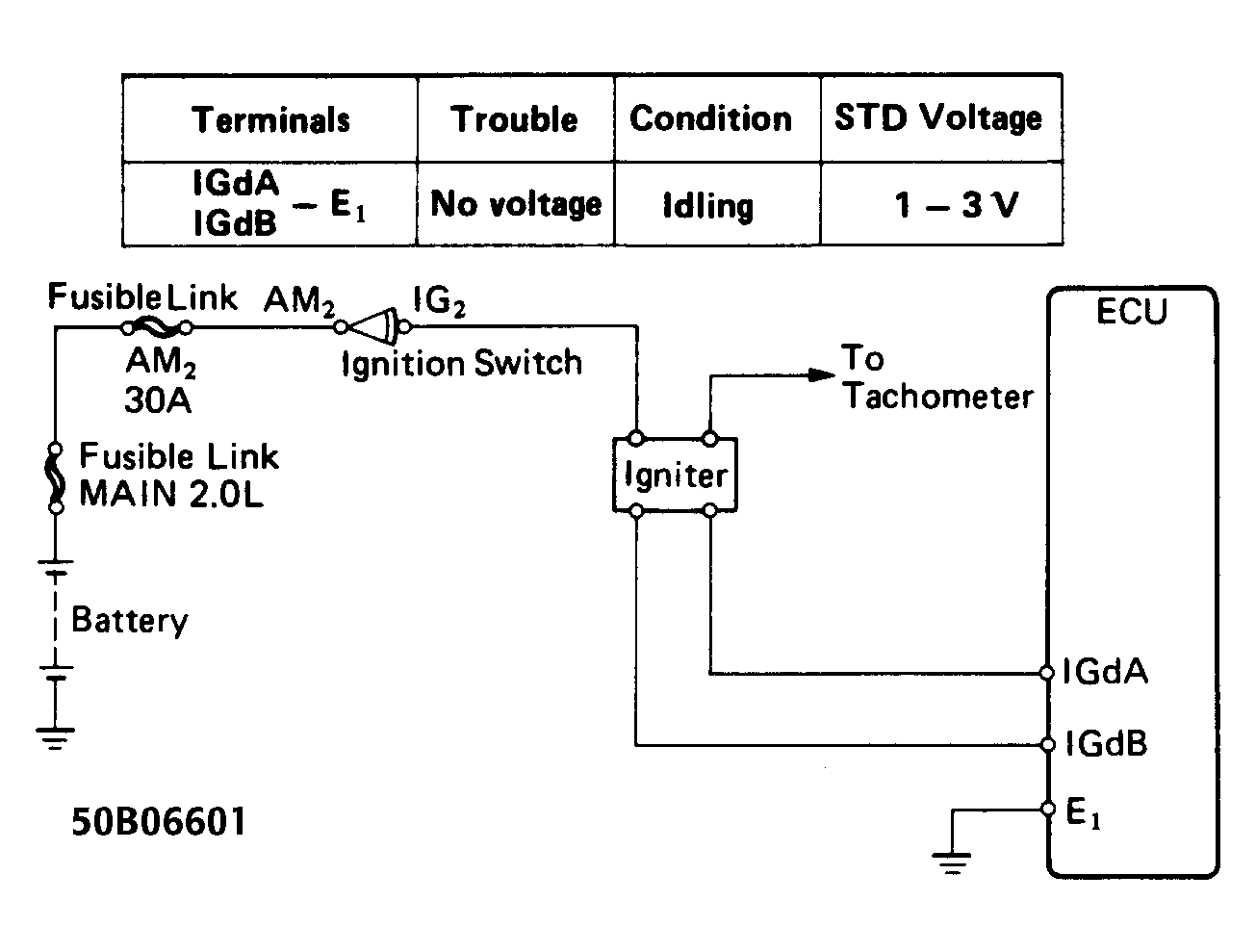

Fig 1: No. 11 Test, Ignition & RPM Signal (Turbo)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

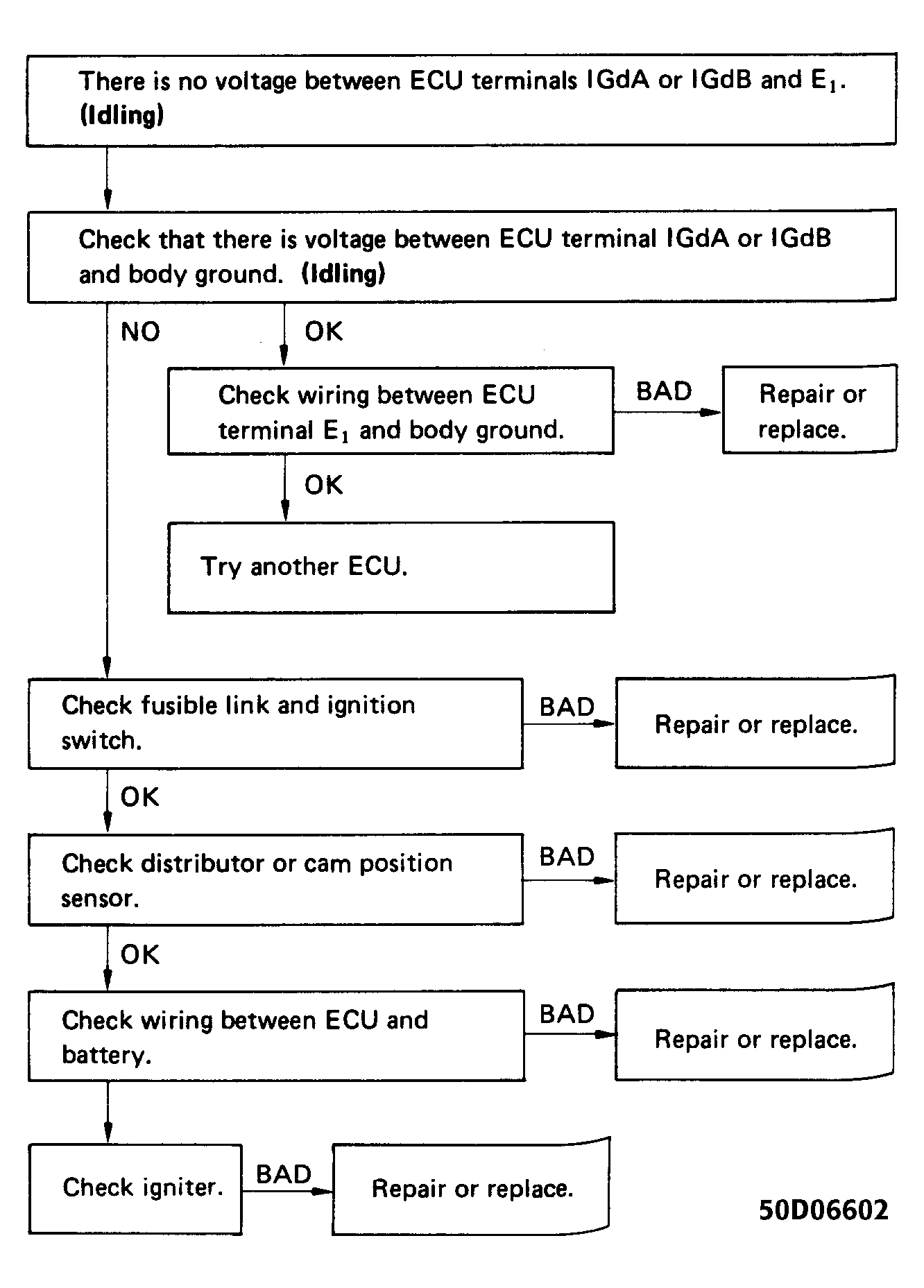

Fig 2: No. 11 Test, Ignition & RPM Signal (Turbo)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
