No. 12 Test, ISC Valve Circuit

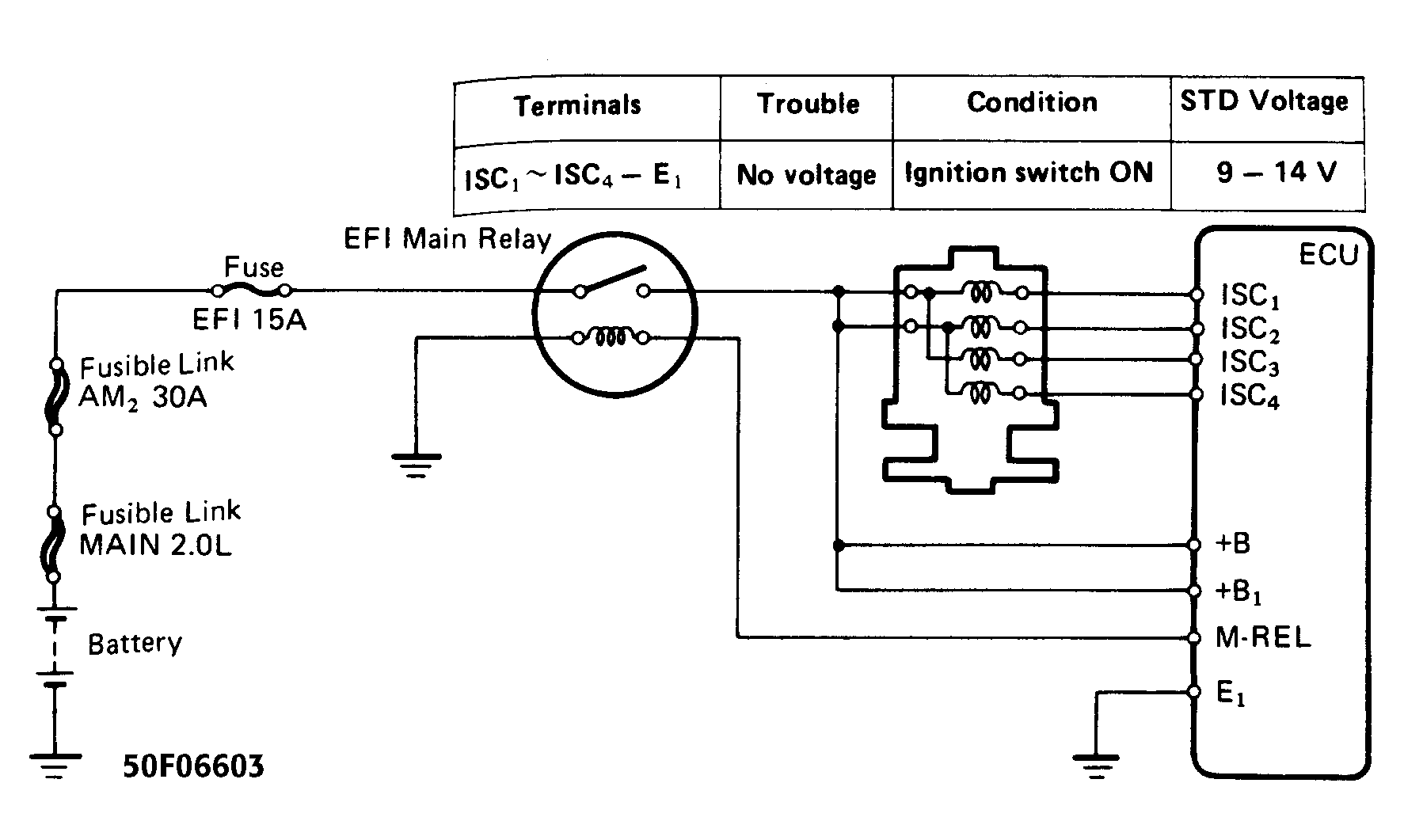

Fig 1: No. 12 Test Schematic, ISC Valve Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

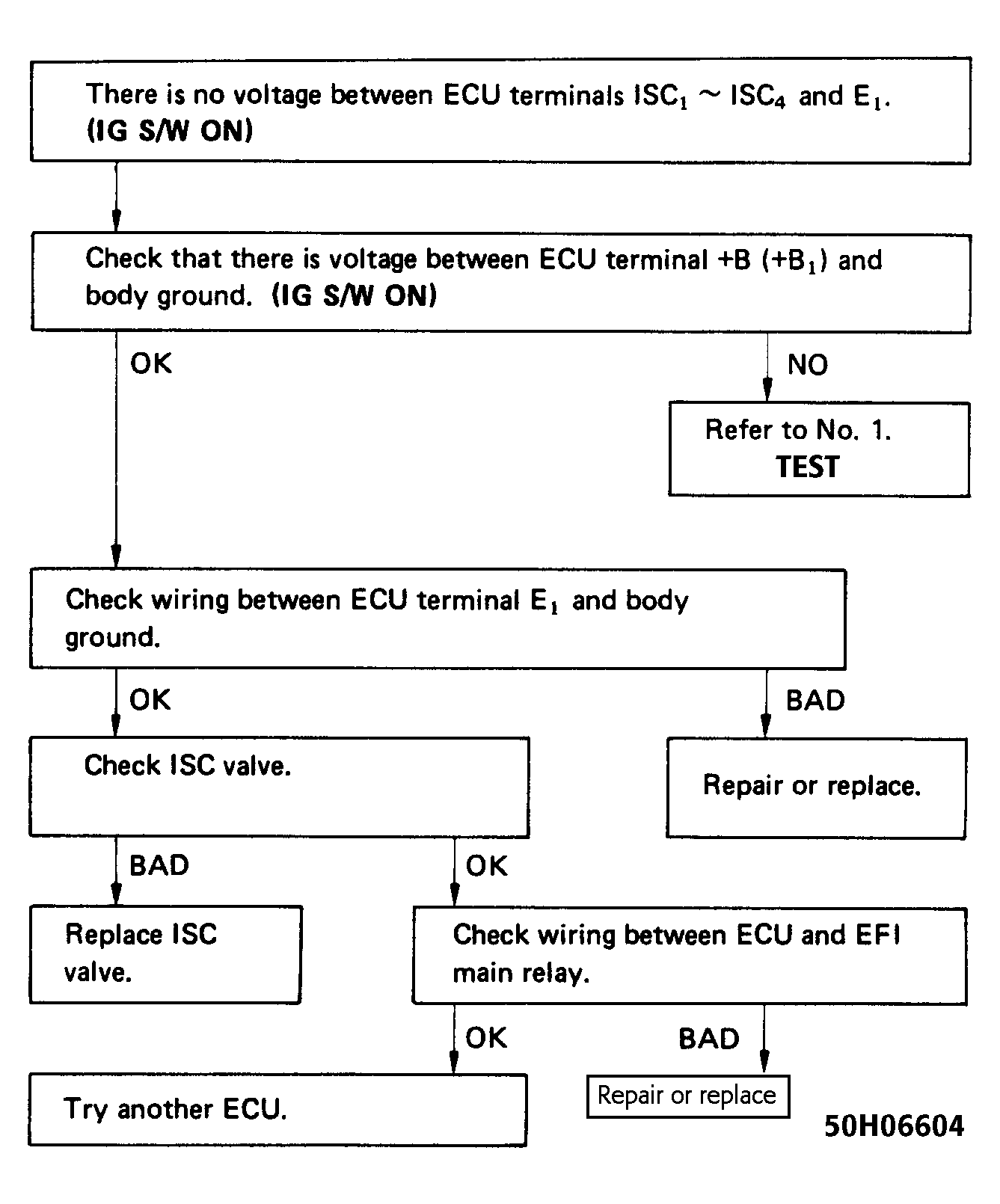

Fig 2: No. 12 Test Flow Chart, ISC Valve Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: No. 12 Test, ISC Valve Check

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
