No. 2 Test, Code 12, 13, 14, Ignition & Rpm Signal
No. 2 Test, Code 12, 13, 14, Ignition & Rpm Signal

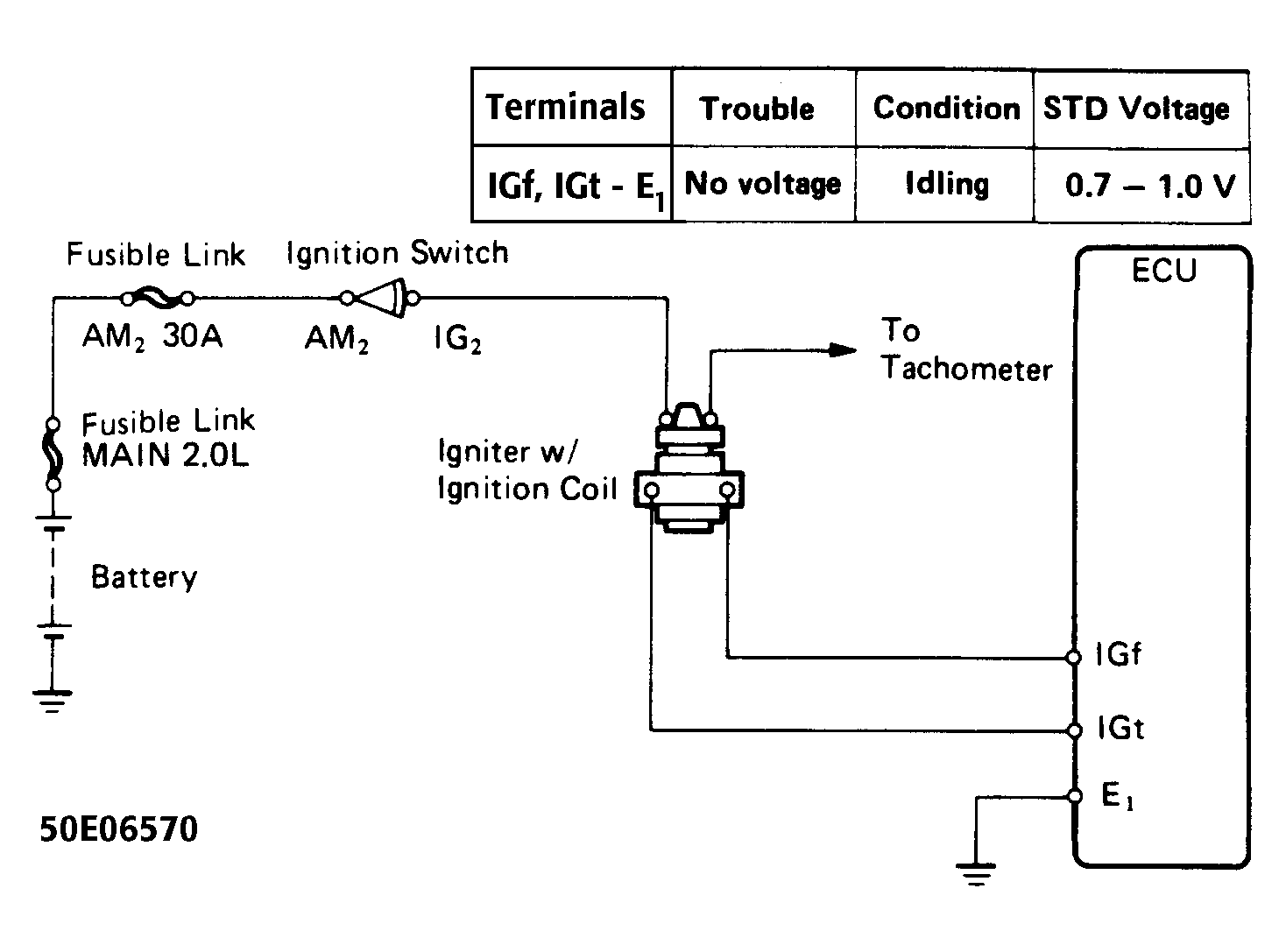

Fig 1: No. 2 Test, Code 12, 13, 14 Schematic, Ignition & RPM Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

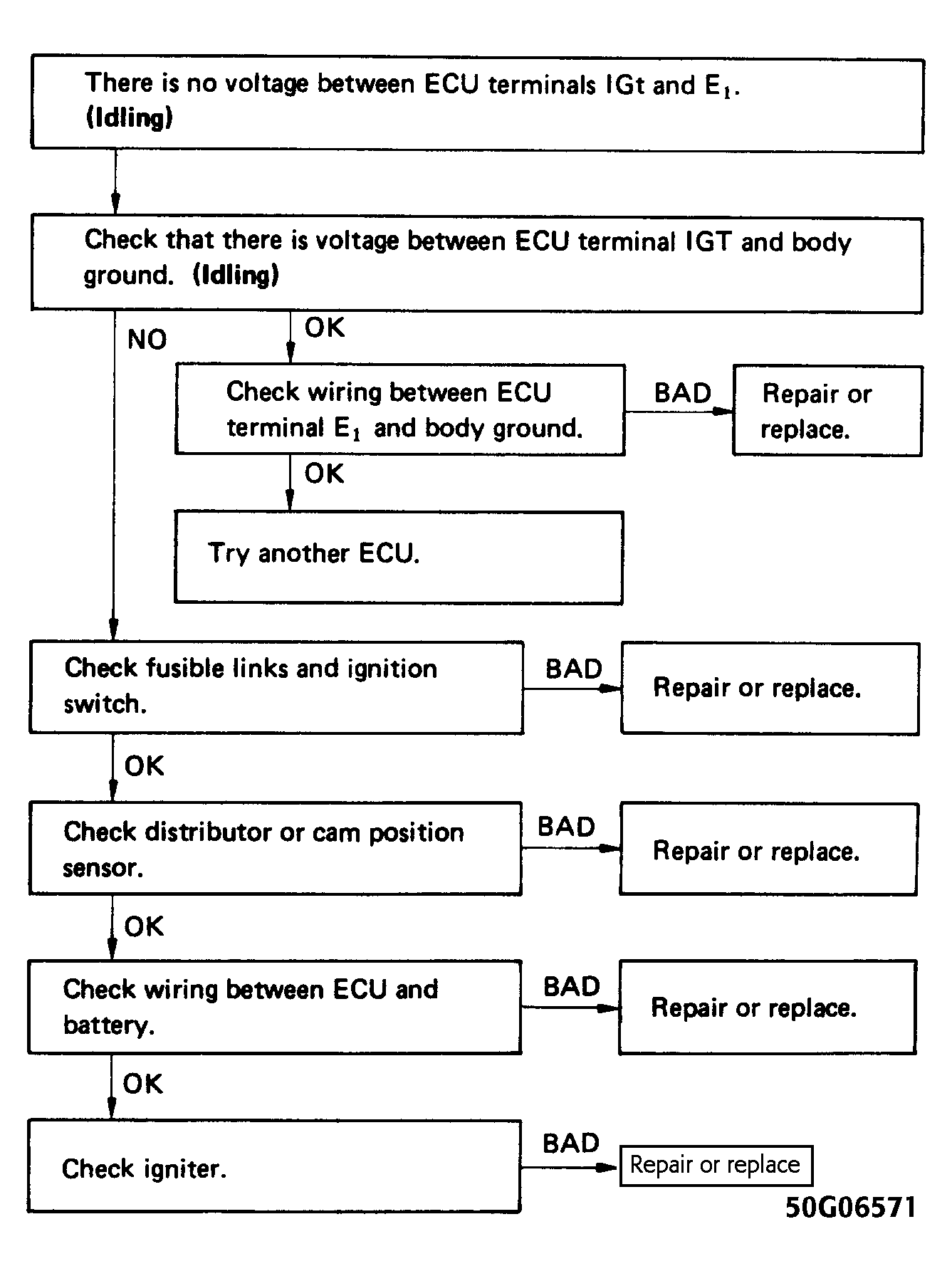

Fig 2: No. 2 Test, Code 12, 13, 14 Flow Chart, Ignition & RPM Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
