No. 8 Test, Code 71, EGR System — 1988 Toyota Supra 7M-GTE, Automatic Service Manual ~ FixVault

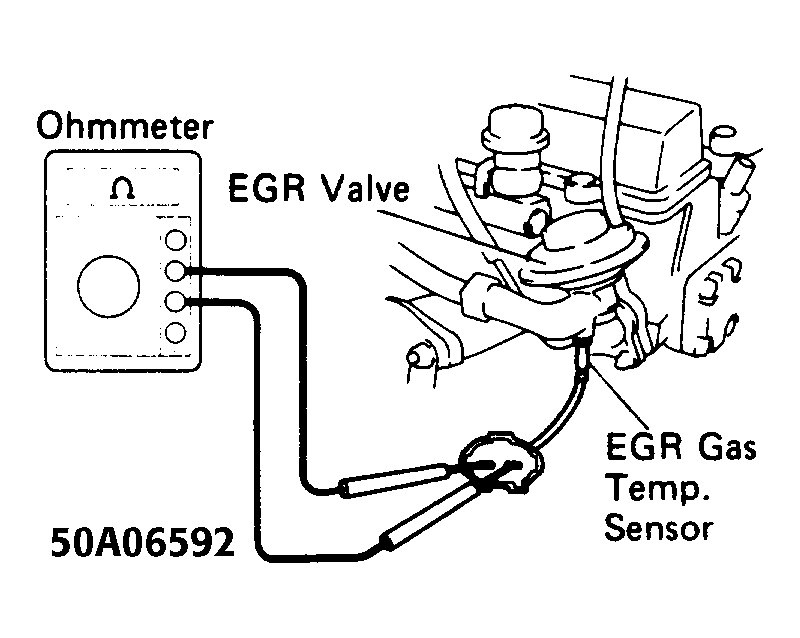

Fig 1: No. 8 Test, Code 71, EGR System (Non-Turbo, Calif.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

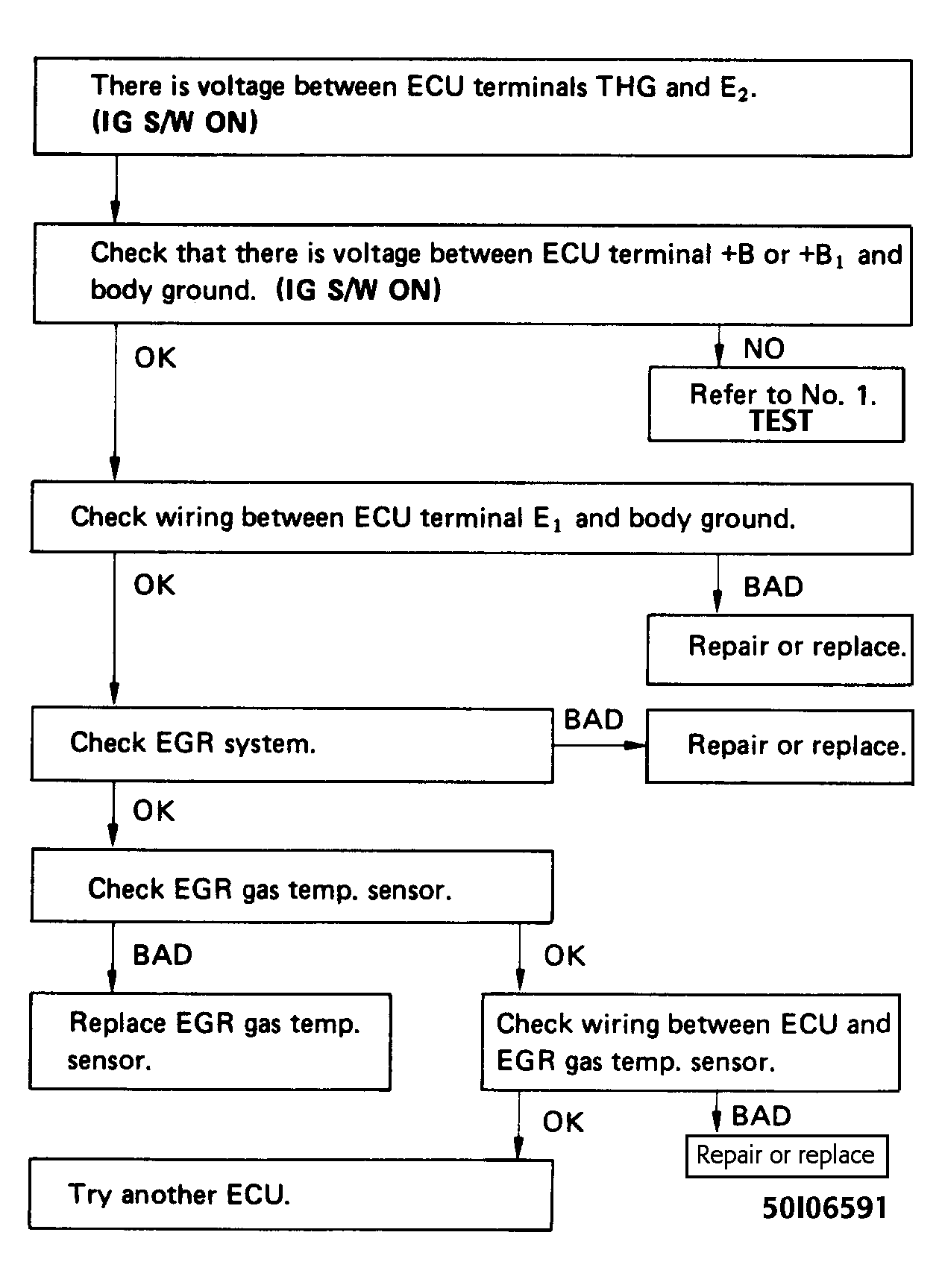

Fig 2: No. 8 Test, Code 71, EGR System (Non-Turbo, Calif.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: No. 8 Test, Code 71, EGR System (Non-Turbo, Calif.)
