No. 16 Test, O2 Sensor Circuit

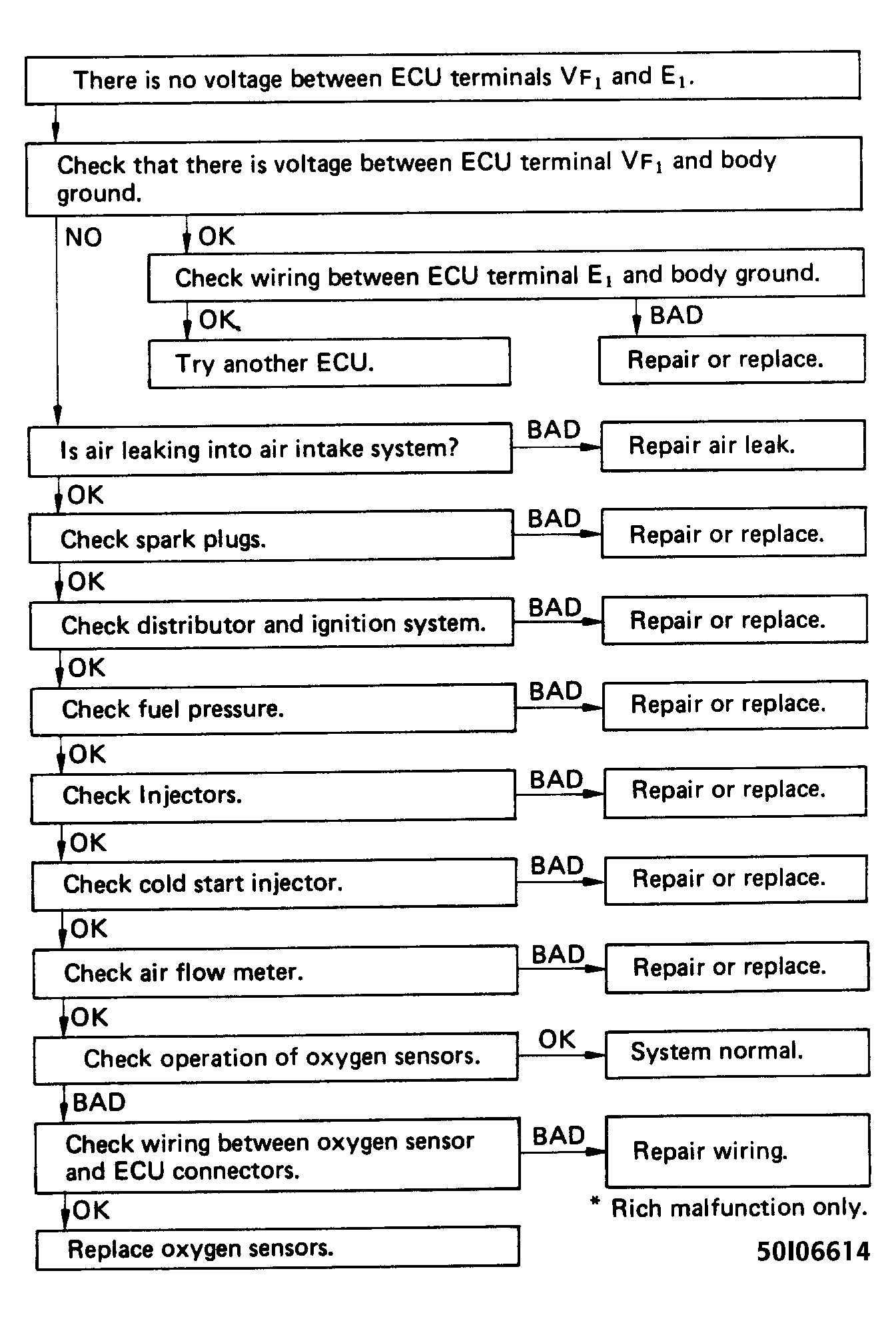

Fig 1: No. 16 Test, O2 Sensor Circuit (Non-Turbo, Calif.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

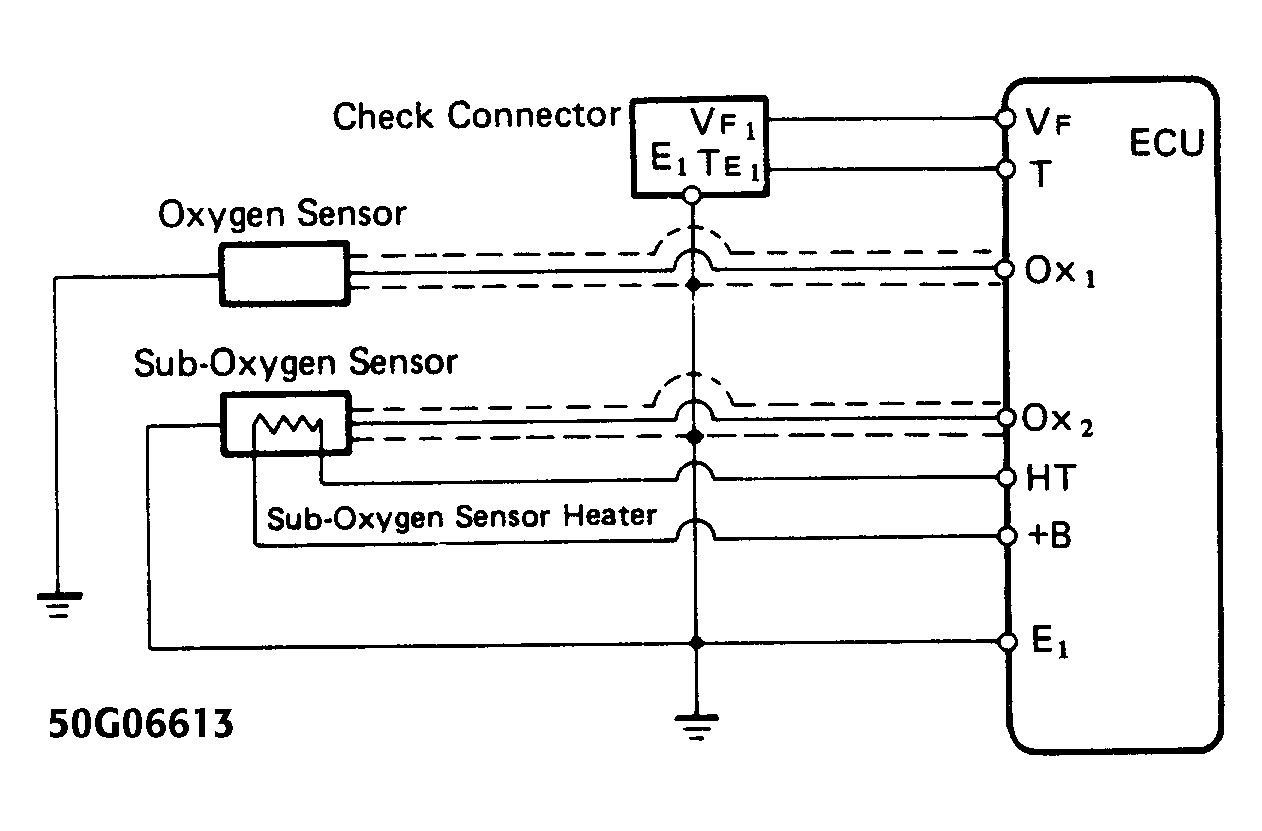

Fig 2: No. 16 Test, O2 Sensor Circuit (Non-Turbo, Calif.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: No. 16 Test, O2 Sensor Circuit (Non-Turbo, Calif.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
