No. 9 Test, Code 43 (Code 10 On Turbo), Starter Signal

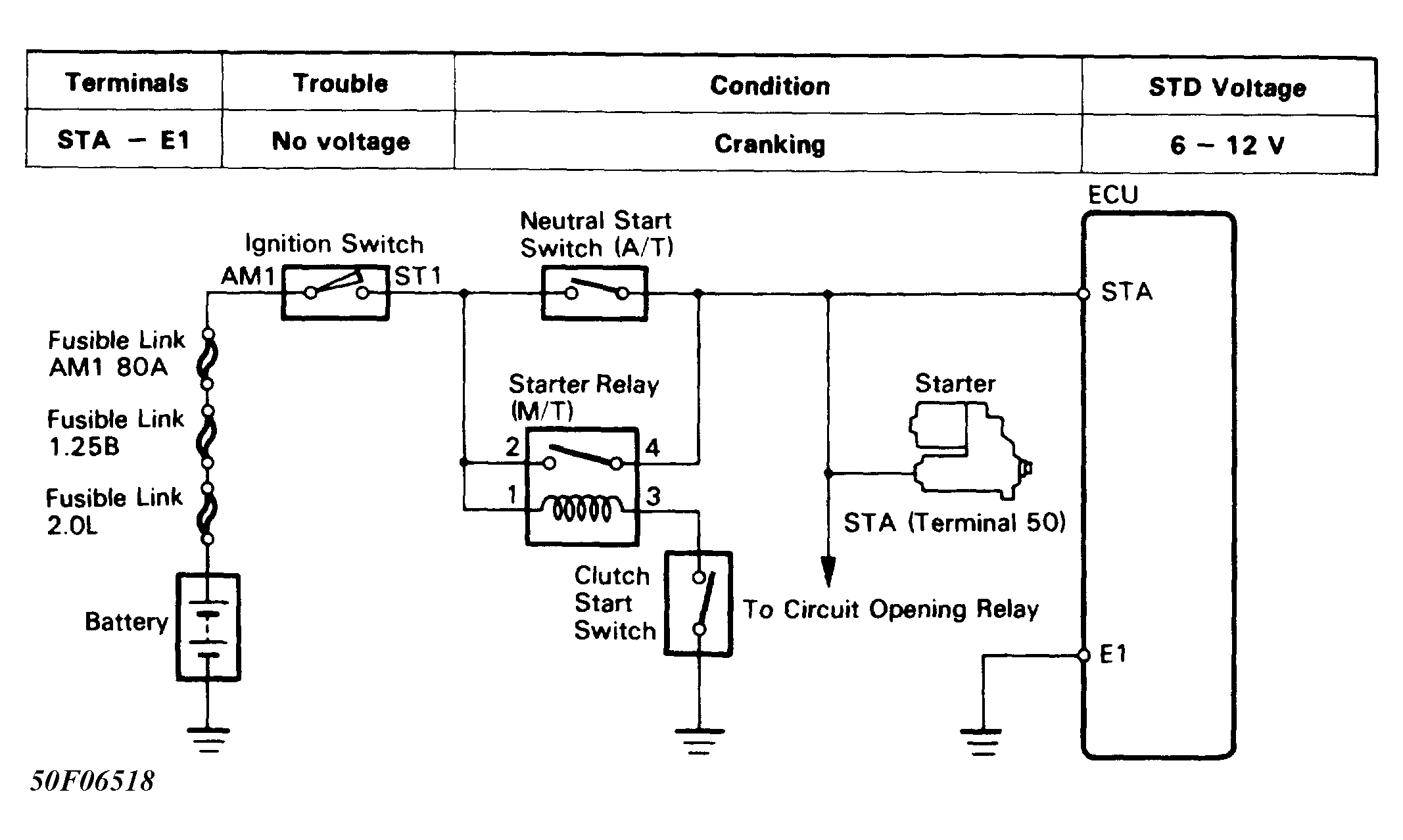

Fig 1: No. 9 Test, Code 43 Schematic (Code 10 on Turbo), Starter Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

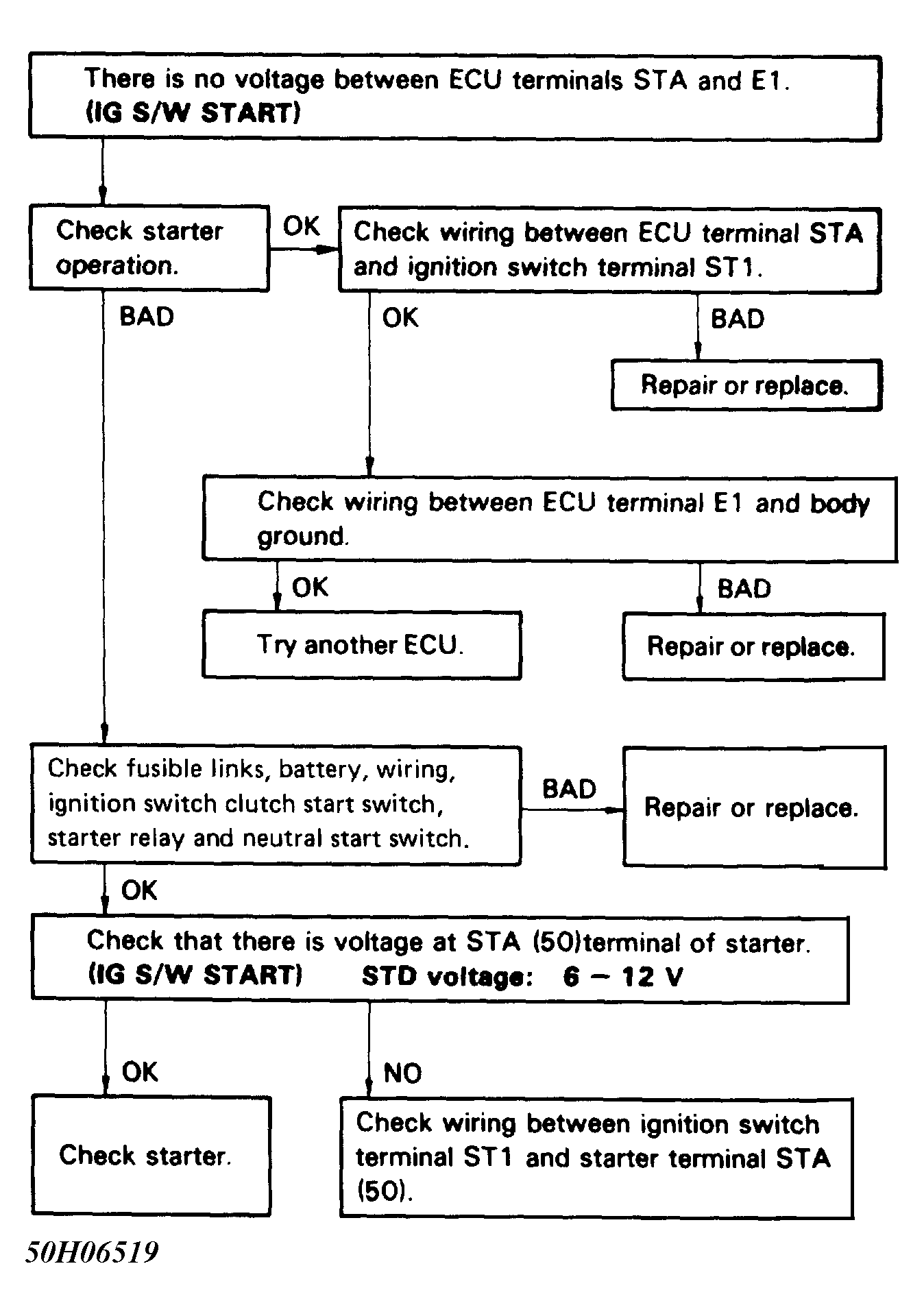

Fig 2: No. 9 Test, Code 43 Flow Chart (Code 10 on Turbo), Starter Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
