1989 Ecu Terminal Identification

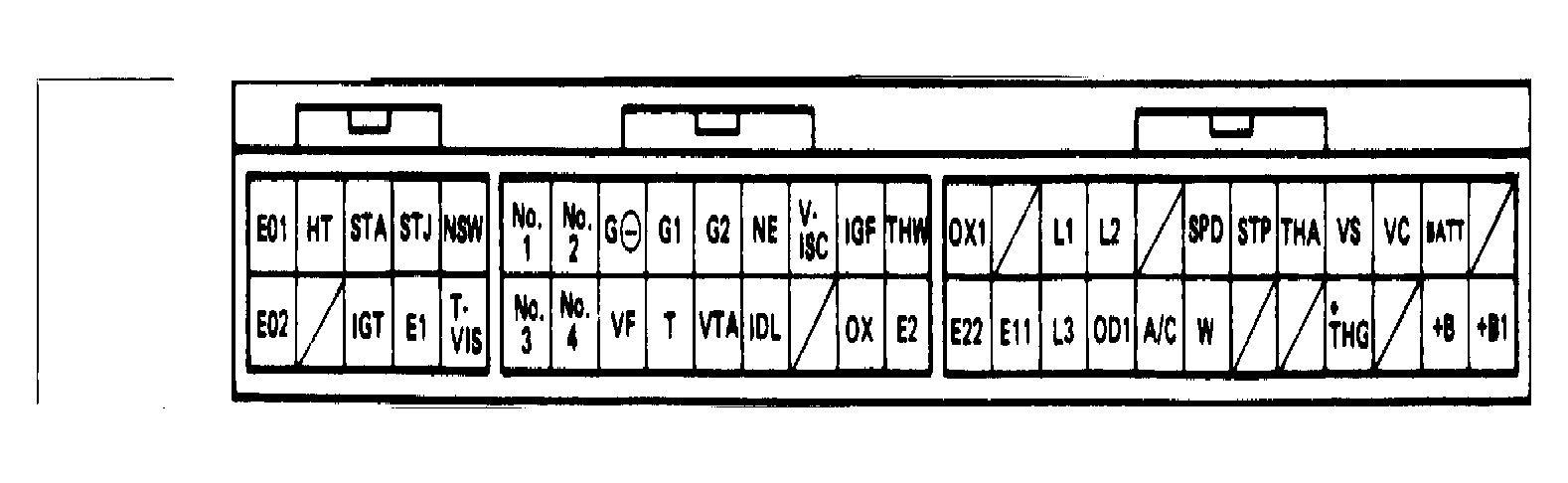

Fig 1: 3S-FE ECU Terminal Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

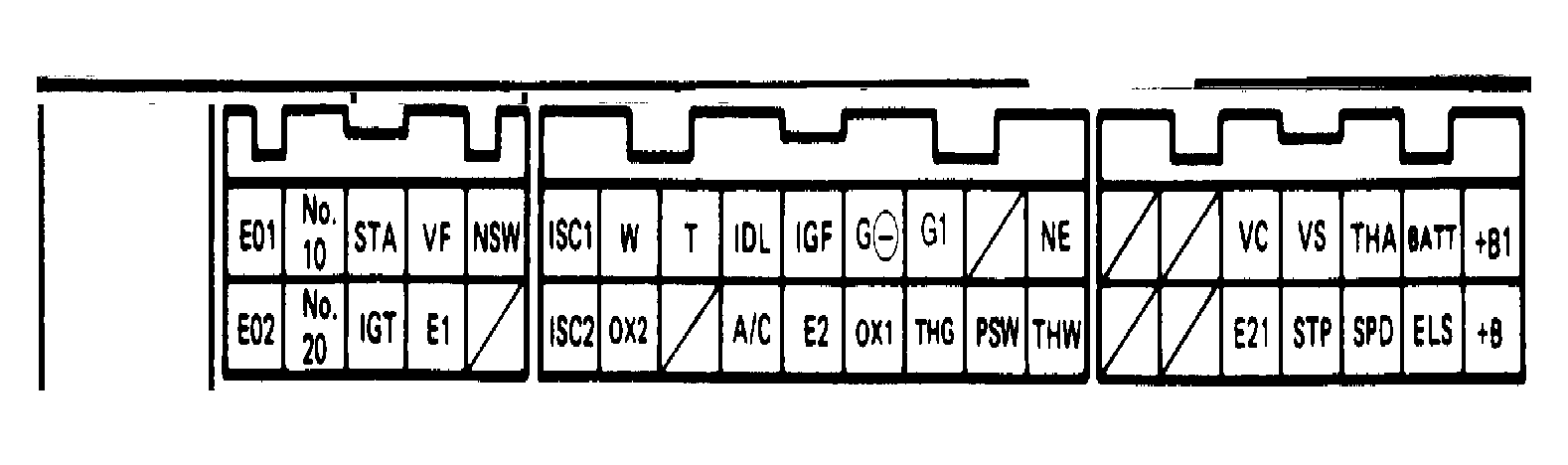

Fig 2: 3S-GE ECU Terminal Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: "THW" is for California models only.

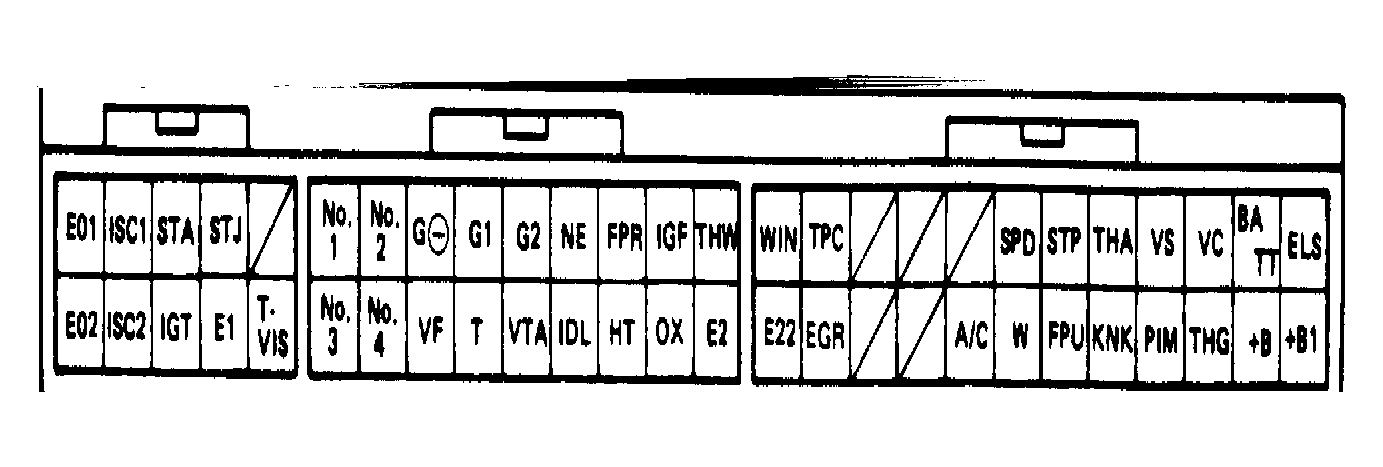

Fig 3: 3S-GTE ECU Terminal Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: "T-VIS" may be "S/TH" (Variable Induction System VIS).
