Test 5 Or Code 22 - Coolant Temperature Sensor Signal

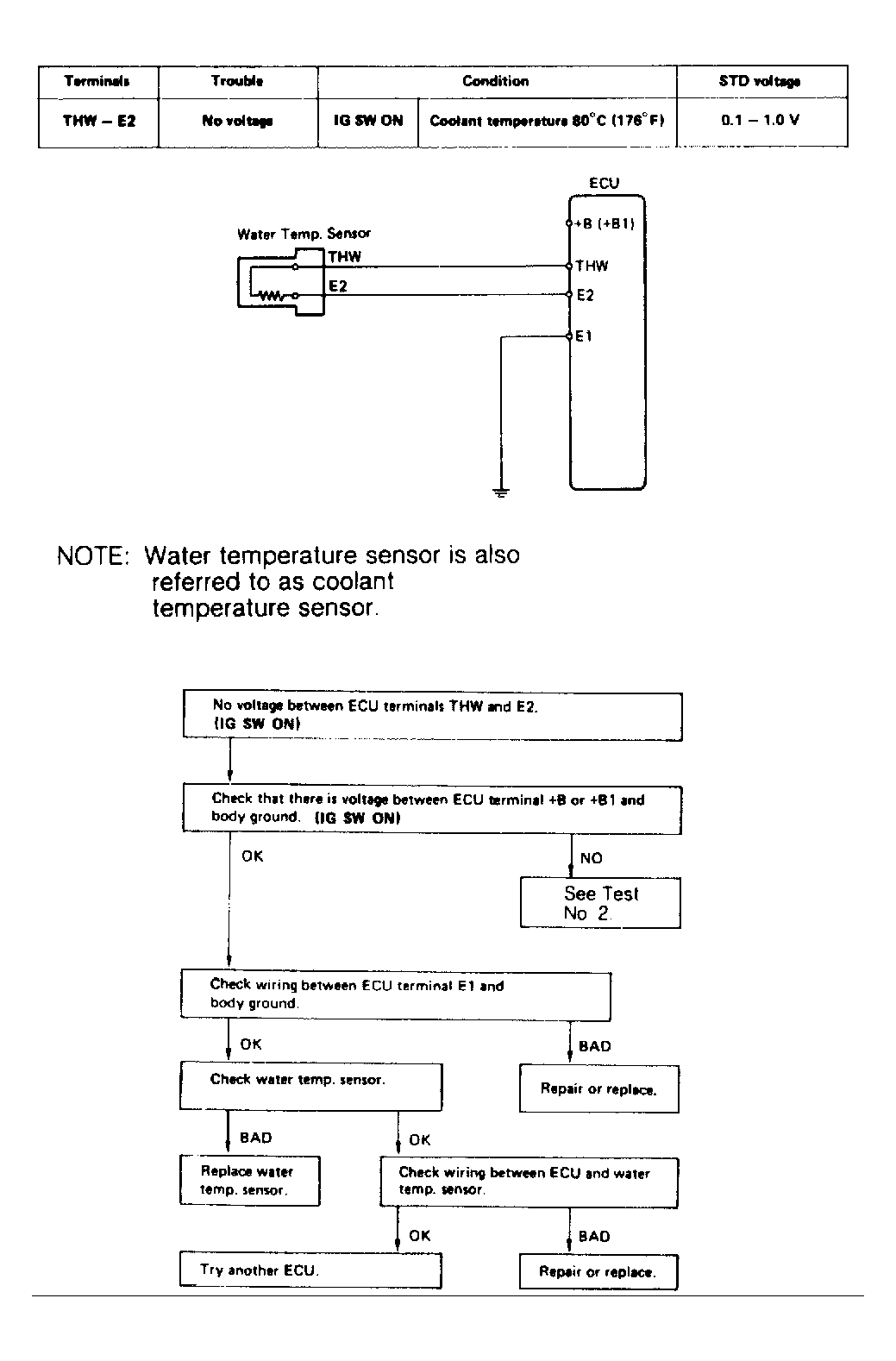

Fig 1: Test No.5 or Code 22 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
