Test 3 Or Code 12 - Rpm Signal (4A-F)

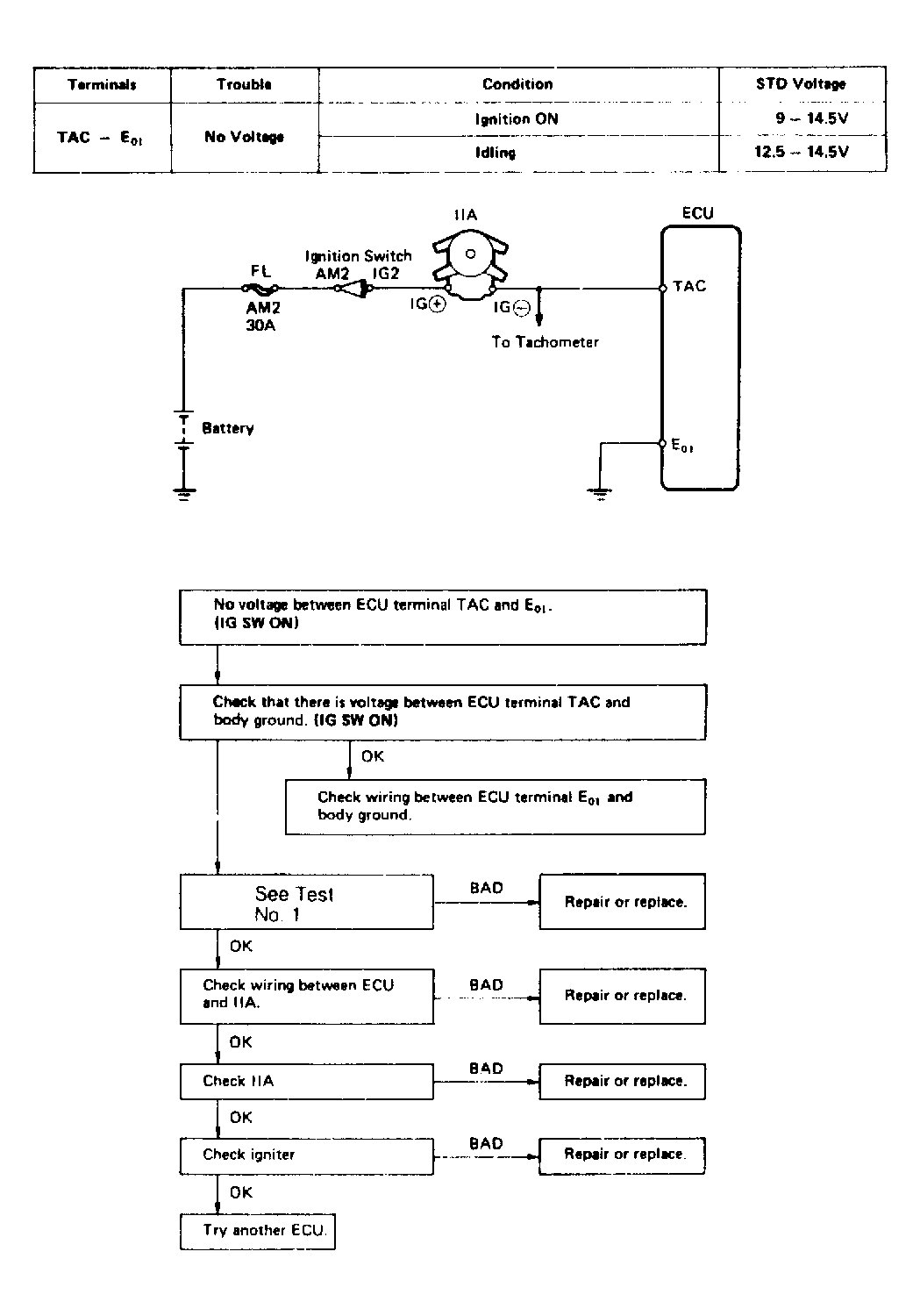

Fig 1: 4A-F Test No. 3 or Code 12 Diagram & Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: To check ignition system components, see IGNITION SYSTEMS under SYSTEM/COMP TESTS article.
