Test 9 Or Code 71 - EGR System Malfunction
Test 9 Or Code 71 - EGR System Malfunction

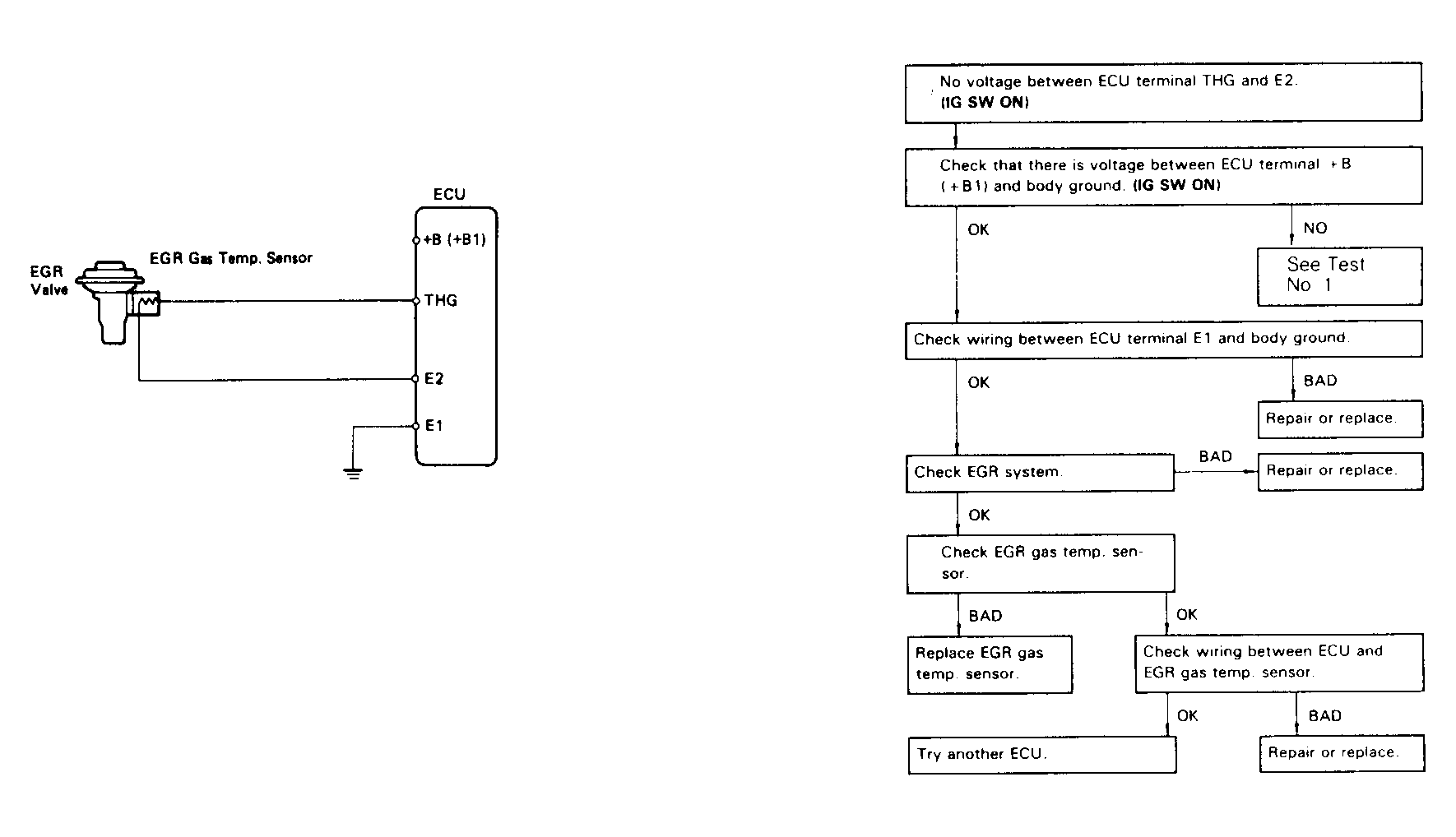

Fig 1: Test No.9 or Code 71 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
