Component Locations

For component locations, see Fig 1-Fig 3 .

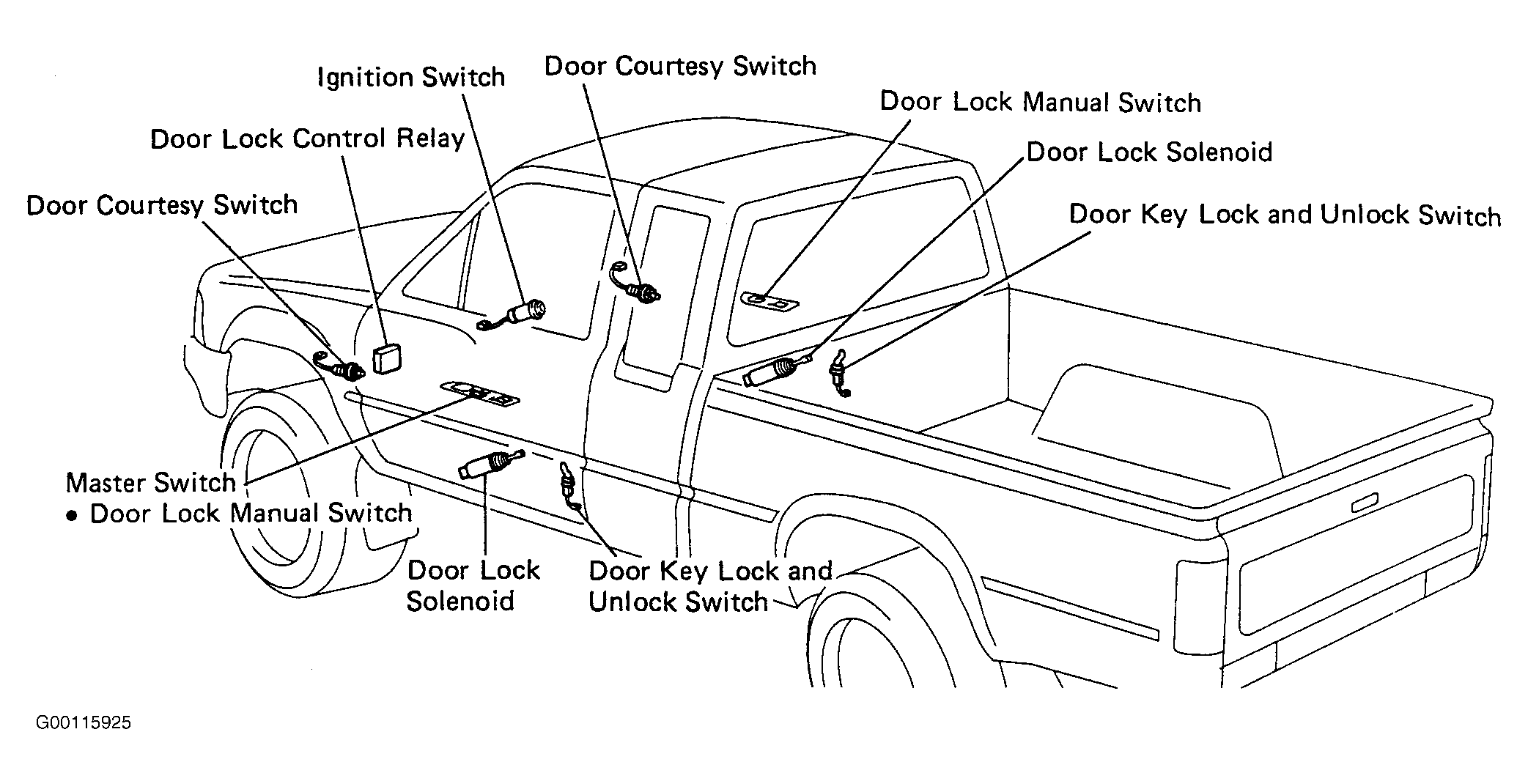

Fig 1: Locating Power Door Lock Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

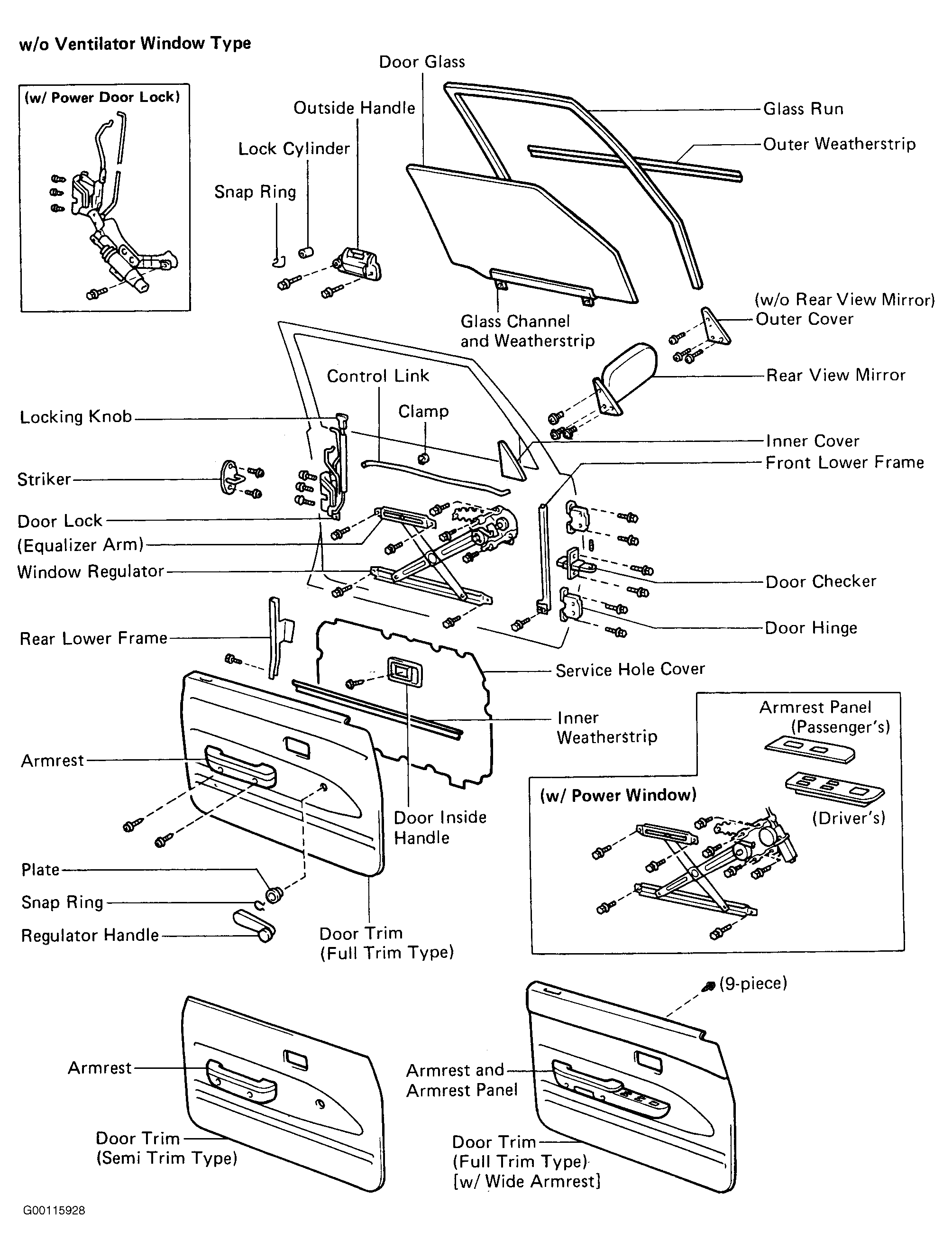

Fig 2: Identifying Front Door Components (Without Ventilation Window)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

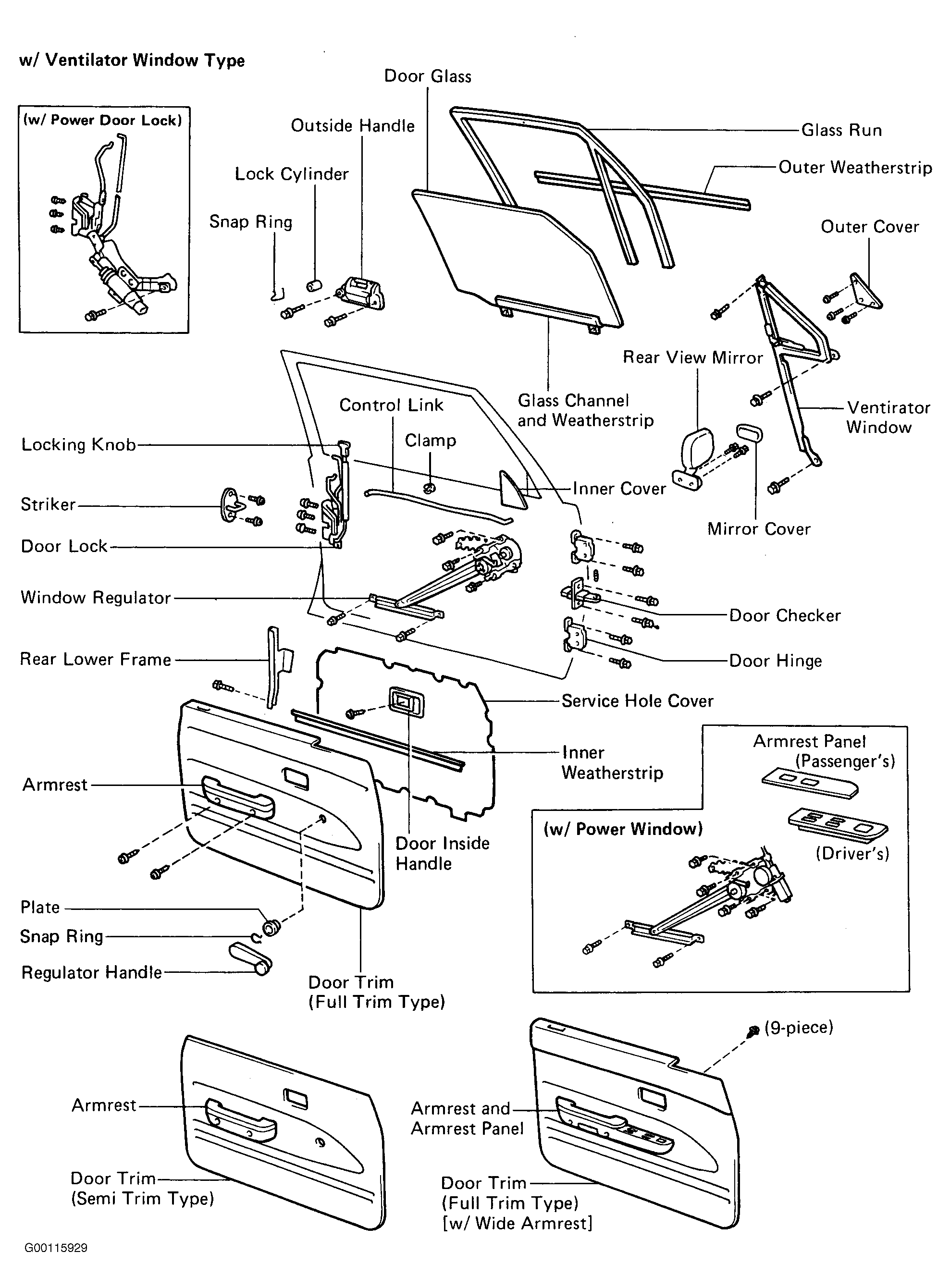

Fig 3: Identifying Front Door Components (With Ventilation Window)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
