Engine Controls - System/Component Tests - 4-CYL CARBURETED
›
Air Suction System
›
Cold Enrichment Breaker System No. 1
›
Notes
Cold Enrichment Breaker System No. 1: Notes
NOTE:

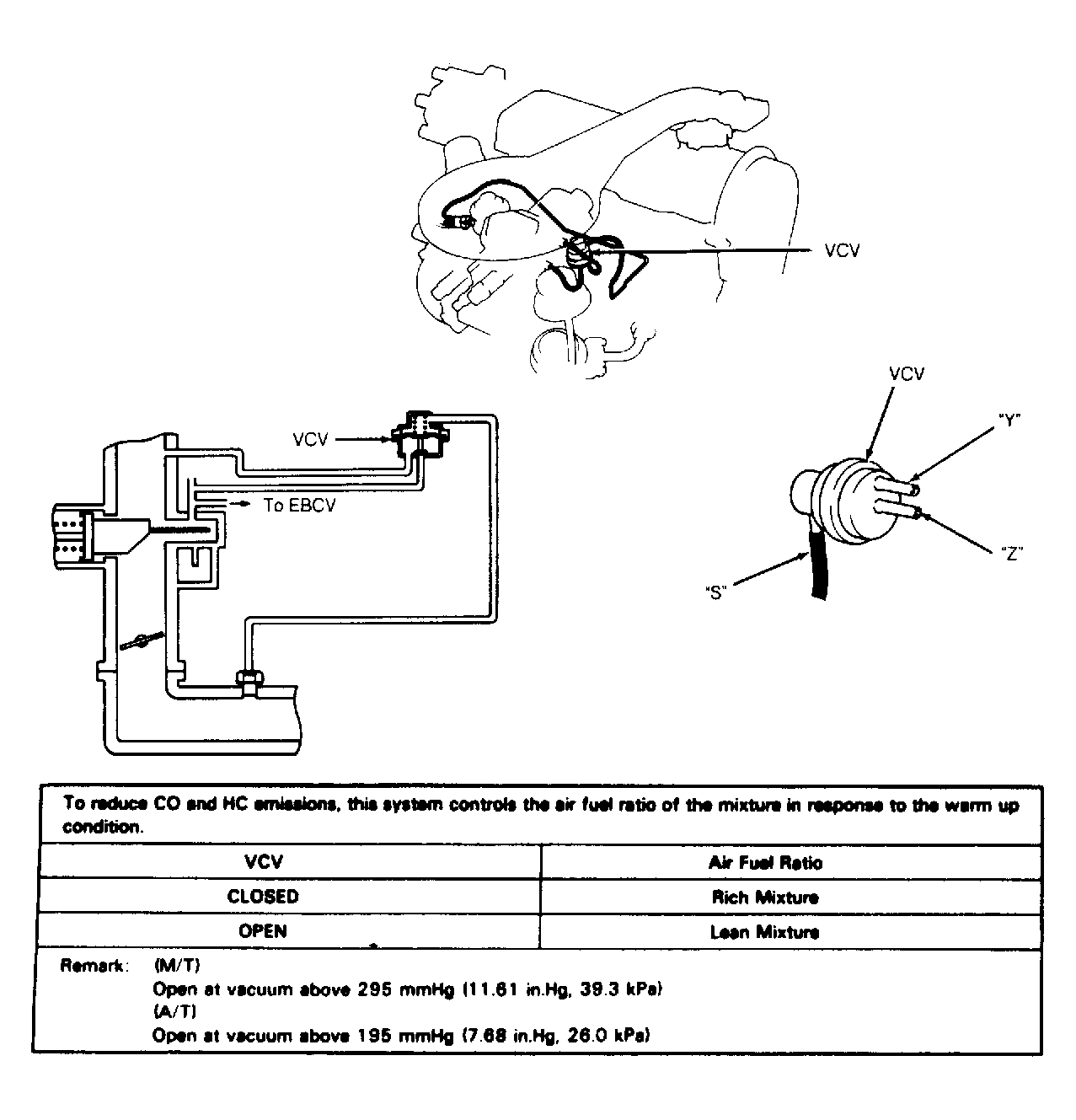

When diagnosing a cold enrichment breaker problem, refer to
Figure
for system components and operating parameters.
