Engine Controls - System/Component Tests - 4-CYL CARBURETED: Testing: RESTRICTOR: Tercel

Check restrictor by blowing air from each side. Check for blockage. Replace valve as required.

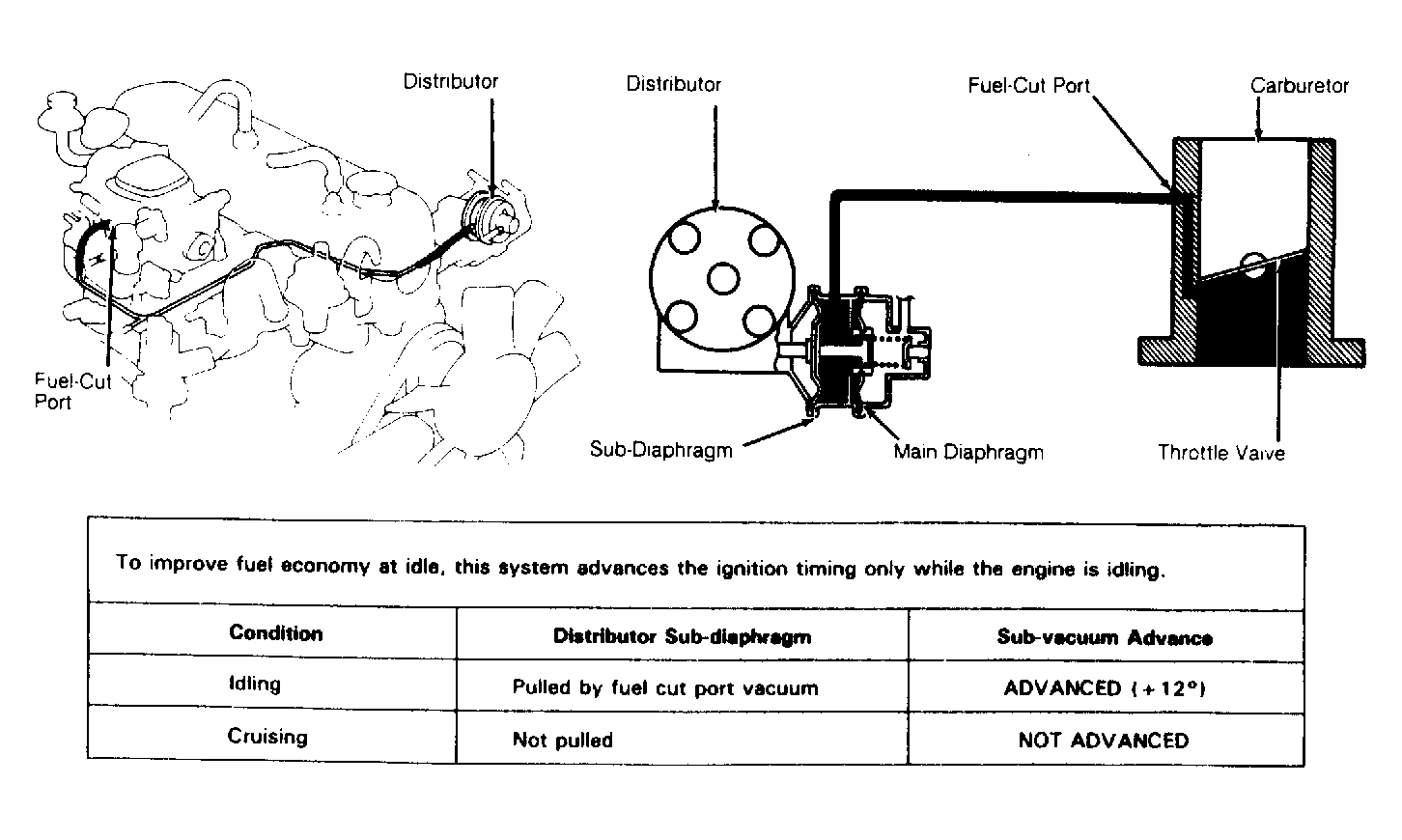

NOTE: When diagnosing Idle Advance System, refer to Figure for system components and operating parameters.
