Home › Toyota › 1989 › Pickup Base › Repair and Diagnosis › Engine Performance › System › Engine Controls - System/Component Tests - 4-CYL CARBURETED › Throttle Controls › Notes

Throttle Controls: Notes

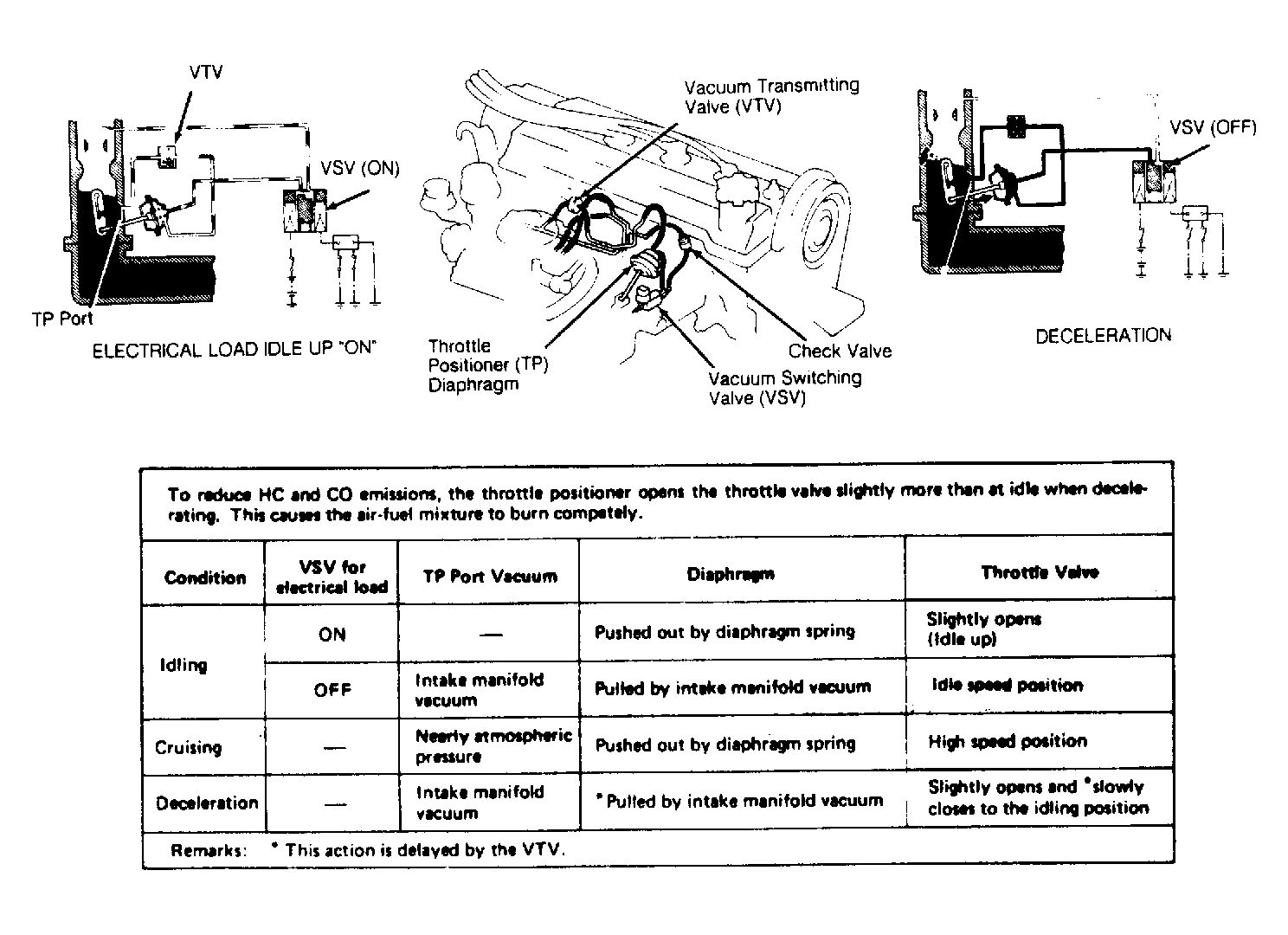

NOTE: When diagnosing a throttle positioner problem, refer to Figure for system components and operating parameters.
