Timing Control Systems: Notes

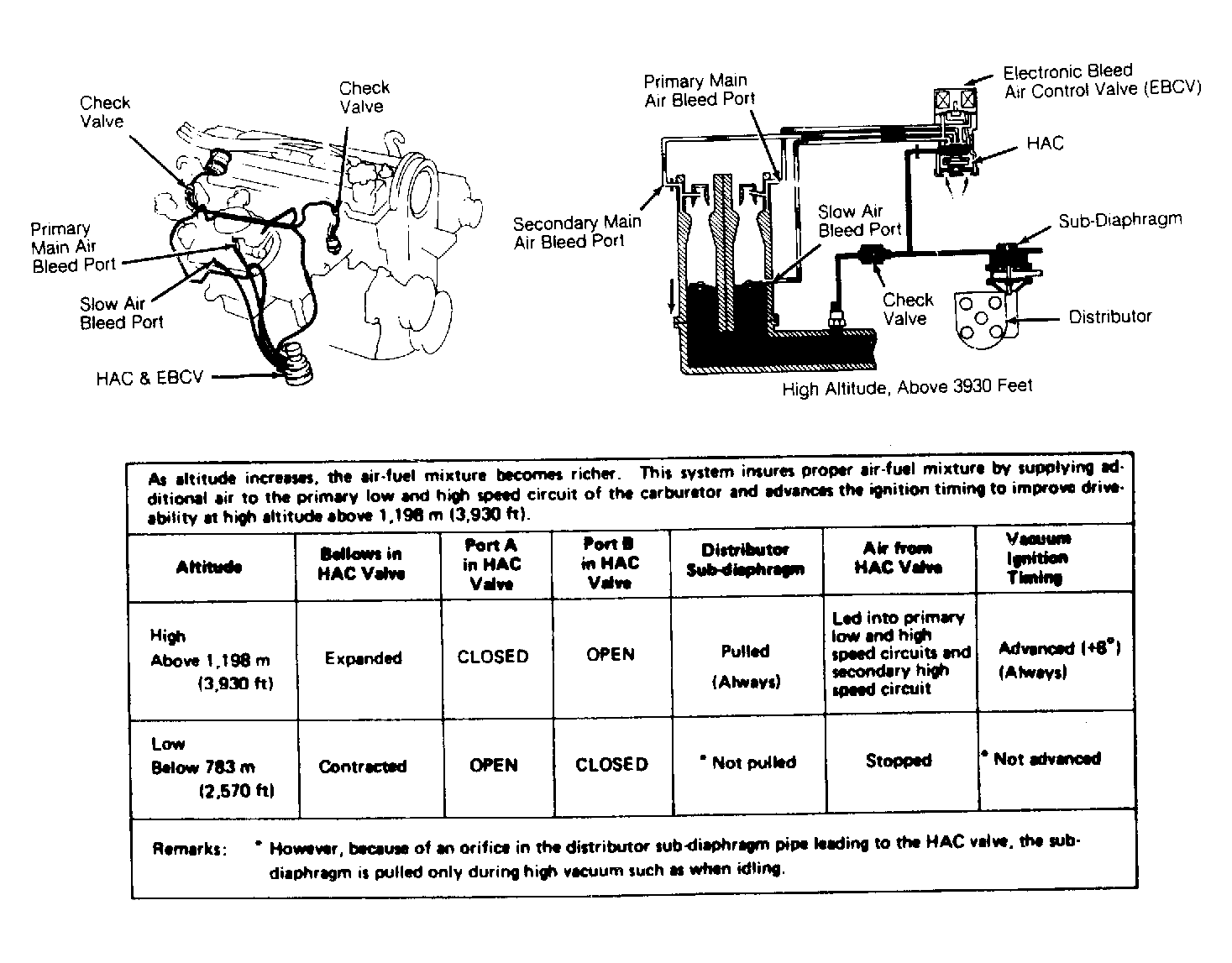

NOTE: When diagnosing a HAC system problem, refer to Figs. Figure, Figure and Figure for system components and operating parameters.
