Diagnostic Circuit Check

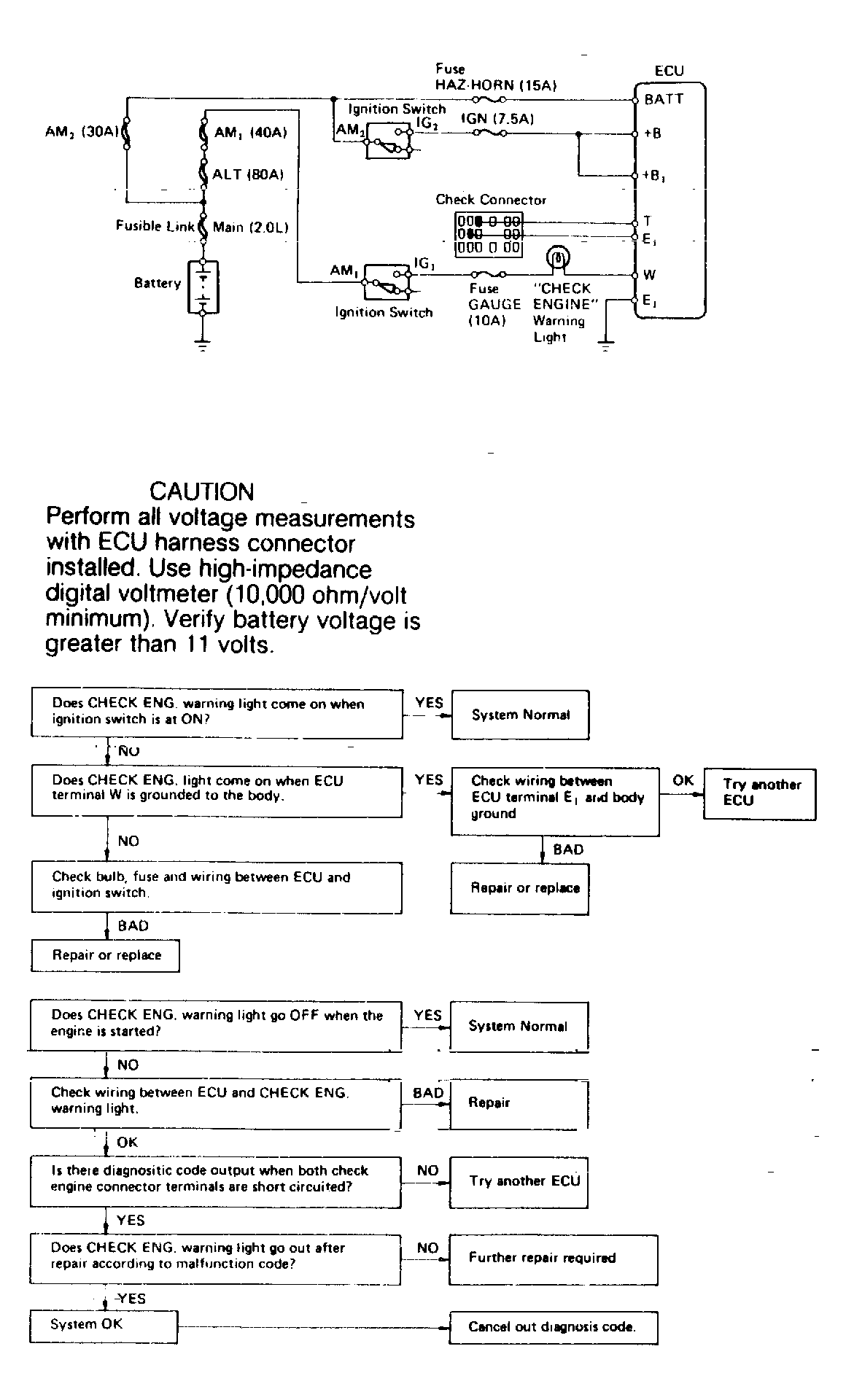

Fig 1: Diagnostic Circuit Check (22R)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CAUTION: Perform all voltage measurements with ECU harness connector install. Use high-impedance digital voltmeter (10,000 ohm/volt minimum). Verify battery voltage is greater than 11 volts.
