Test 2 - Ecu Power Source
Test 2 - Ecu Power Source

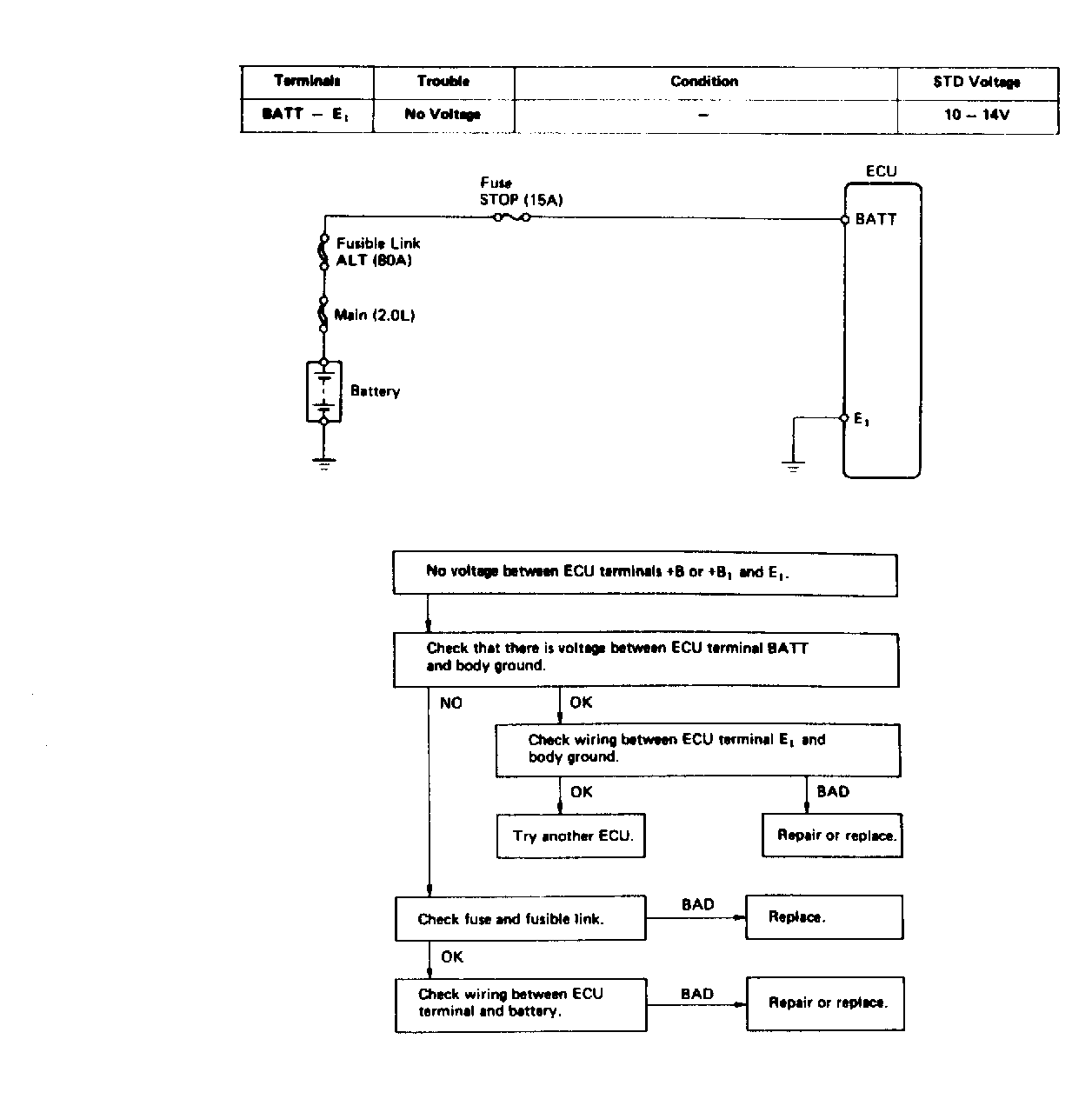

Fig 1: Test 2 Diagram & Flow Chart (22R)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
