Test 6 Or Code 31 - Vacuum Switch Signal
Test 6 Or Code 31 - Vacuum Switch Signal

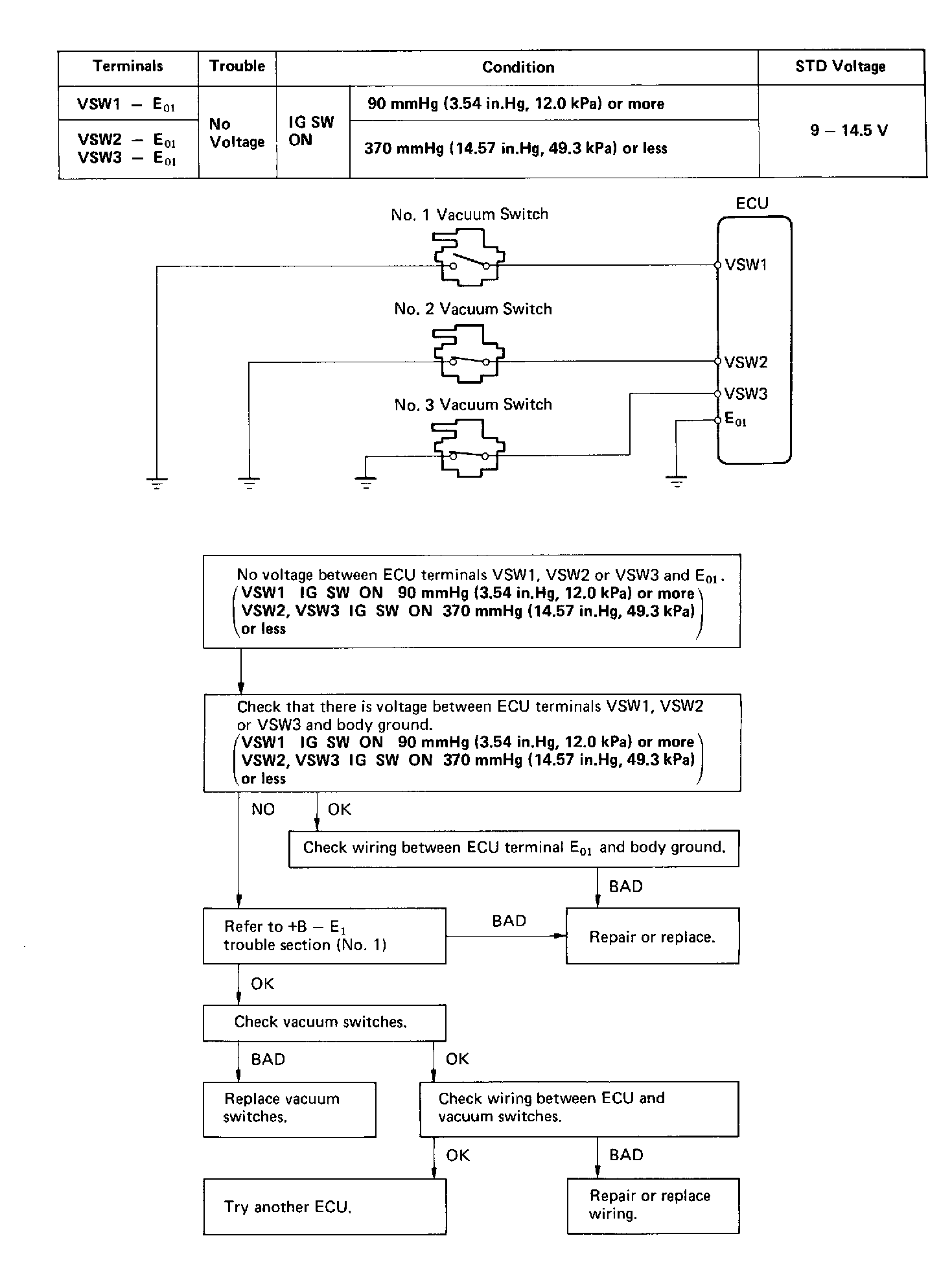

Fig 1: Test 6 or Code 31 Diagram & Flow Chart (22R)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
