Test 7 Or Code 71 - EGR System Malfunction
Test 7 Or Code 71 - EGR System Malfunction

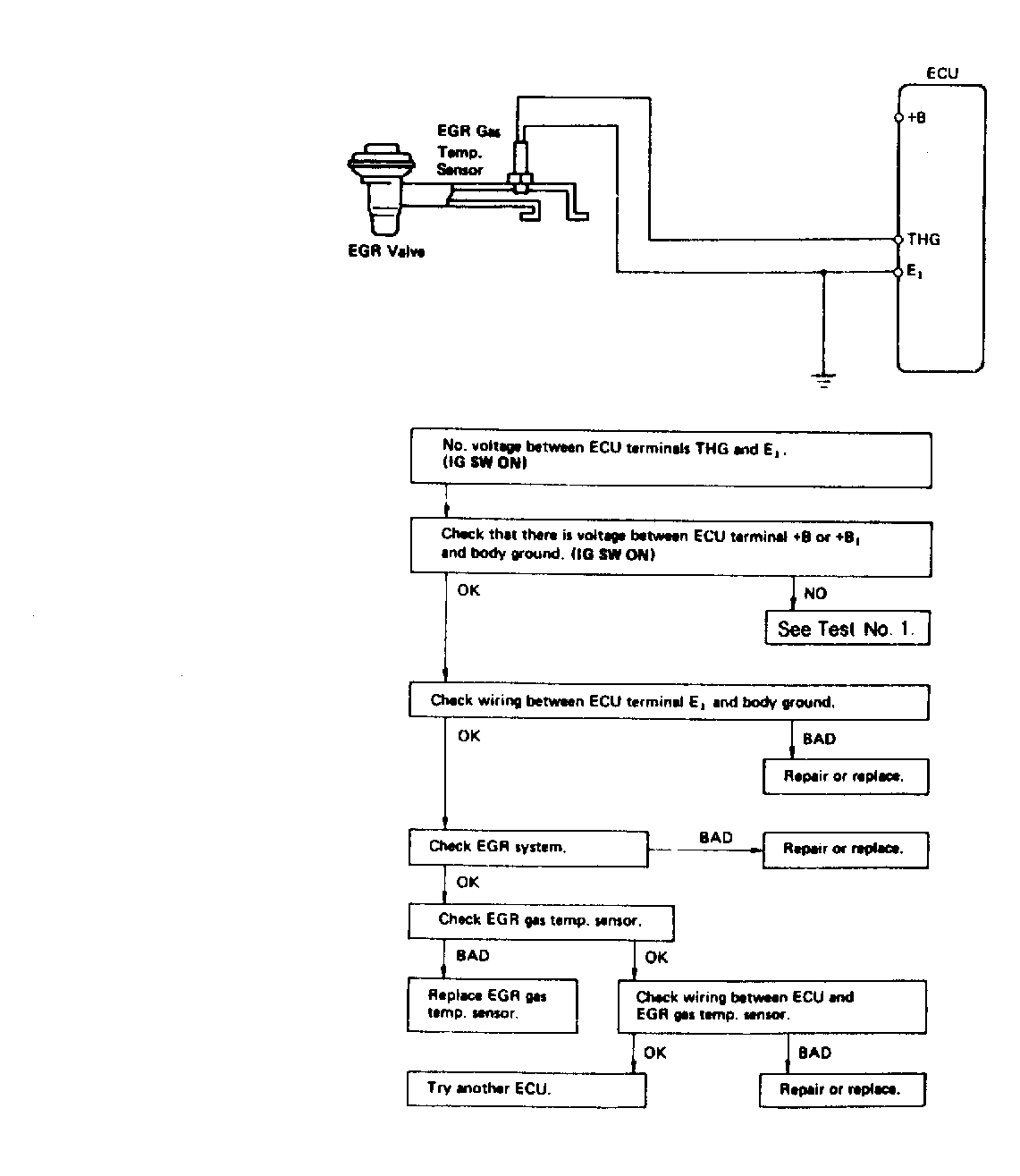

Fig 1: Test 7 or Code 71 Diagram & Flow Chart (22R)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
