Engine Controls - Tests W/Codes - 4-CYL CARBURETED
›
Test 9 - Charging System Circuit
Test 9 - Charging System Circuit

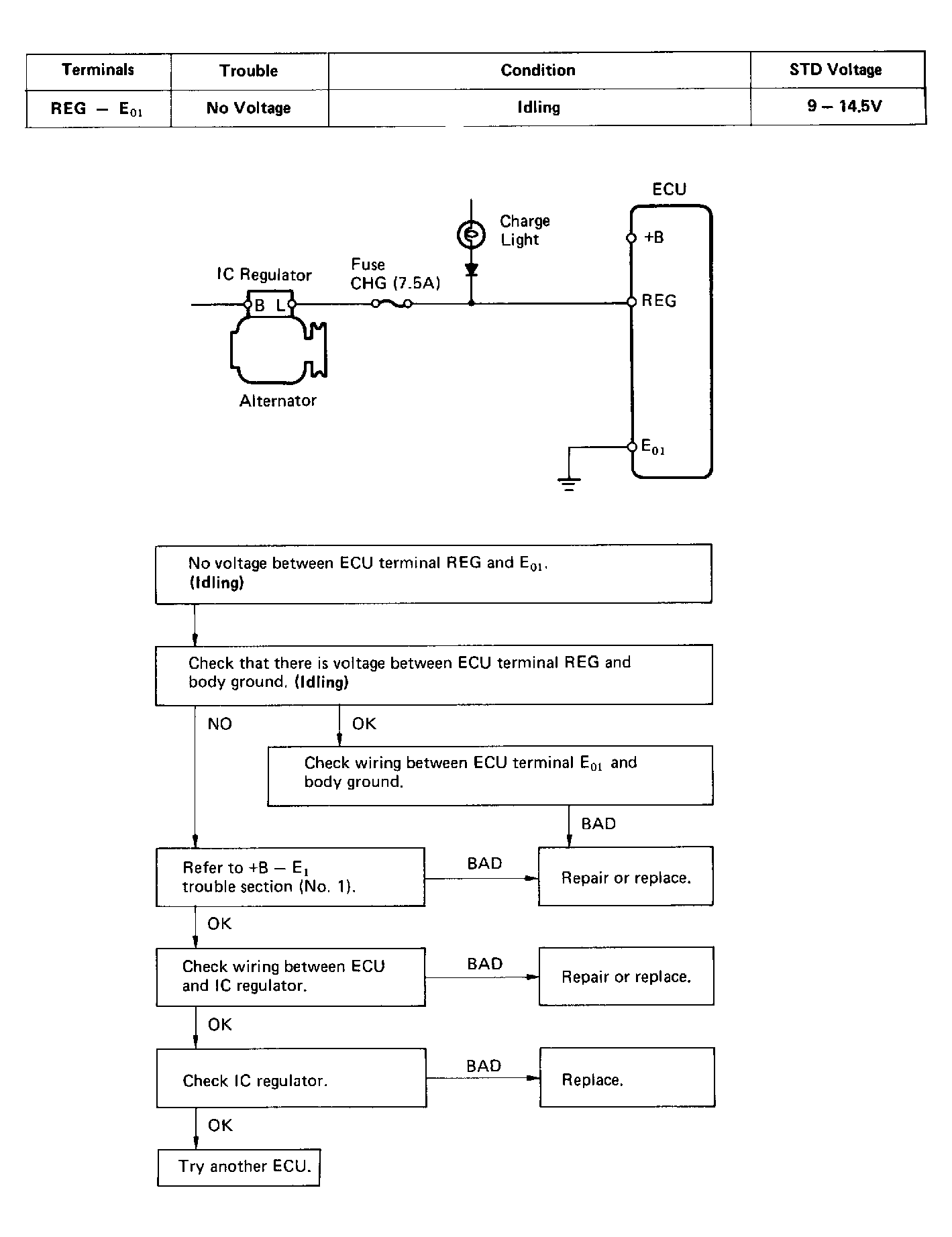

Fig 1: Test 9 Diagram & Flow Chart (22R)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
