Wiring Diagrams: CRESSIDA

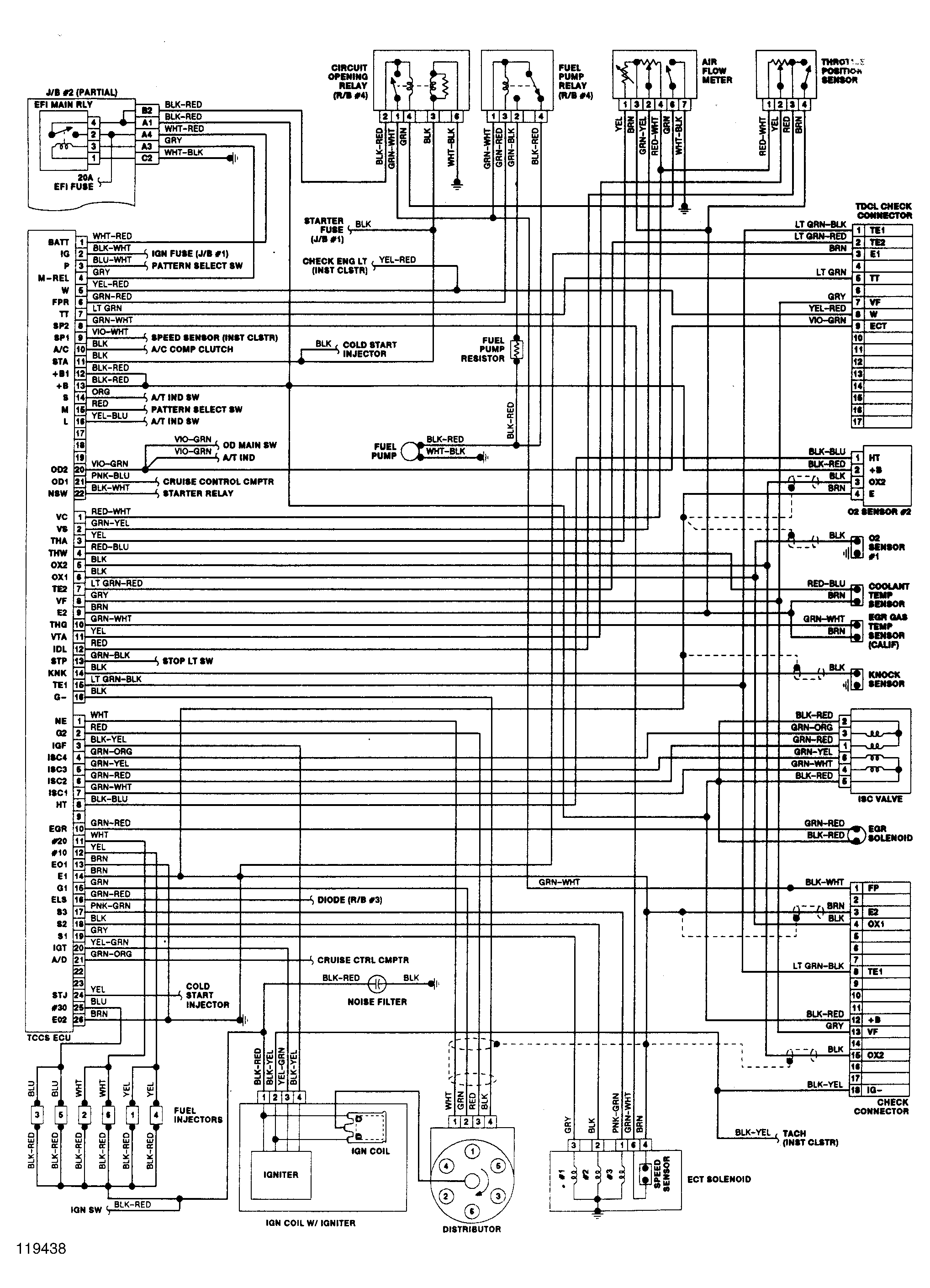

Fig 1: Cressida 7M-GE Engine Wiring Diagram
G119438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
