Cruise Control Computer Circuit

Disconnect the computer. Inspect the connector on wire harness side. See Fig 1 and Fig 2 .

Fig 1: Identifying Wire Harness Side Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

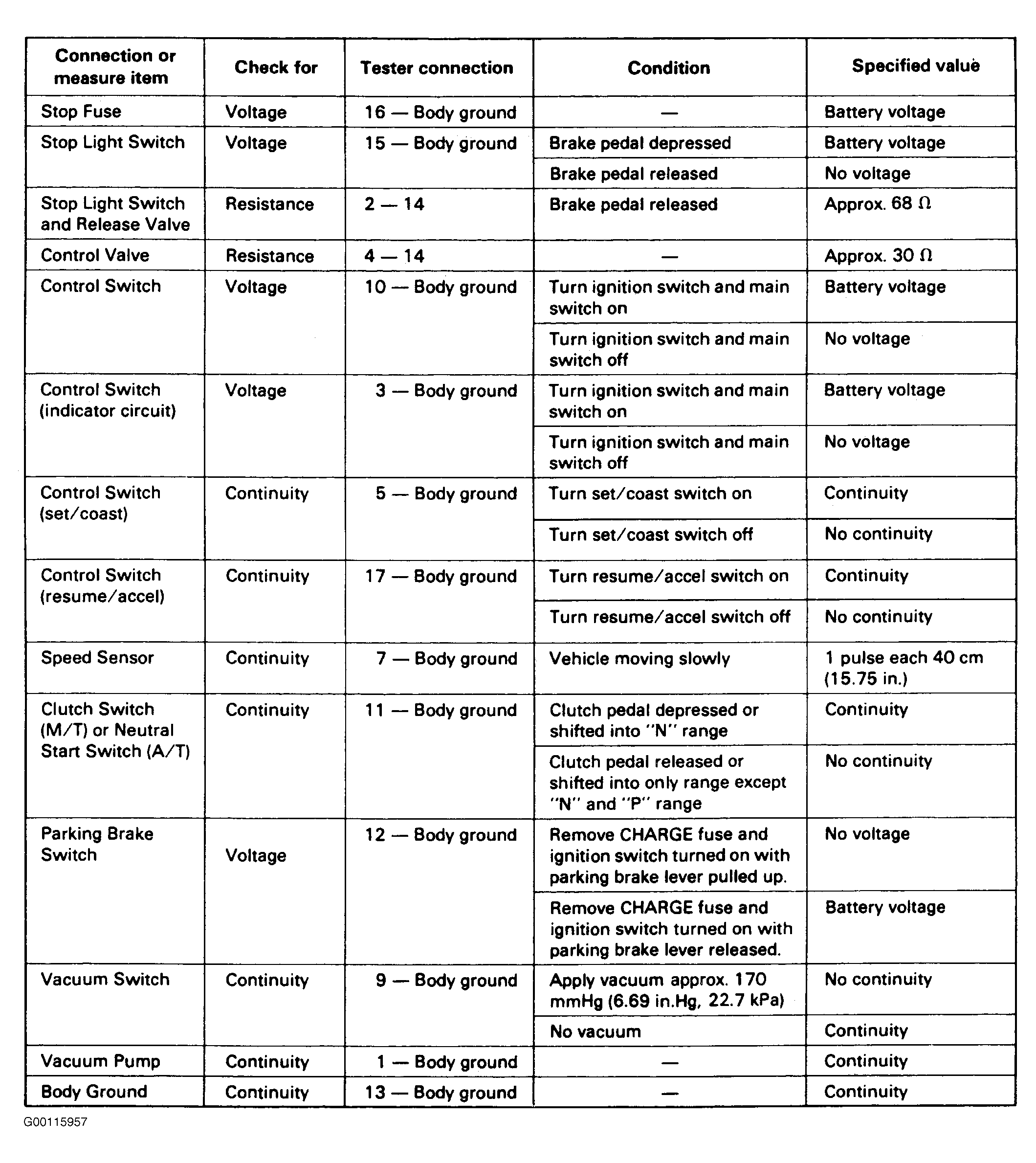

Fig 2: Testing Cruise Control Computer Circuits
