Main Switch

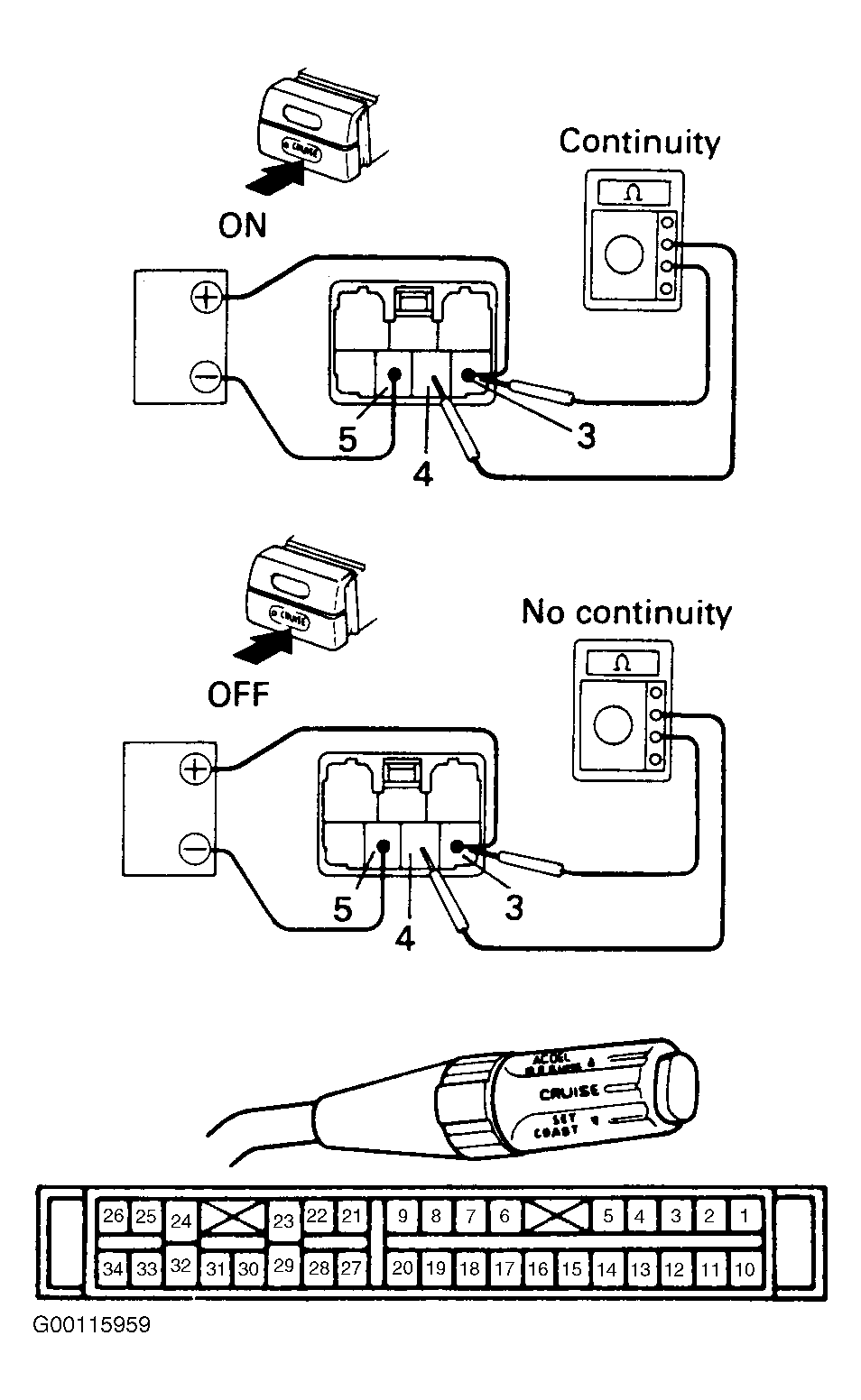

- Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 5. See Fig 1.
- Check that there is continuity between terminals 3 and 4 with the main switch pushed on.
- Check that there is no continuity between terminals 3 and 4 with the main switch pushed off.
- If continuity is not as specified, replace the switch.
