Connector Identification

For connector identification, see Fig 1.

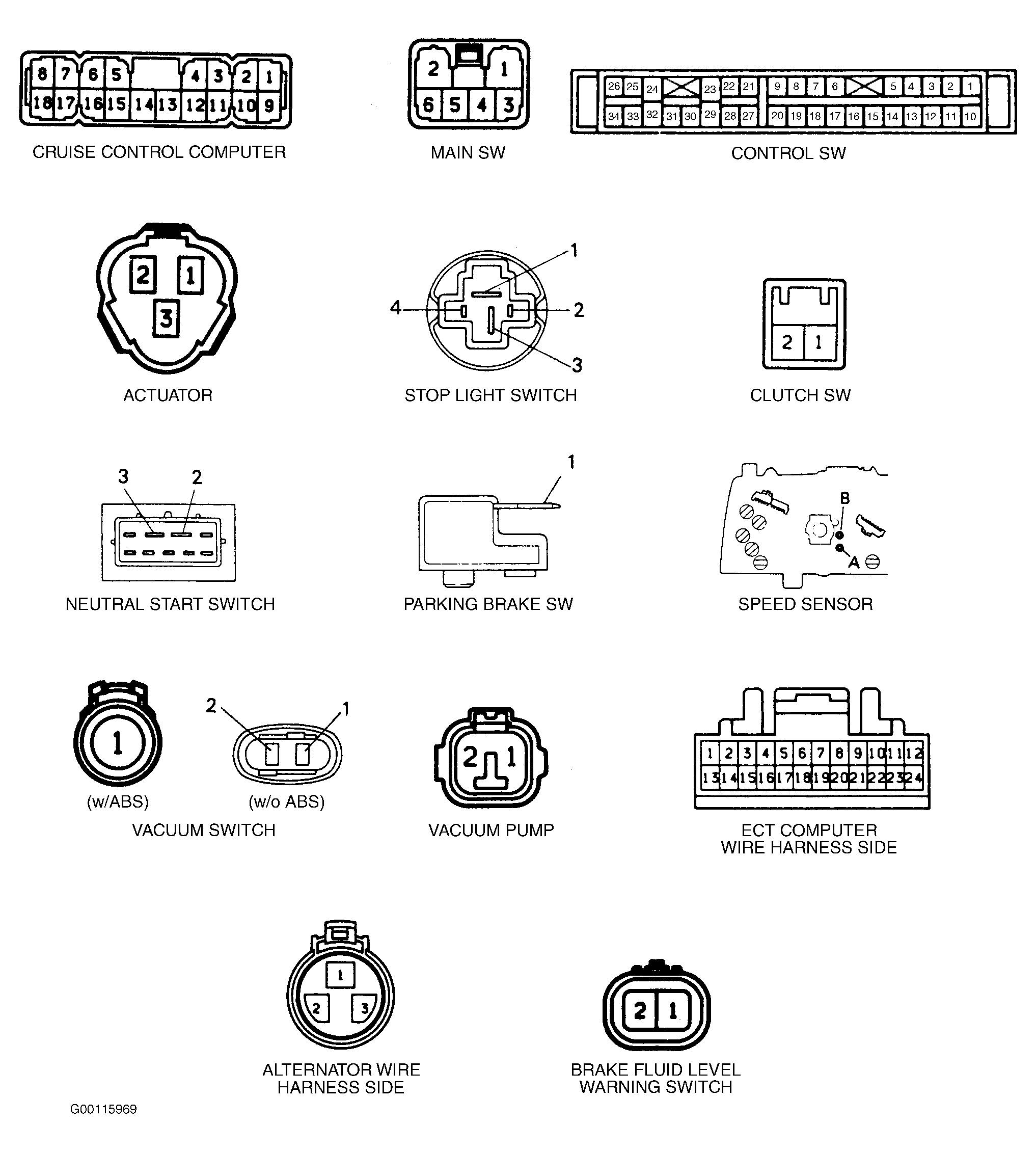

Fig 1: Identifying Connectors

G00115969

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
