Mirror Switch

Inspect the mirror switch continuity between terminals. See Fig 1. If the continuity is not as specified, replace the switch.

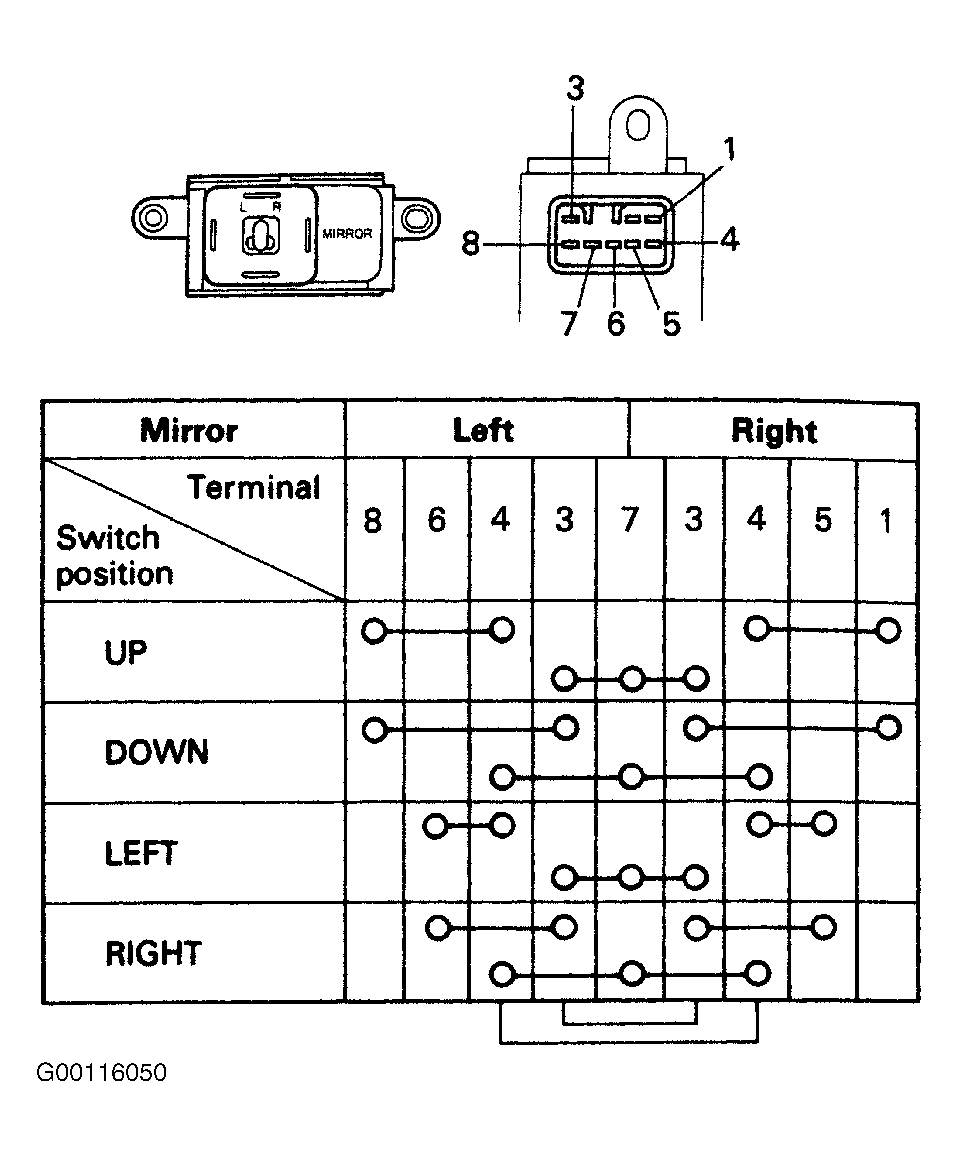

Fig 1: Testing Remote Control Mirror Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
