Power Seat Switch

Inspect the switch continuity between terminals. See Fig 1-Fig 3 . If continuity is not as specified, replace the switch.

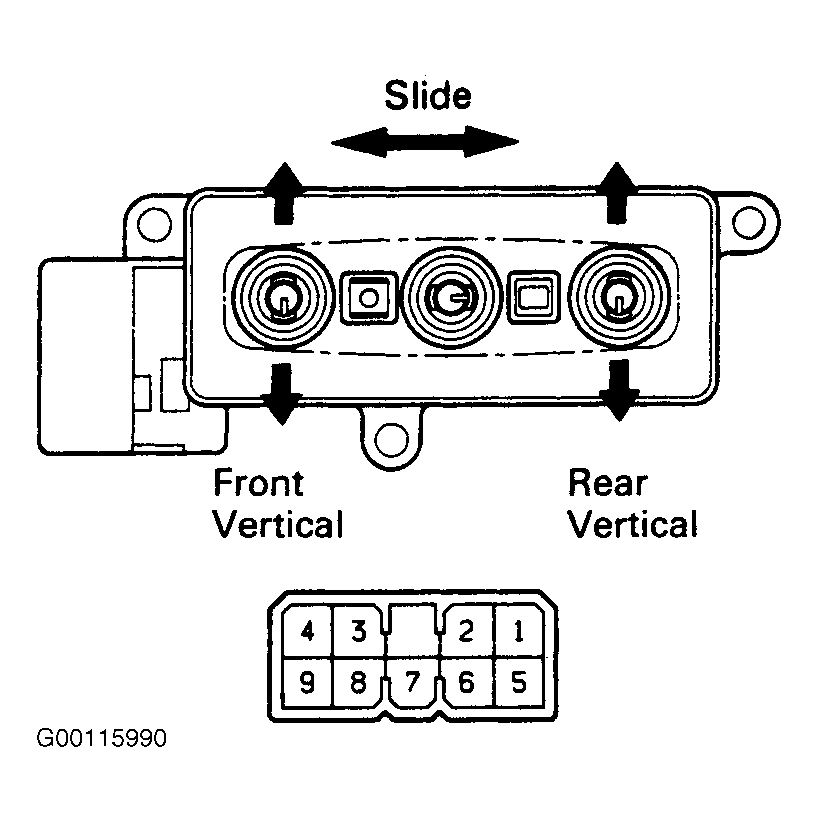

Fig 1: Identifying Power Seat Switch (1989)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Power Seat Switch (1990-91)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

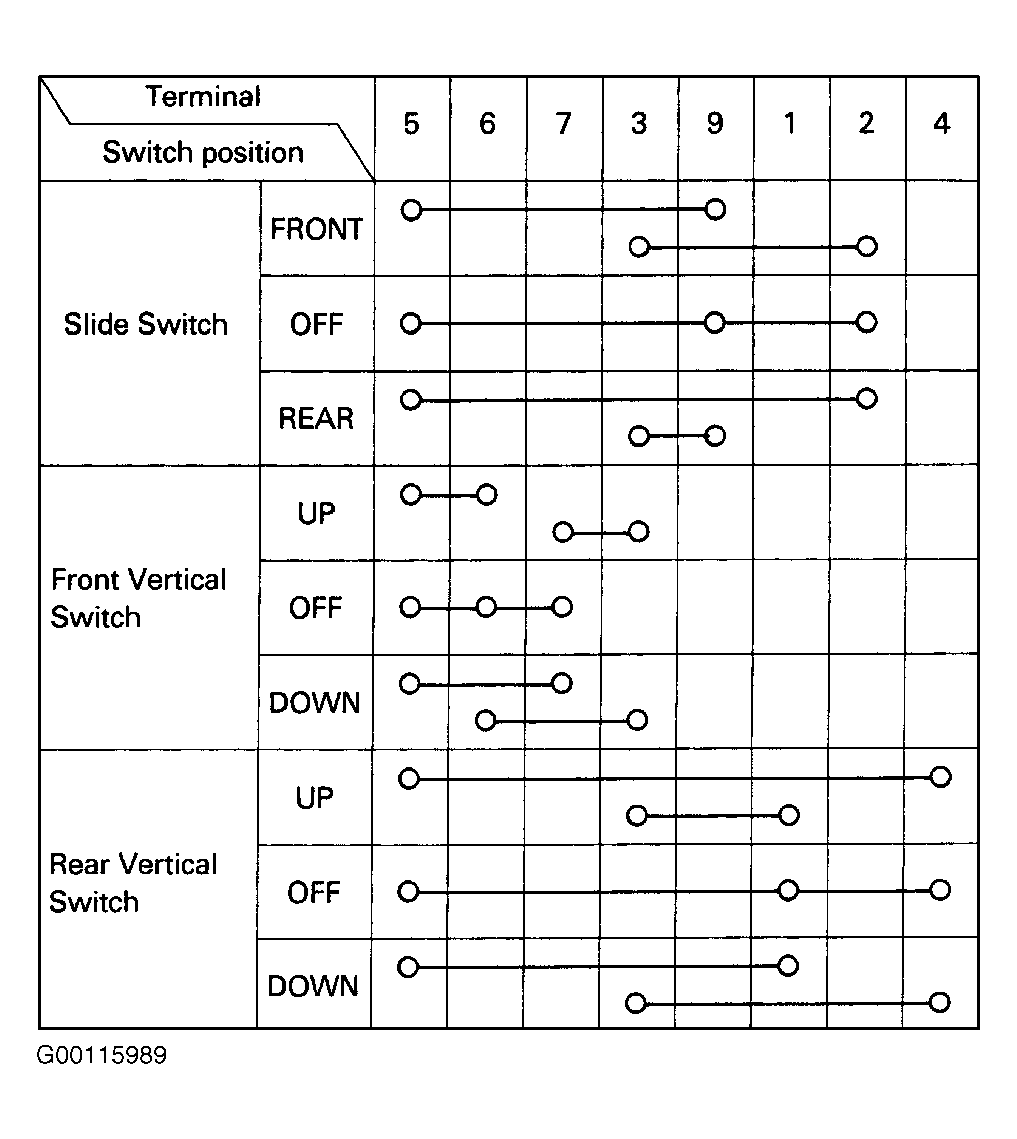

Fig 3: Testing Power Seat Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
