Test 12 - Idle Speed Control Circuit

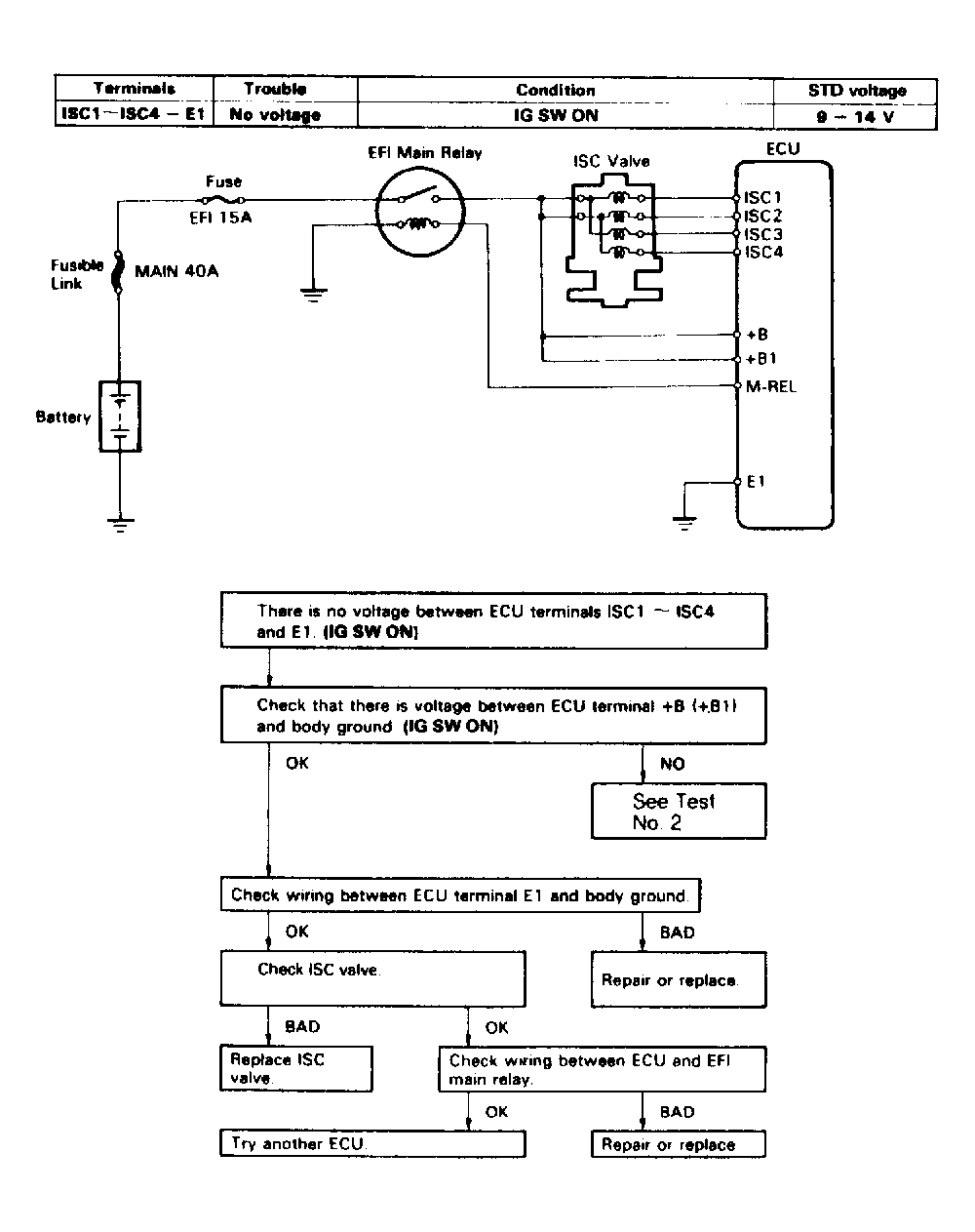

Fig 1: 4-Cyl Test No. 12 Diagram & Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

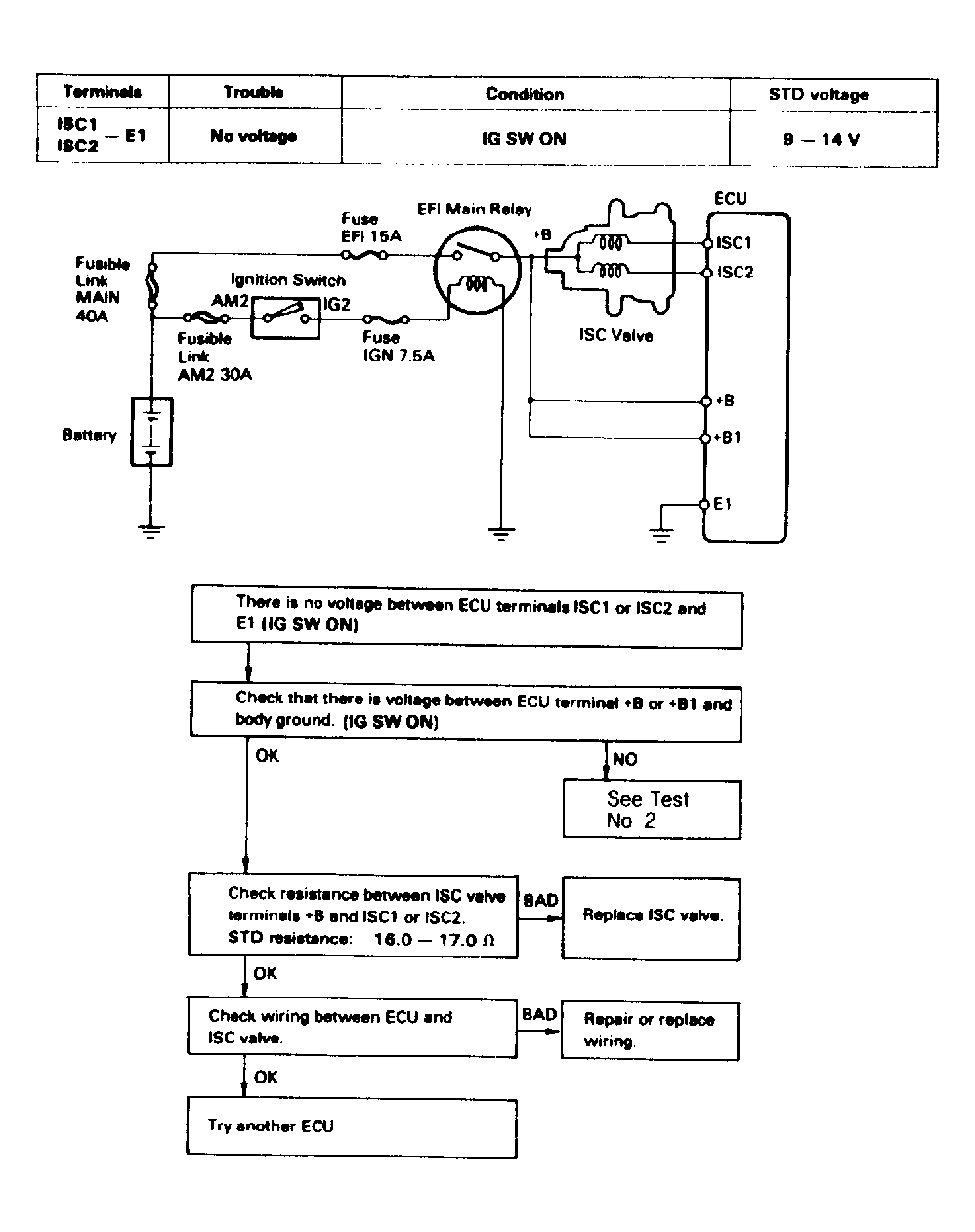

Fig 2: V6 Test No. 12 Diagram & Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
