System Tests: Notes

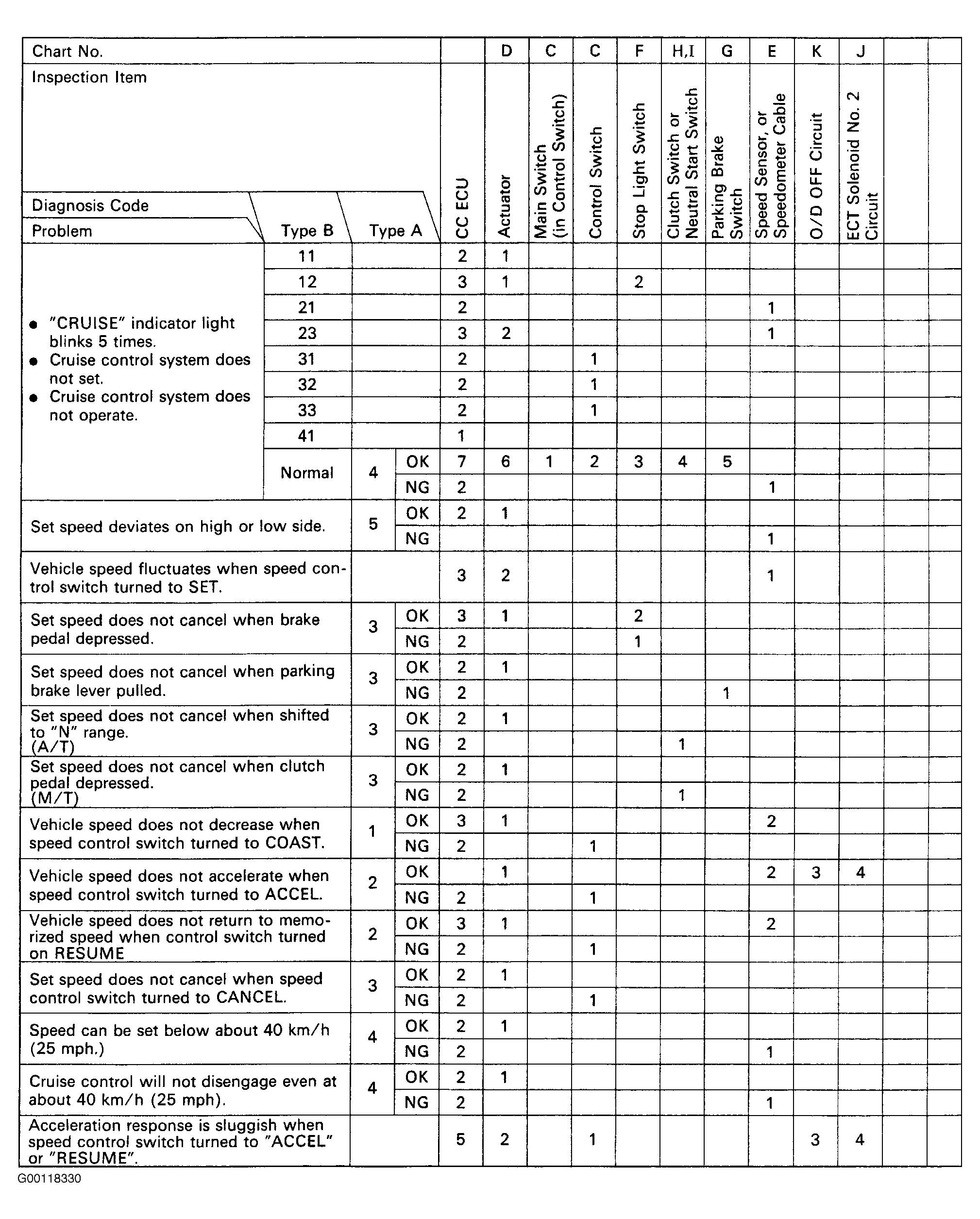

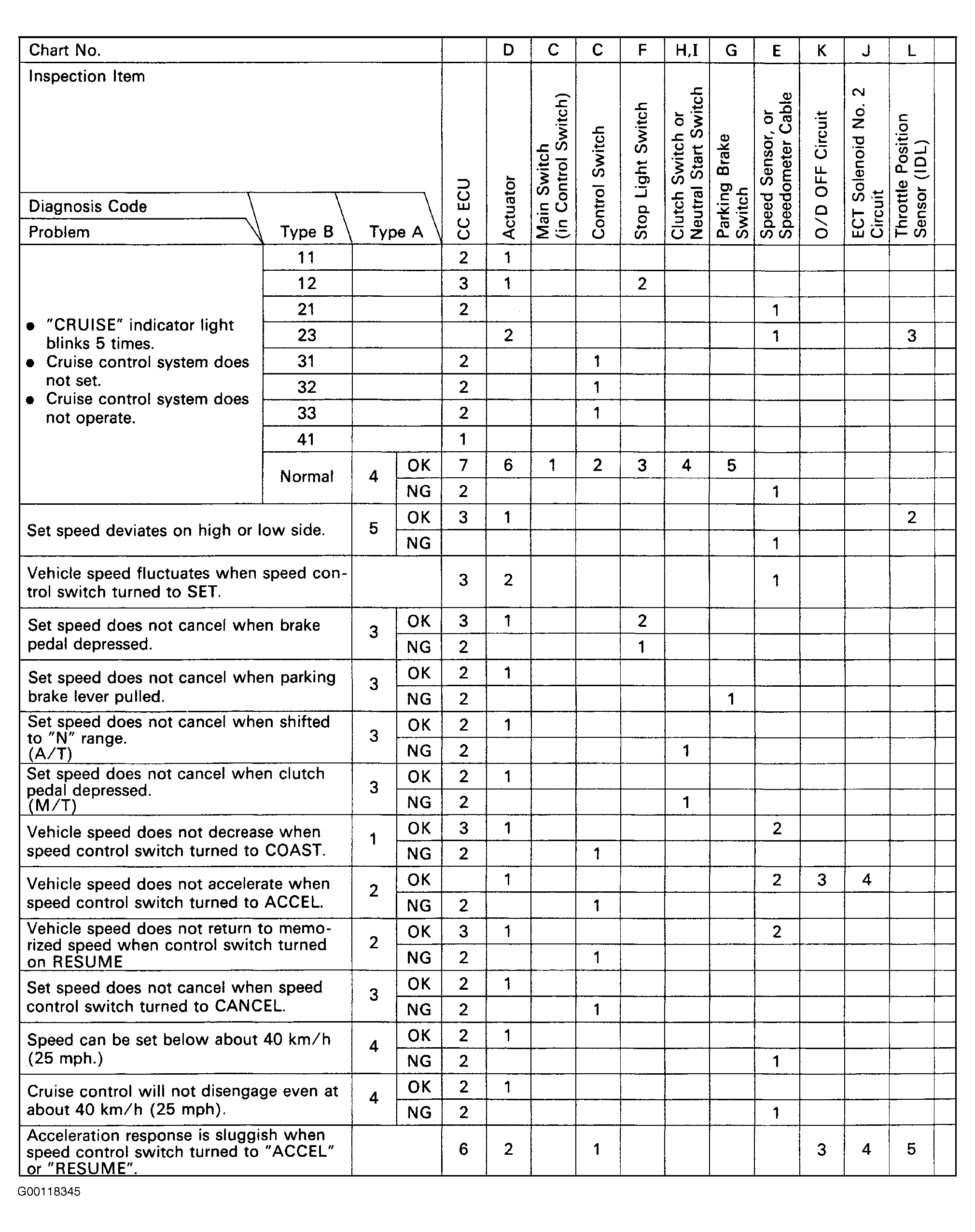

Before diagnosing cruise control by symptom, check for any stored trouble codes. See SELF-DIAGNOSTIC SYSTEM . For a complete list of symptoms, refer to illustrations. See Figure and Figure .
SYSTEM TEST INDEX
| Circuit | Perform Test |
|---|---|
| Power Source | A |
| Cruise Control Indicator | B |
| Cruise Control Switch | C |
| Actuator | D |
| Speed Sensor (A/T) | E1 |
| Speed Sensor (M/T) | E2 |
| Stop Light Switch | F |
| Parking Brake Switch | G |
| Neutral Switch (A/T) | H |
| Clutch Switch (M/T) | I |
| ECT Solenoid No. 2 | J |
| O/D Off | K |
| Throttle Position Sensor (IDL) Signal | L |
