Power Main Relay

Inspect continuity of relay at terminals indicated. See Fig 1. If continuity is not as specified, replace relay.

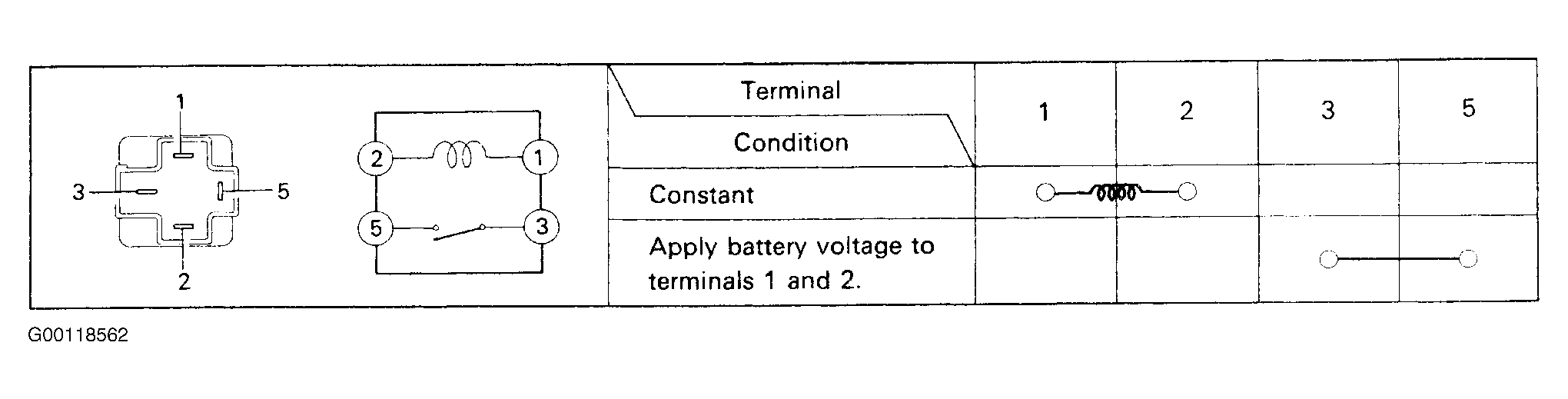

Fig 1: Testing Power Main Relay Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
