Test 10 Or Code 43 - Starter Signal
Test 10 Or Code 43 - Starter Signal

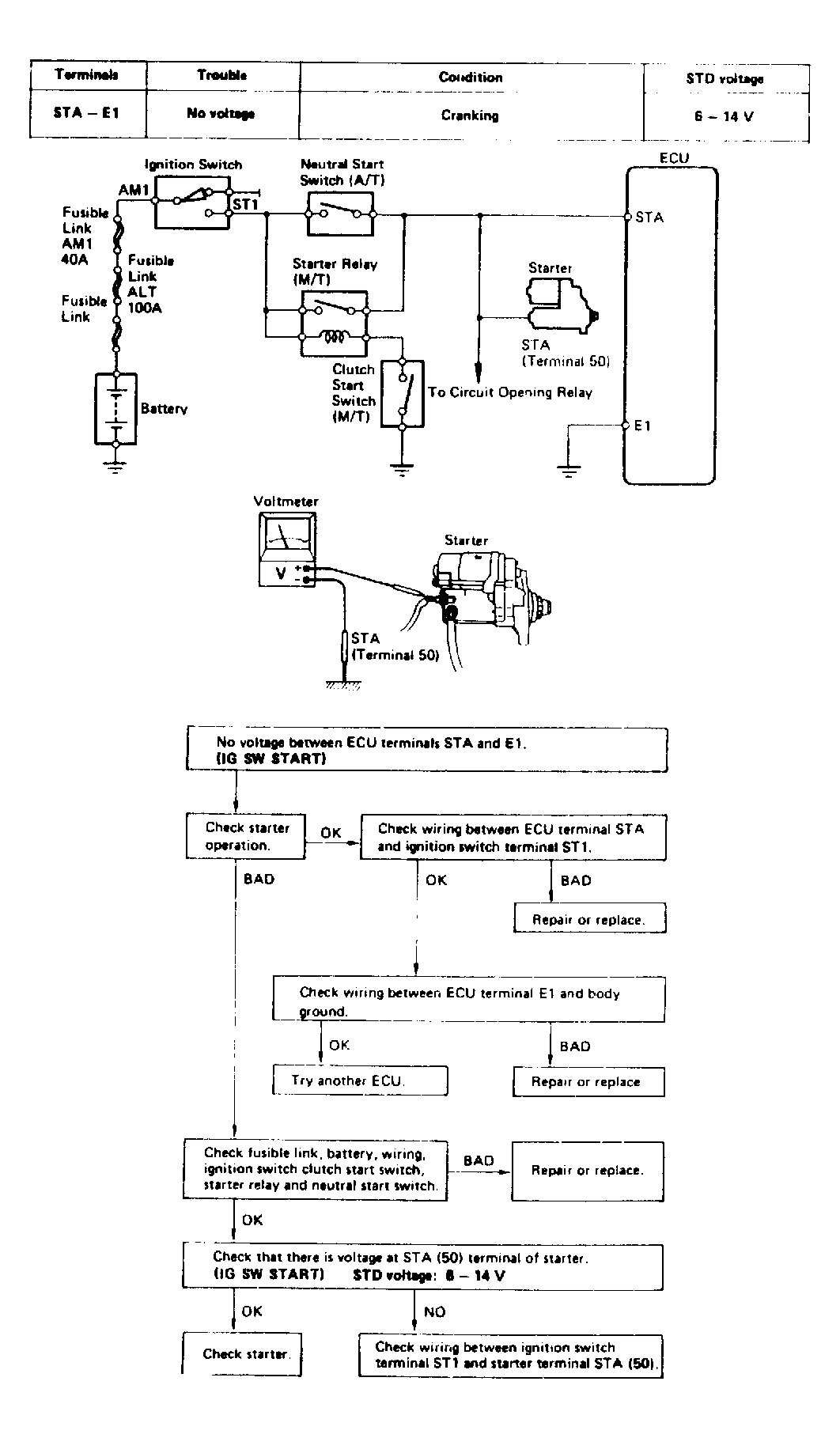

Fig 1: Test No. 10 or Code 43 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
