Celica GT-S, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Tests W/Codes
›
Test 1 - Ecu Power Source
Test 1 - Ecu Power Source

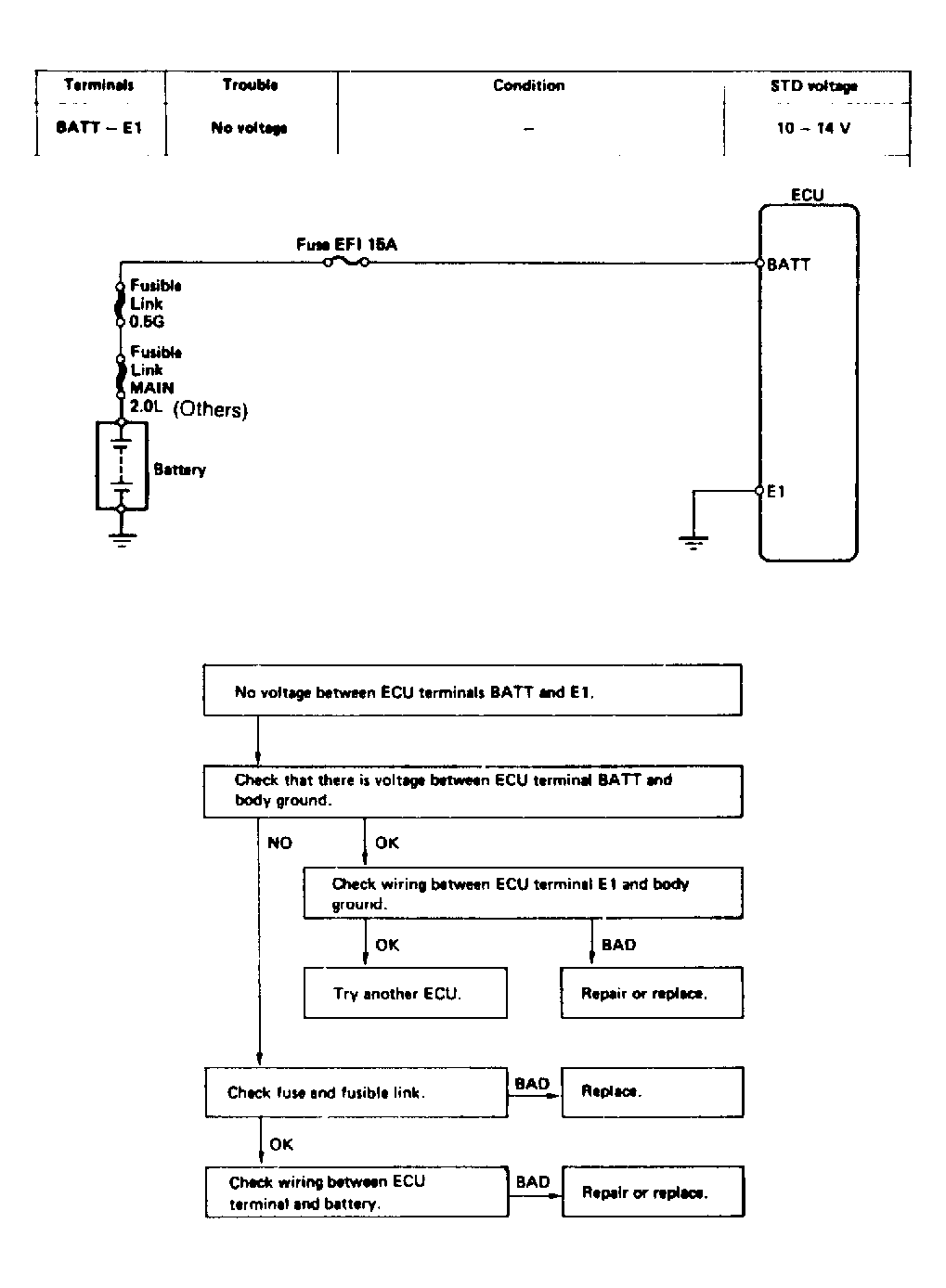

Fig 1: Test No. 1 - ECU Power Source Diagram & Flow Chart
