Power Window Main Relay
Inspect main relay between terminals. See
Fig 1
. If continuity is not as specified, replace relay.

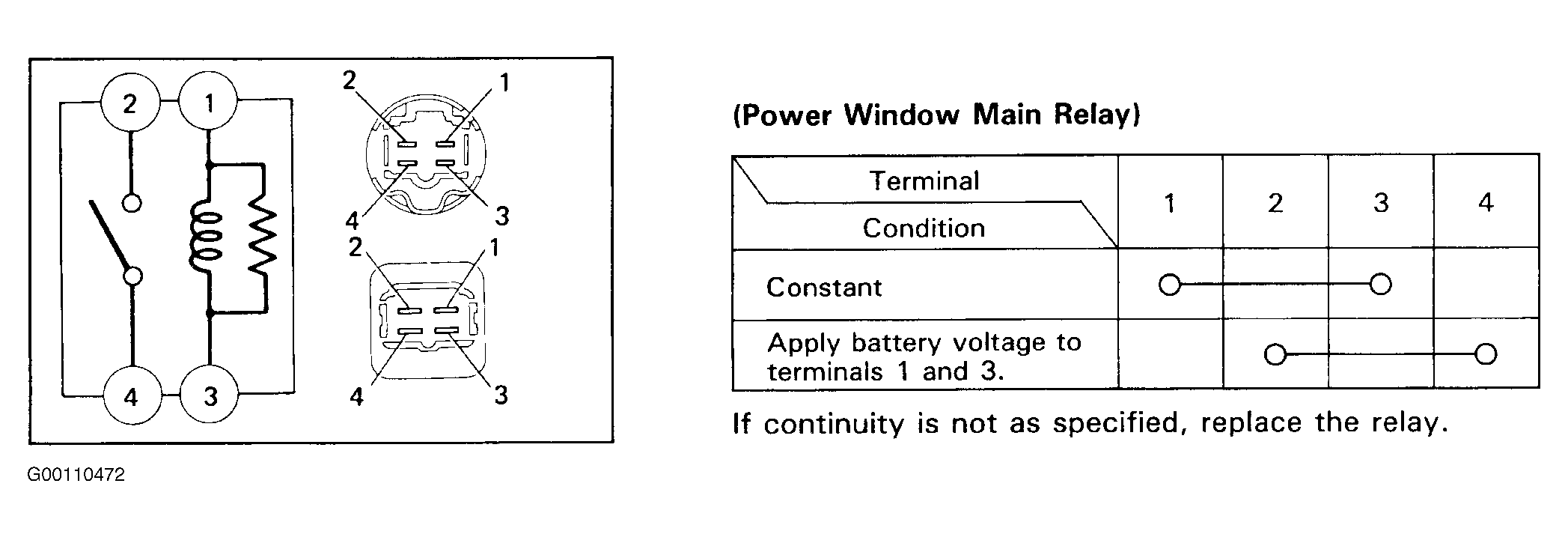

Fig 1: Testing Power Window Main Relay
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
