Alternator & Regulator: Overhaul

NOTE: Overhaul procedures are not available from manufacturer. Refer to Fig 1 through Fig 10 for views of alternator assembly.

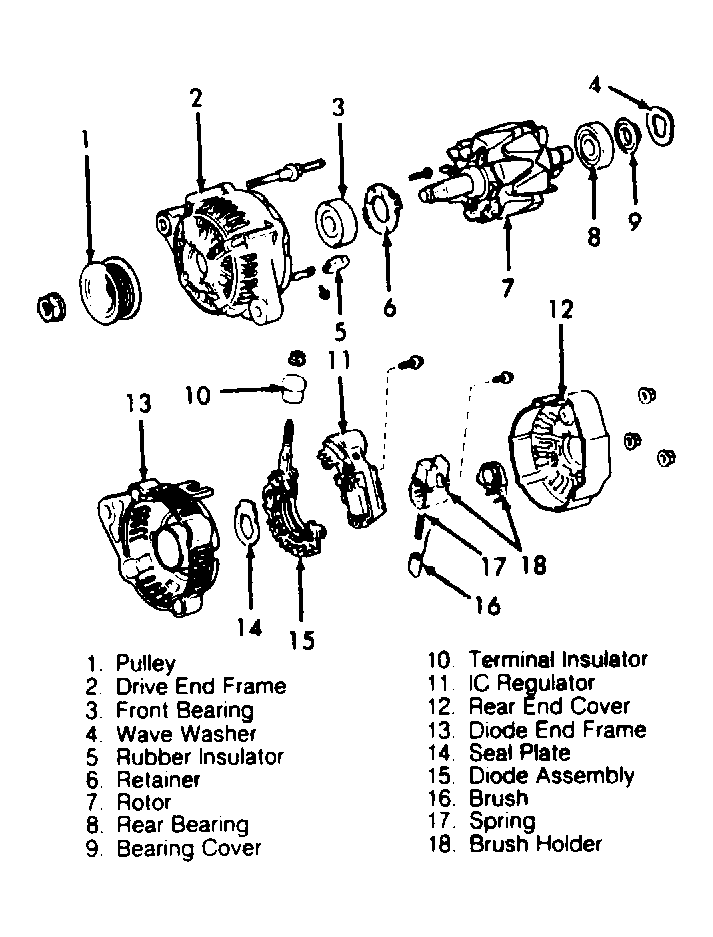

Fig 1: Exploded View of Alternator (Camry (4AF-E M/T), Celica, Cressida & Supra (7M-GE))

G90H03002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

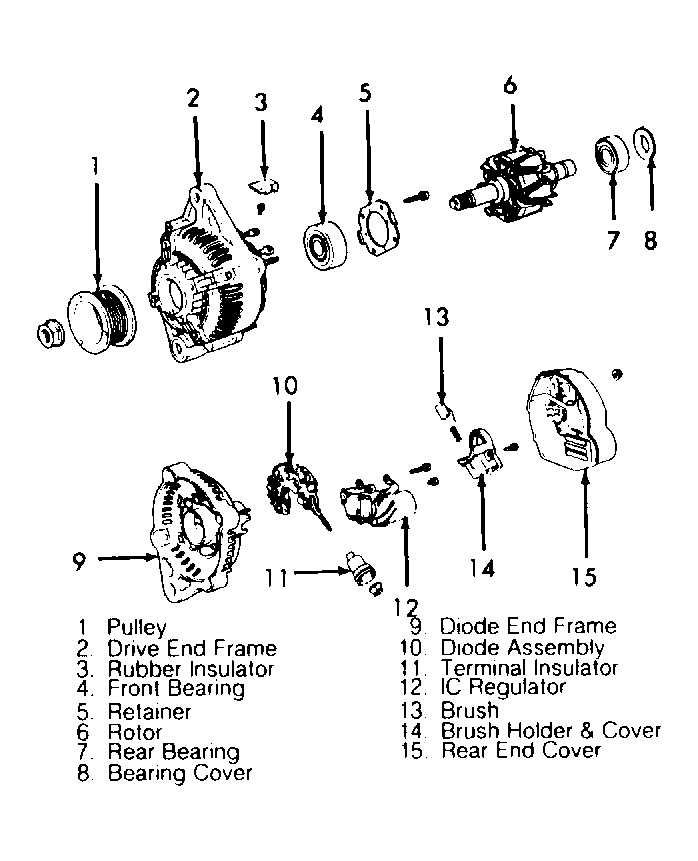

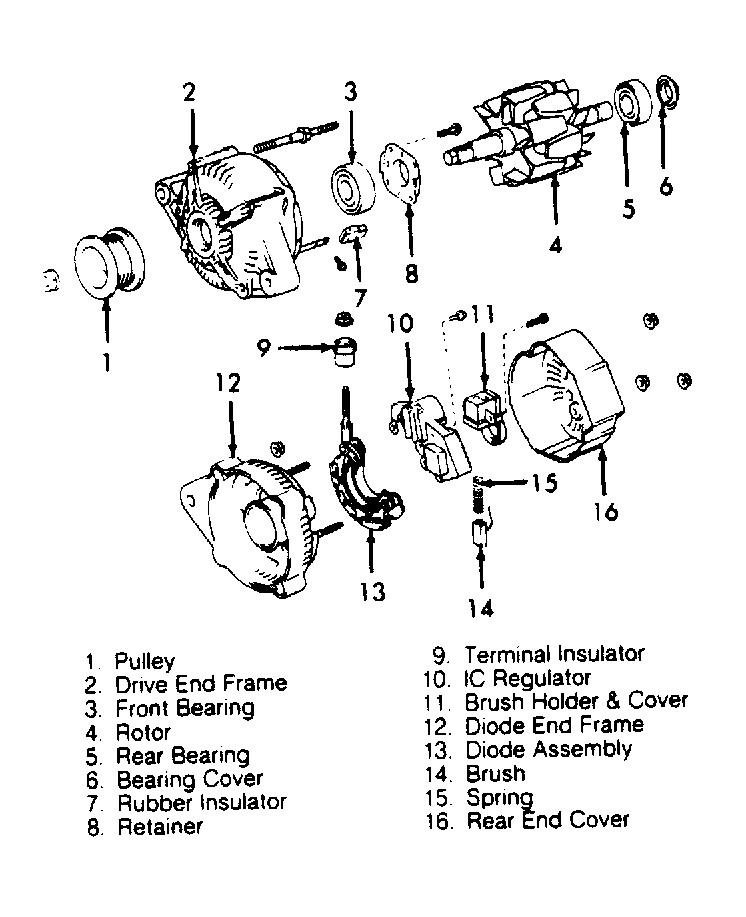

Fig 2: Exploded View of Alternator (Celica (4AF-E A/T) & Corolla)

G90J03003

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

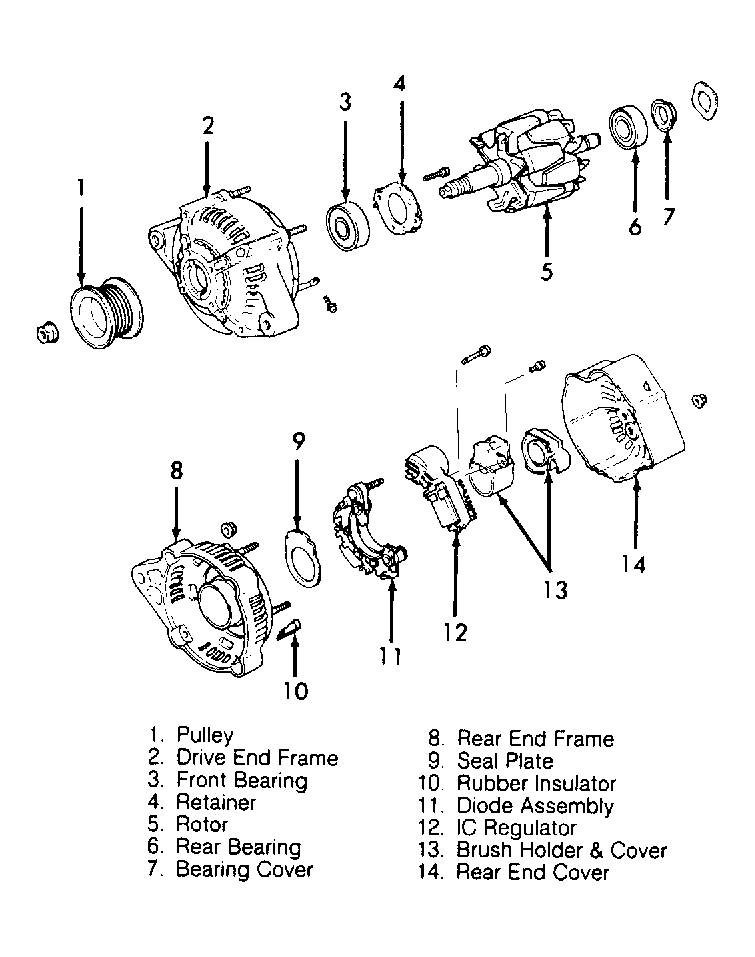

Fig 3: Exploded View of Alternator (Celica (3S-GTE & 5S-FE A/T)

G92H01574

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

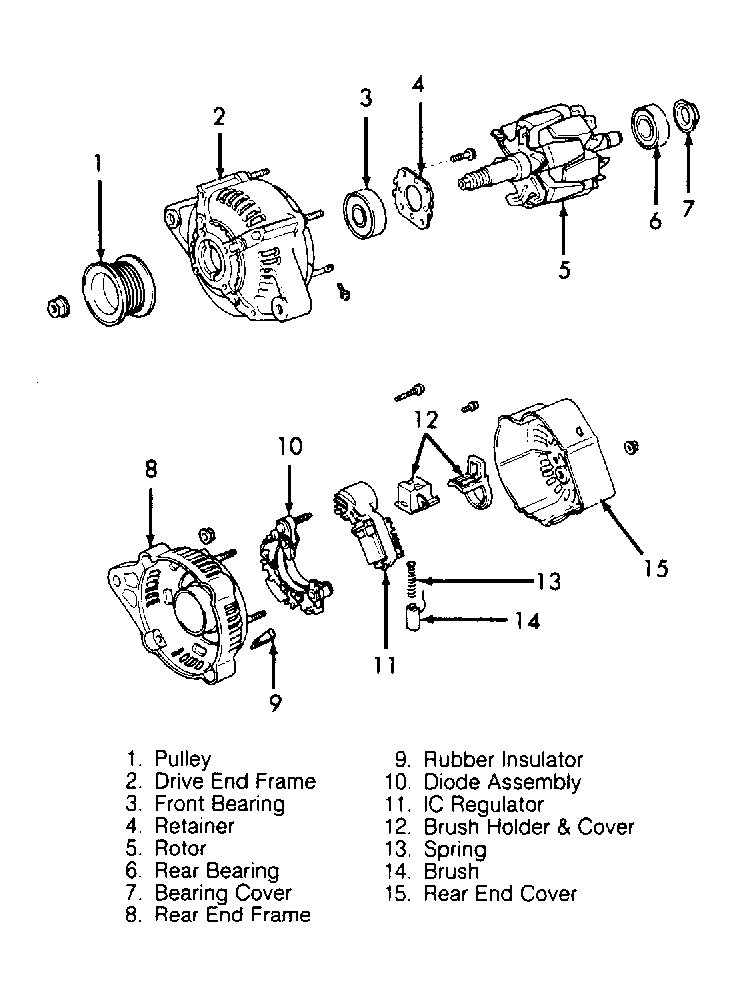

Fig 4: Exploded View of Alternator (Celica 5S-FE M/T)

G92A01575

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

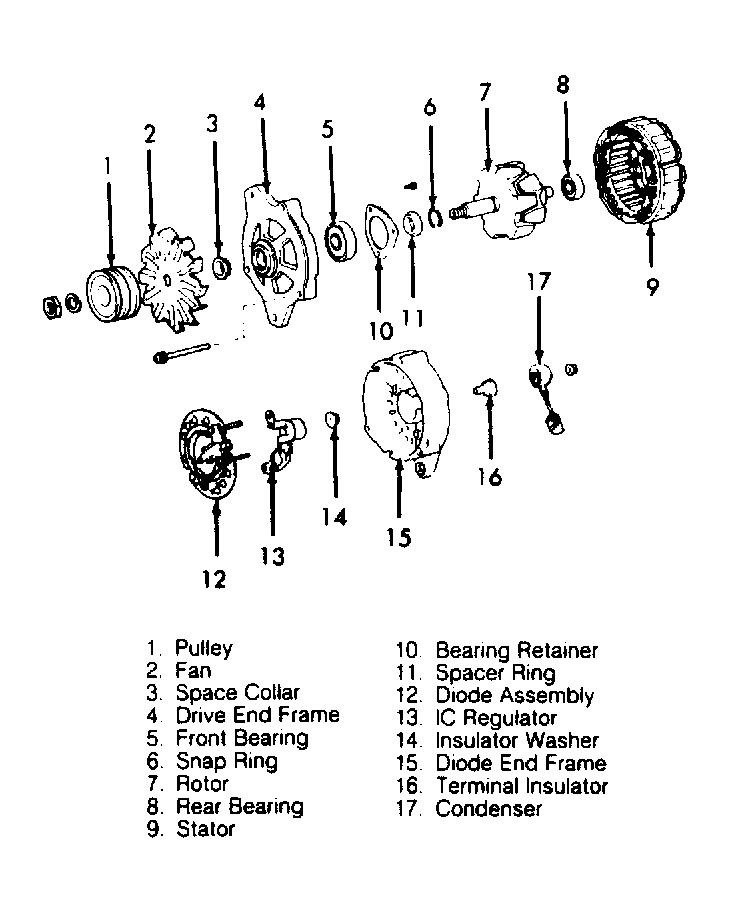

Fig 5: Exploded View of Alternator (Land Cruiser)

G90B03004

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

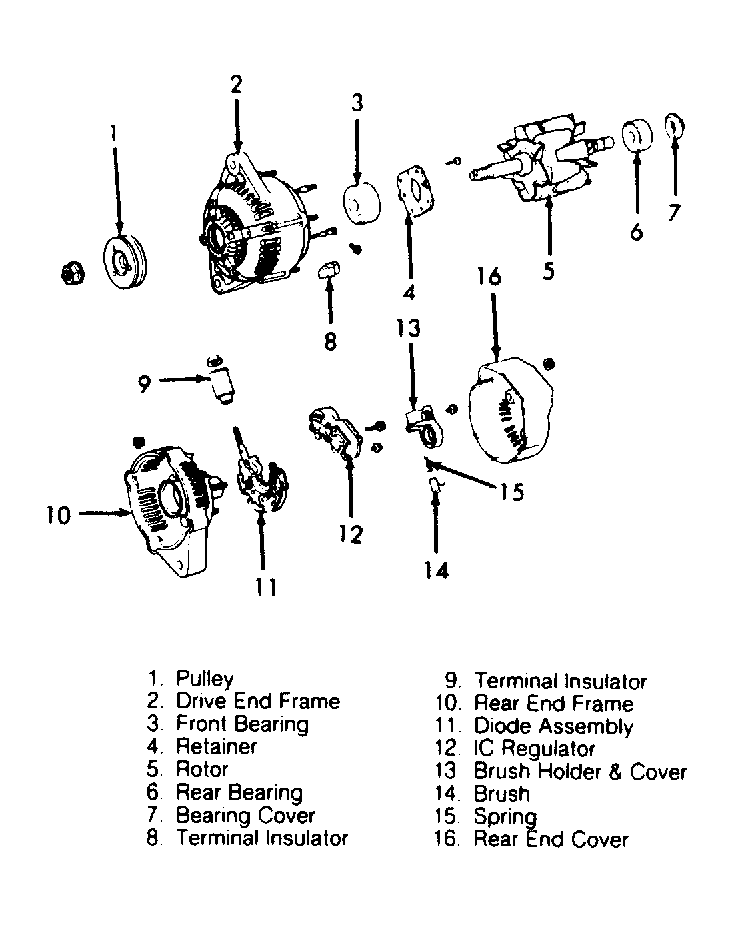

Fig 6: Exploded View of Alternator (Pickup & 4Runner 22R-E)

G90E03005

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

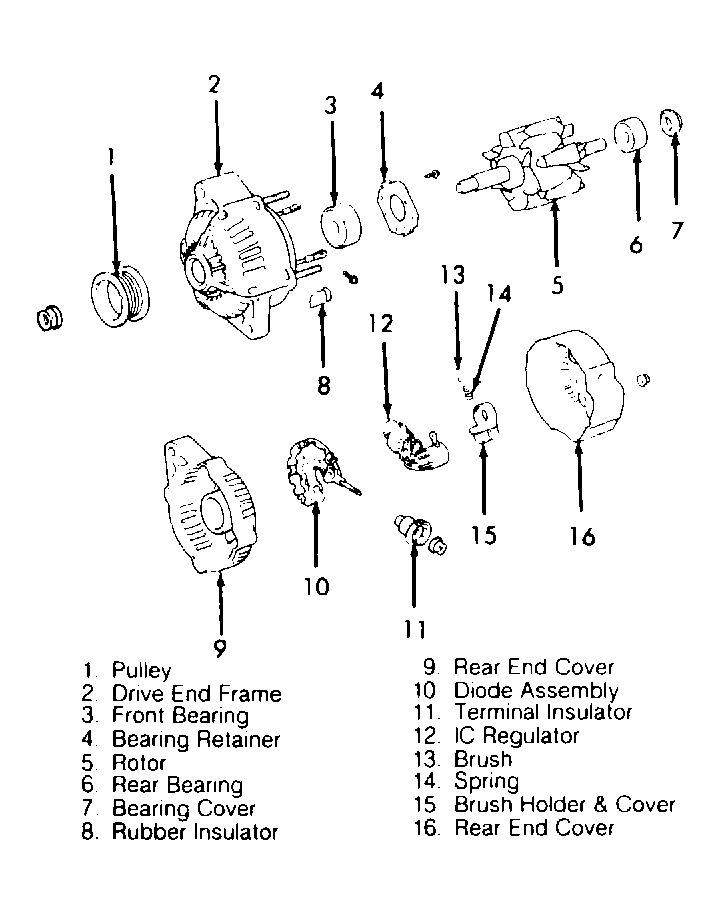

Fig 7: Exploded View of Alternator (Pickup & 4Runner 3VZ-E)

G90G03006

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

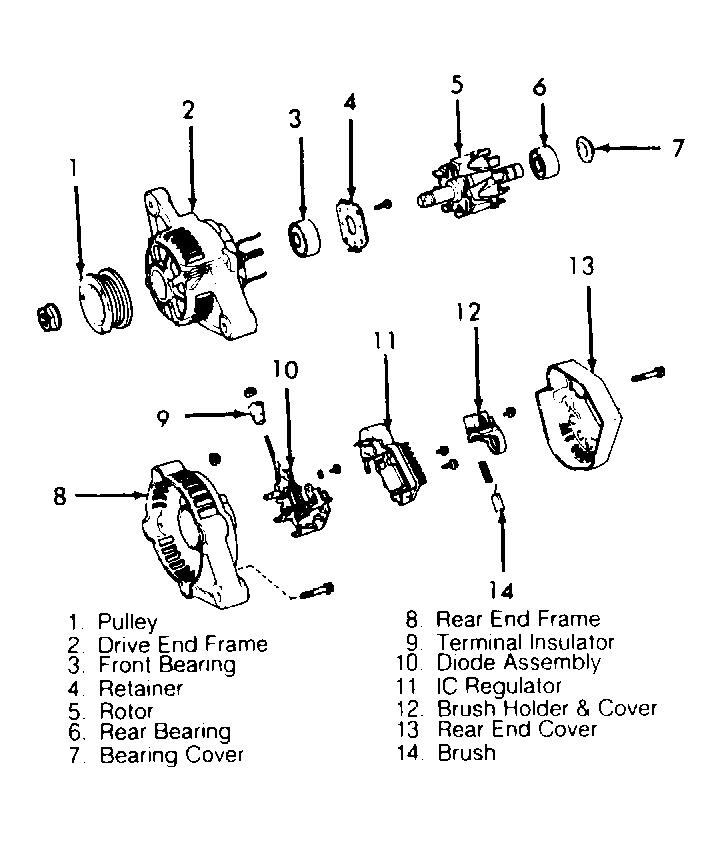

Fig 8: Exploded View of Alternator (Tercel 50-Amp)

G90I03007

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

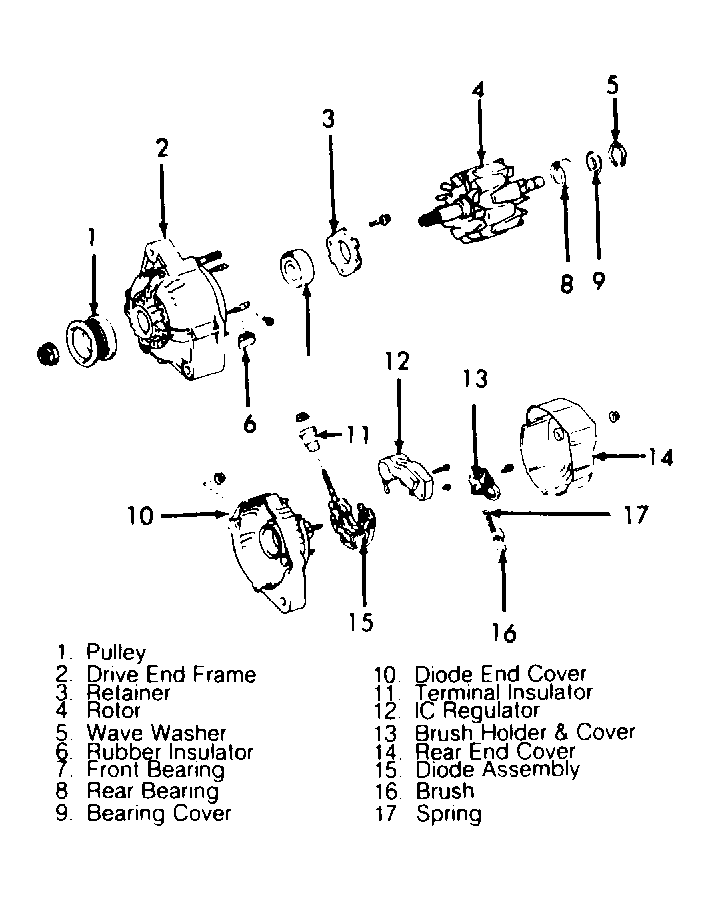

Fig 9: Exploded View of Alternator (Corolla 4AG-E & Tercel 55 & 60 Amp)

G90A03008

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Exploded View of Alternator (Supra 7M-GTE)

G90E03010

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
