Engine Controls - Tests W/Codes
›
4A-FE & 4A-GE Diagnostic Circuit Check
4A-FE & 4A-GE Diagnostic Circuit Check

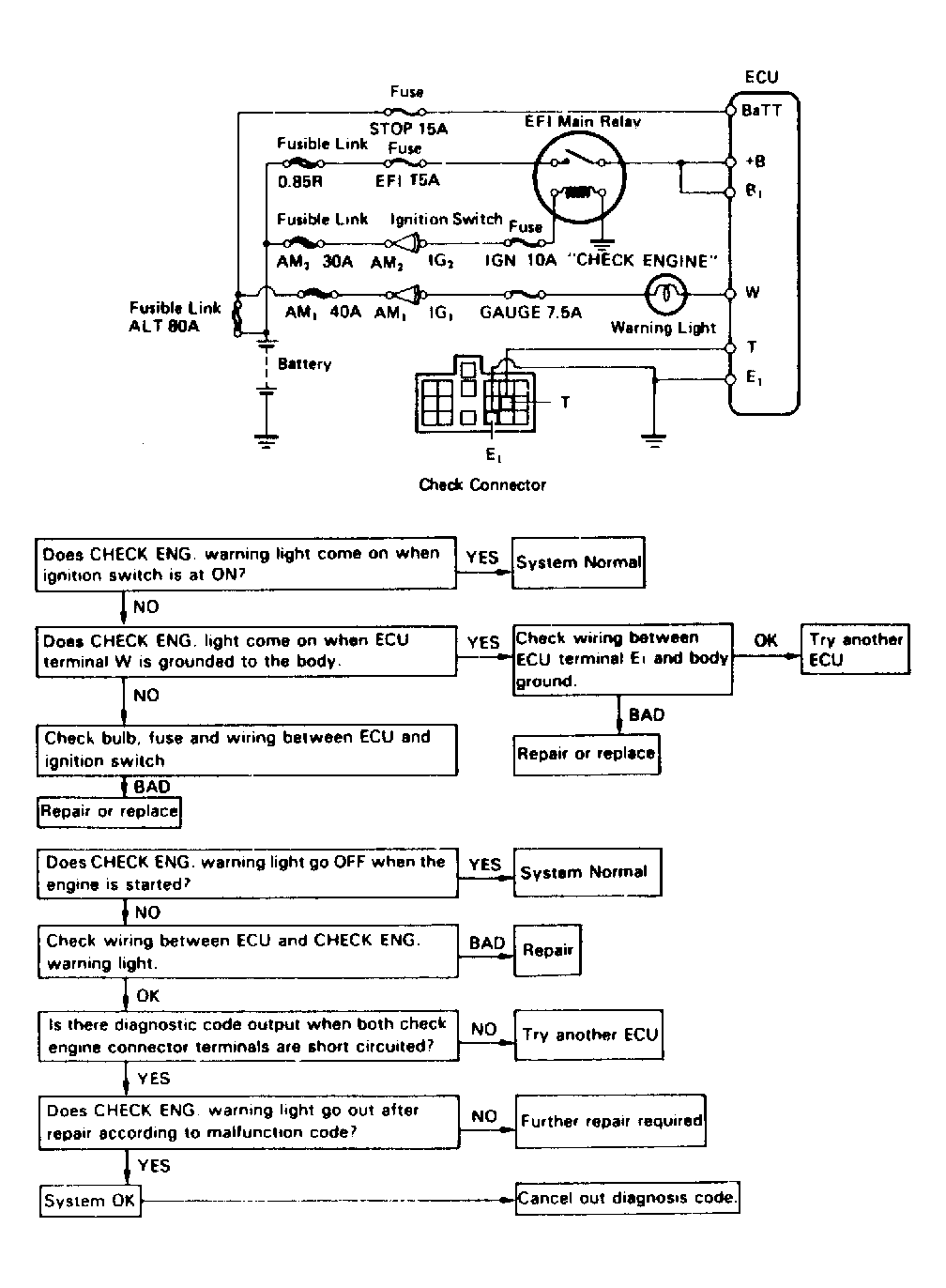

Fig 1: 4A-FE & 4A-GE Diagnostic Circuit Check Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
