4A-FE & 4A-GE Ecu Terminal Identification
4A-FE & 4A-GE Ecu Terminal Identification

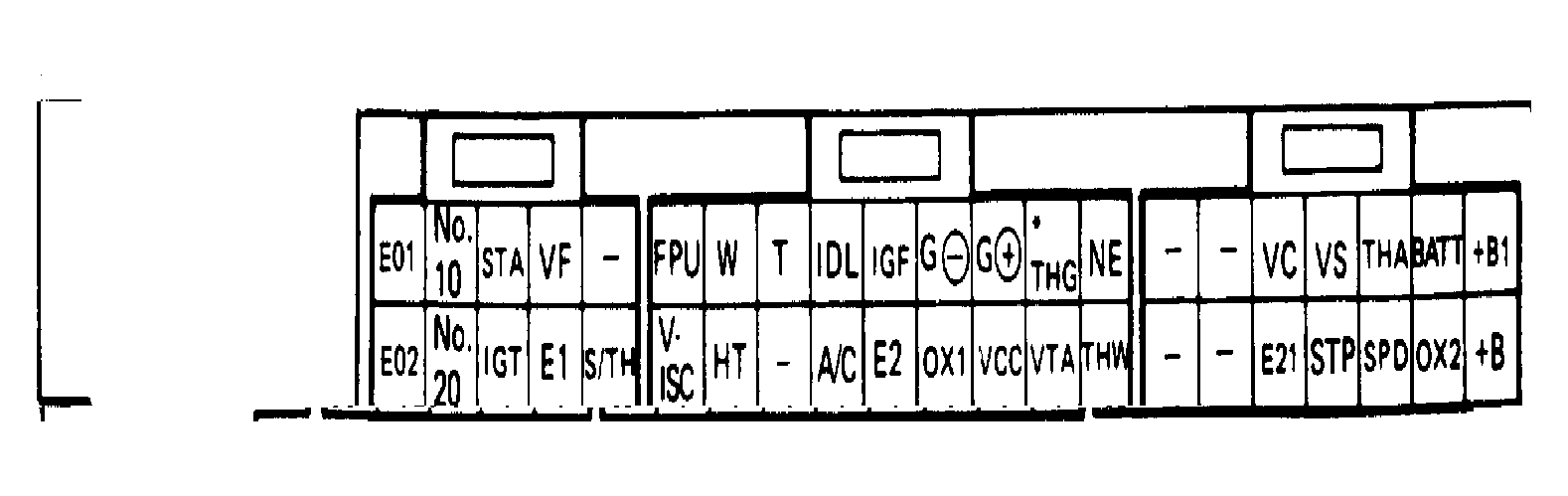

Fig 1: 4A-FE ECU Terminal Identification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

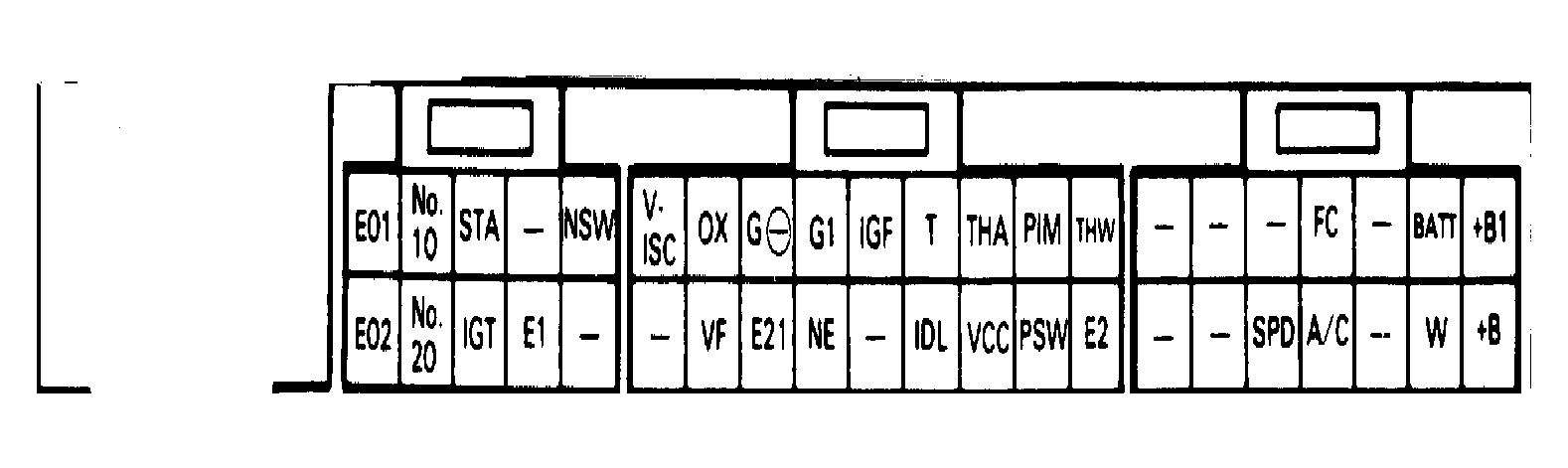

Fig 2: 4A-GE ECU Terminal Identification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
