Component Locations

For component locations, see Fig 1 and Fig 2 .

Cruise control connector is located near base of steering column.

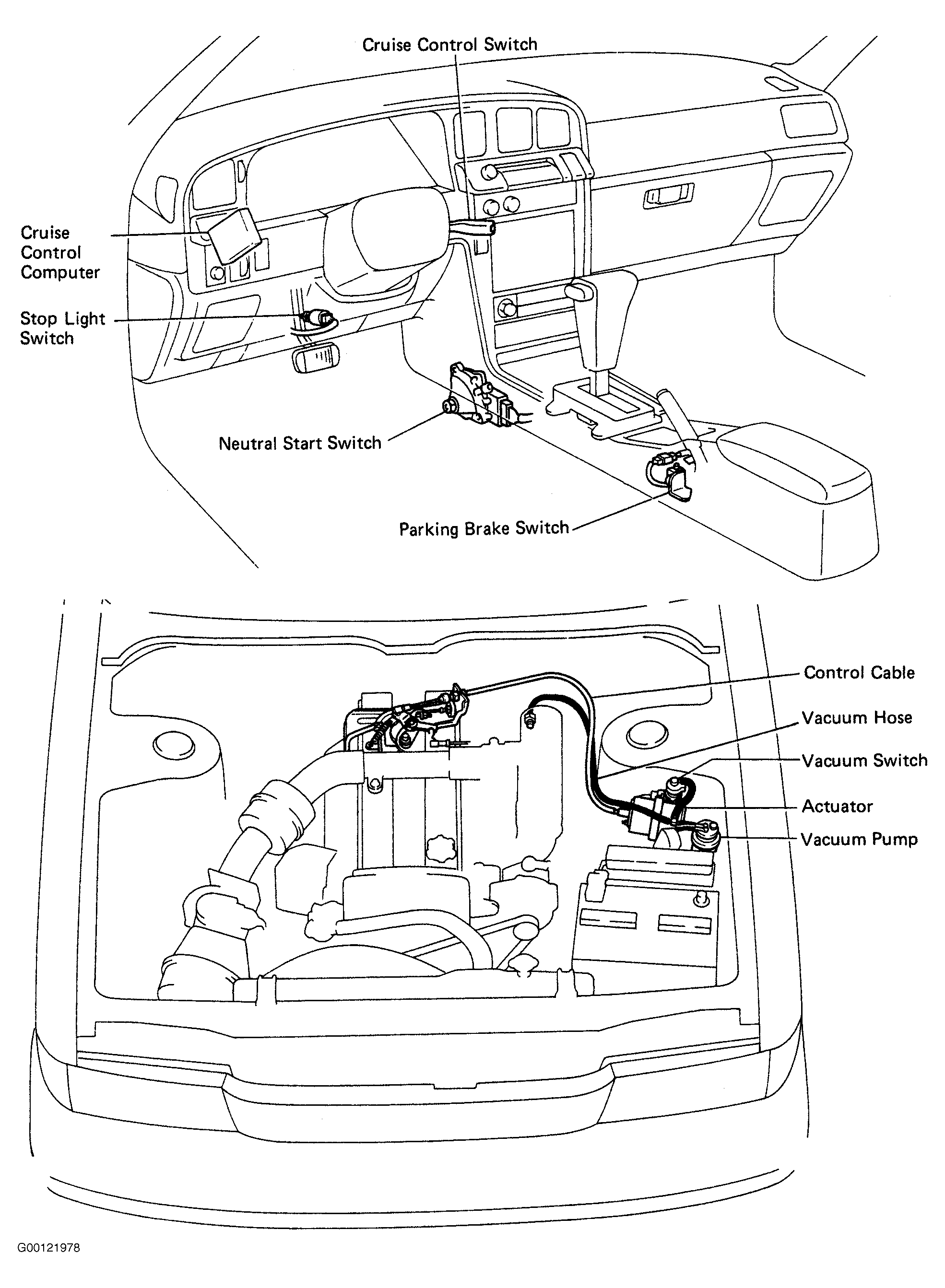

Fig 1: Locating Cruise Control System Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Junction Block No. 1 is located behind left kick panel.

Fig 2: Identifying Junction Block No. 1 Components

Fig 3: Locating ECT Solenoid No. 2, Neutral Safety (Start) Switch & TCCS ECU
