Control Switch

Inspect the switch continuity between terminals. See Fig 1 and Figure . If continuity is not as specified, replace the switch.

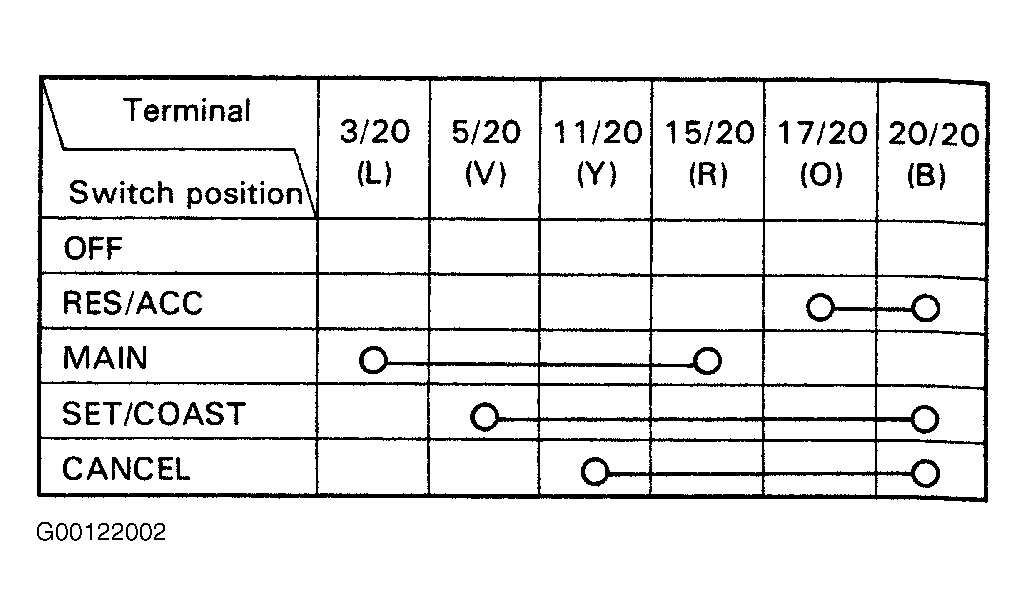

Fig 1: Testing Control Switch Continuity
G00122002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
