Connector Identification

Fig 1: Identifying Cruise Control Computer Terminals (Wiring Harness Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

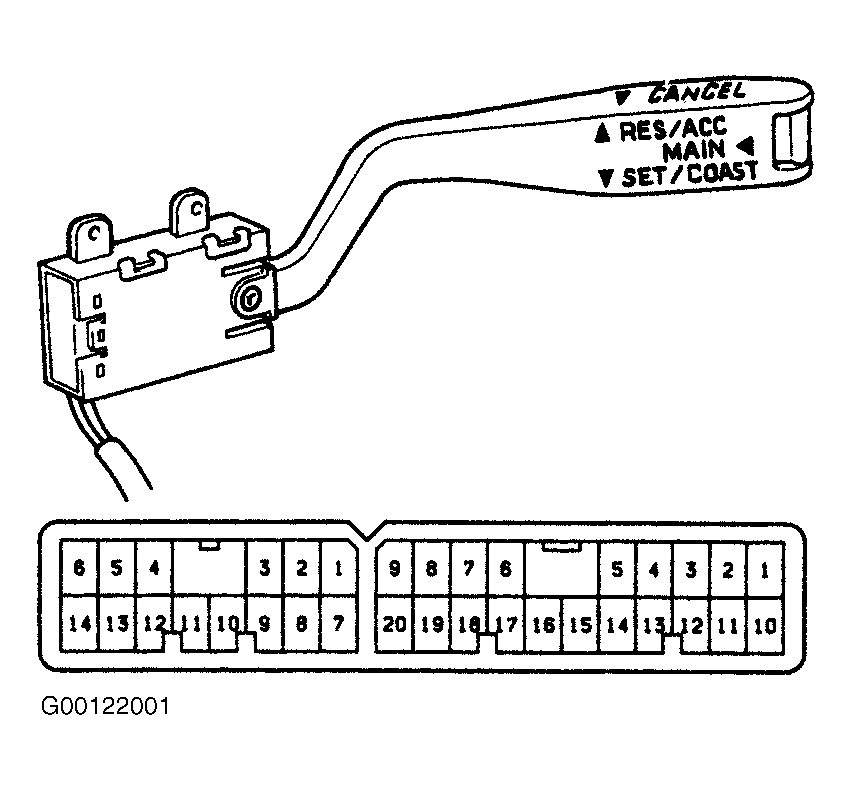

Fig 2: Identifying Cruise Control Switch (Combination Switch) Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

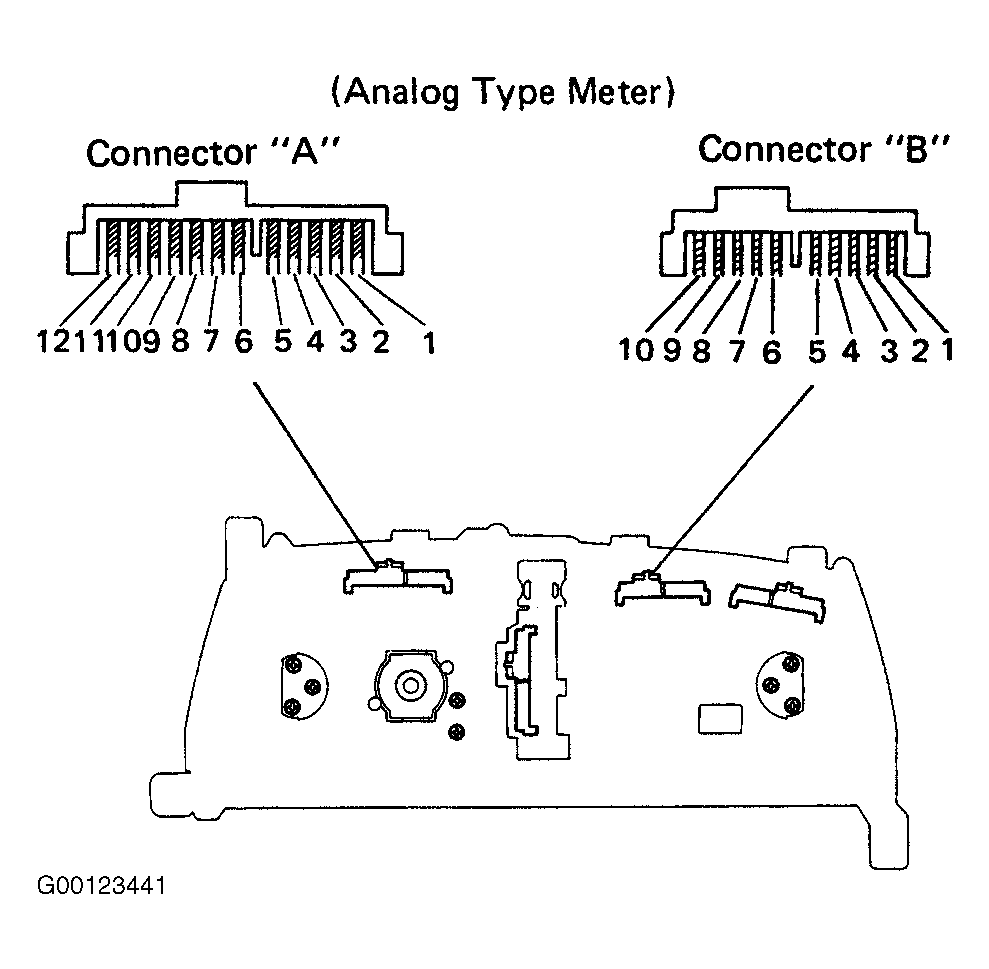

Fig 3: Identifying Analog Meter Speed Sensor (Combination Meter Side) Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

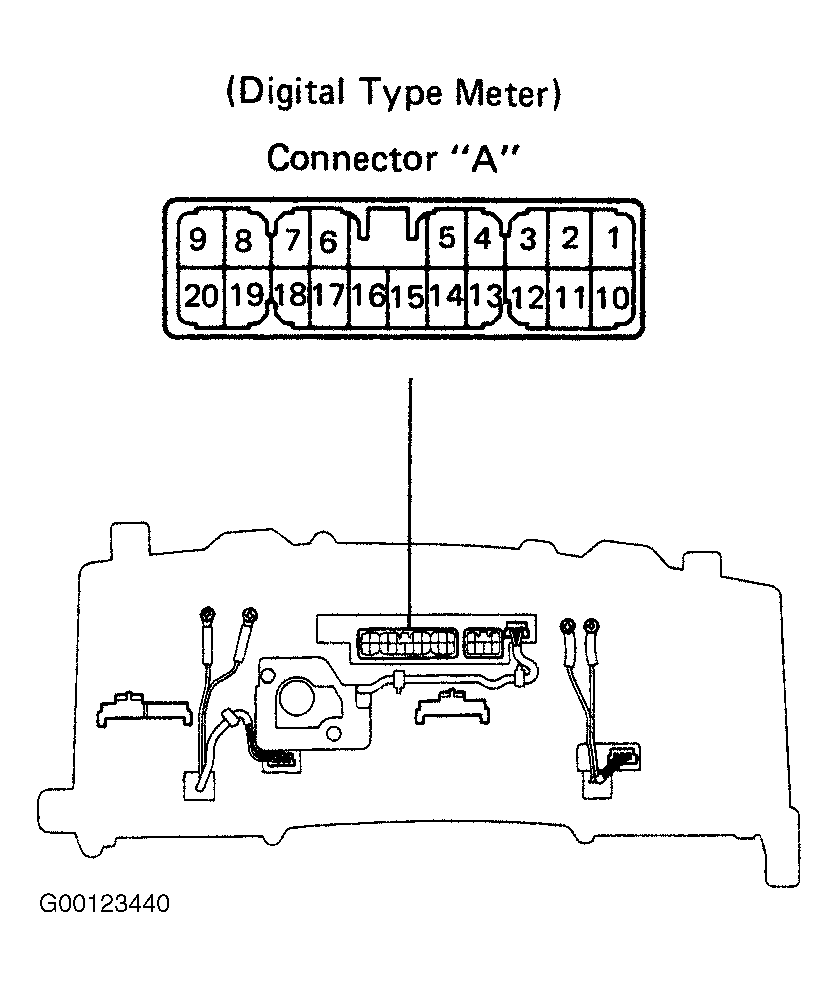

Fig 4: Identifying Digital Meter Speed Sensor (Combination Meter Side) Terminals

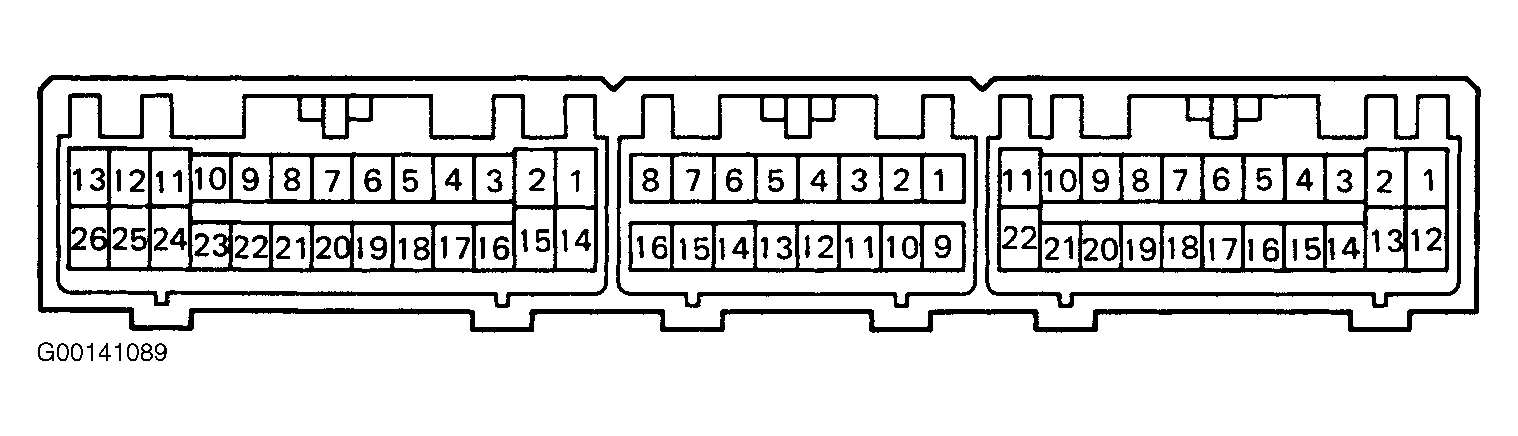

Fig 5: Identifying TCCS ECU Terminals (ECU Side)
