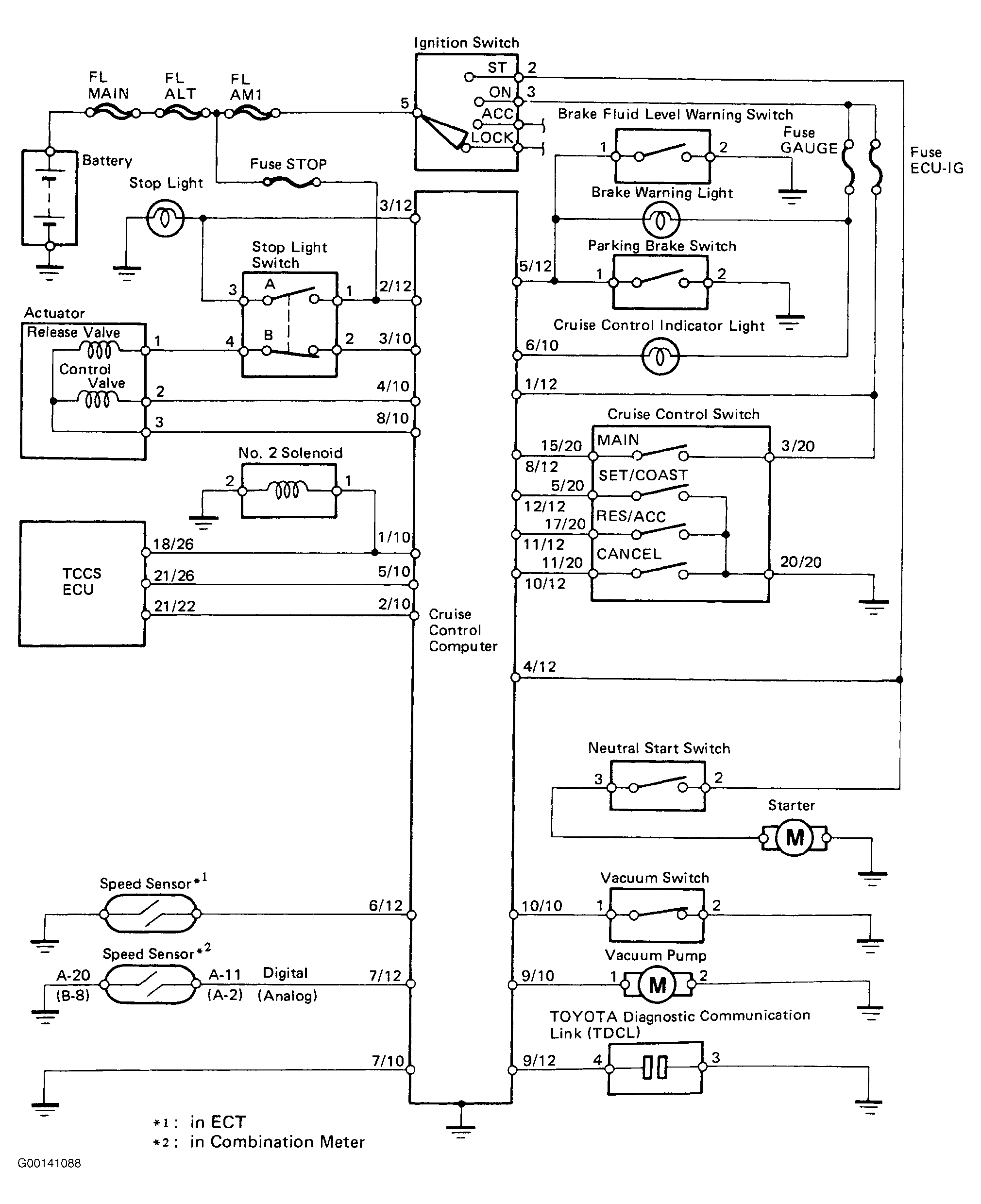

Terminal numbers in flow charts designate terminal number and number of pins in connector. For example, combination switch terminal 3/20 is terminal no. 3 of 20-pin connector. See Figure through Figure .
