Test A: Inspection Of Power Source: Testing

For test procedures, refer to flowcharts. See Fig 1 and Fig 2 .

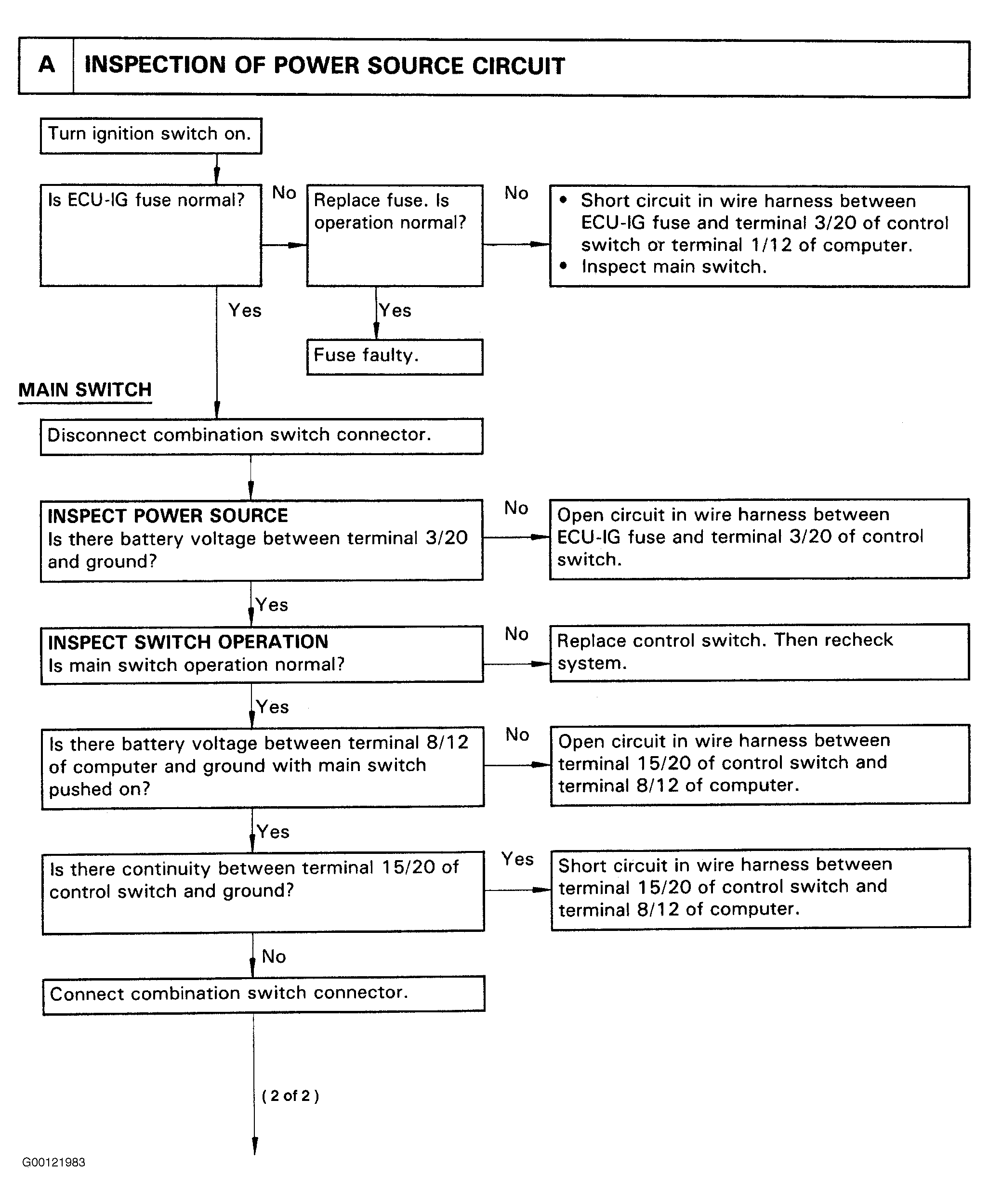

Fig 1: Test A: Inspection of Power Source (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Test A: Inspection Of Power Source (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
