Test 10 - Injector Circuit
Test 10 - Injector Circuit

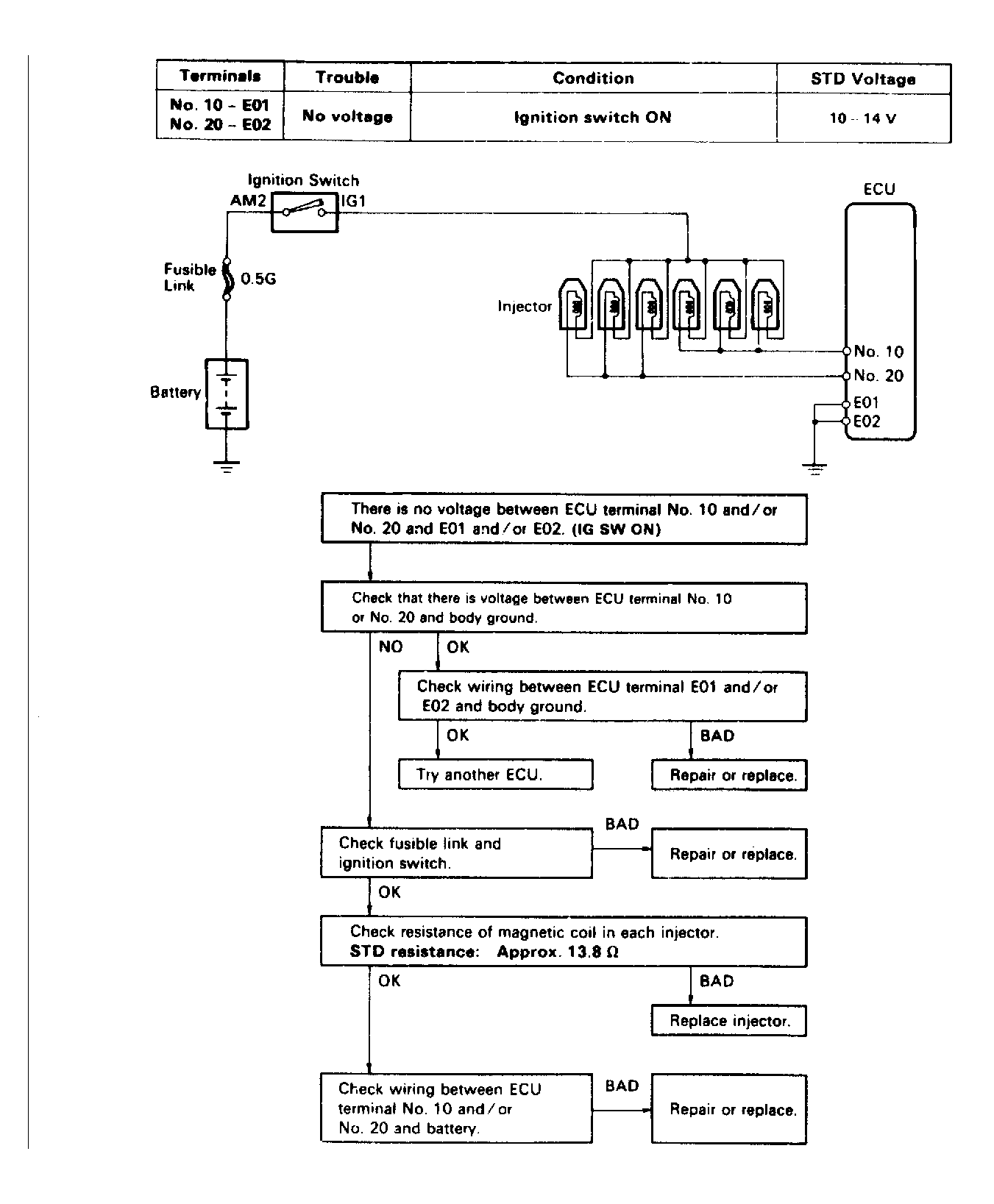

Fig 1: Test No. 10 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
