Test 11 - Check Engine Light Circuit
Test 11 - Check Engine Light Circuit

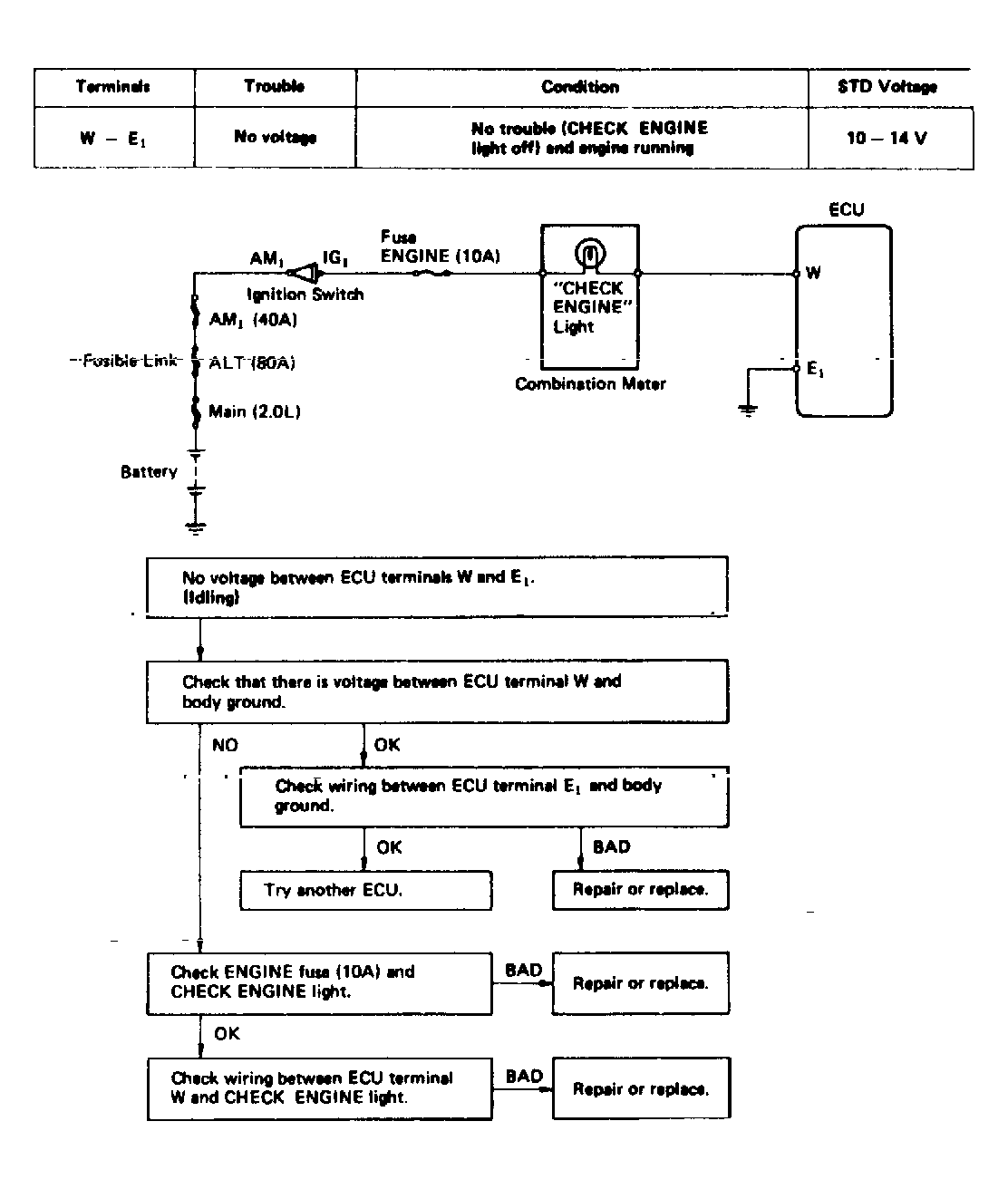

Fig 1: Test 11 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
