Test 7 Or Code 43 - Starter Signal
Test 7 Or Code 43 - Starter Signal

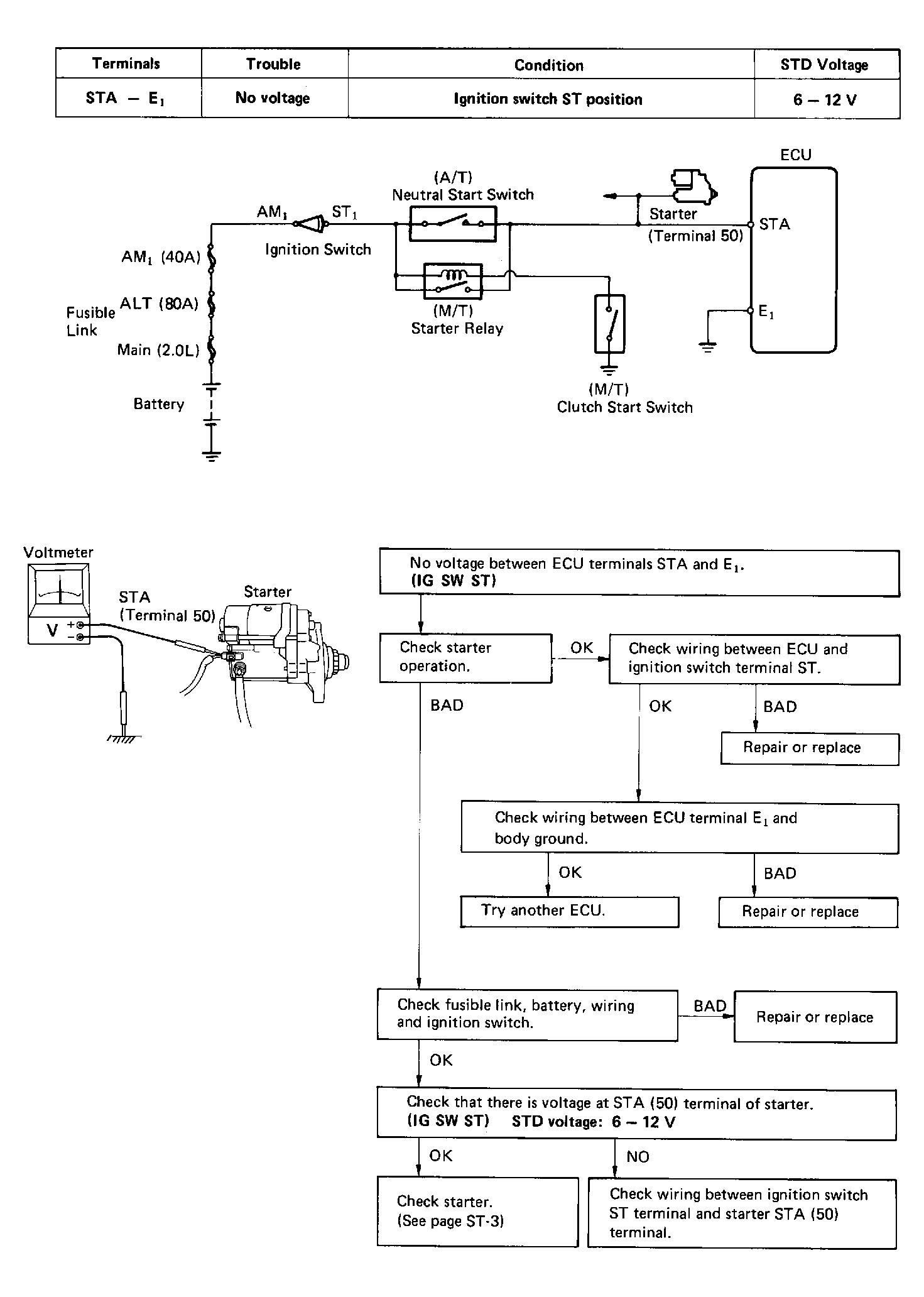

Fig 1: Test 7 Or Code 43 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
