Test 8 Or Code 71 - EGR System Malfunction
Test 8 Or Code 71 - EGR System Malfunction

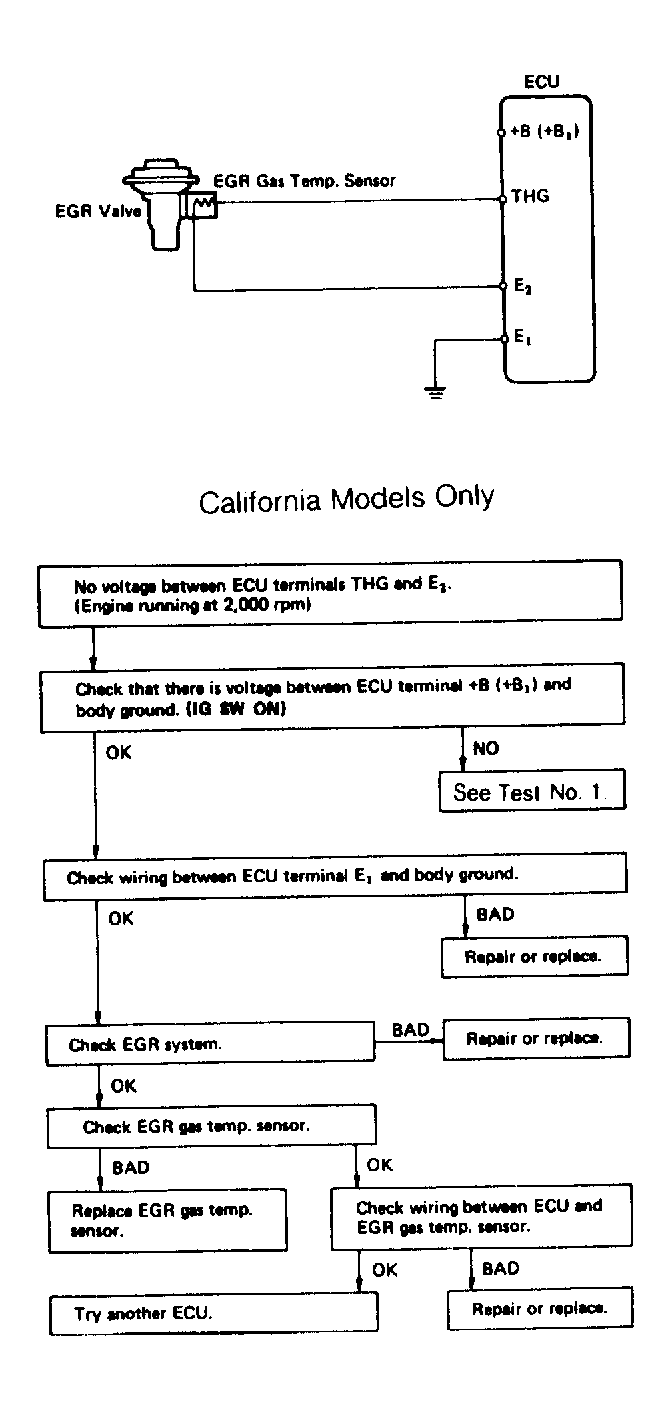

Fig 1: Test 8 Or Code 71 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
