Component Locations

For component locations, see Fig 1.

NOTE: For information on fuses and circuit breakers, see 1989-96 TOYOTA FUSES & CIRCUIT BREAKERS article in ELECTRICAL section.

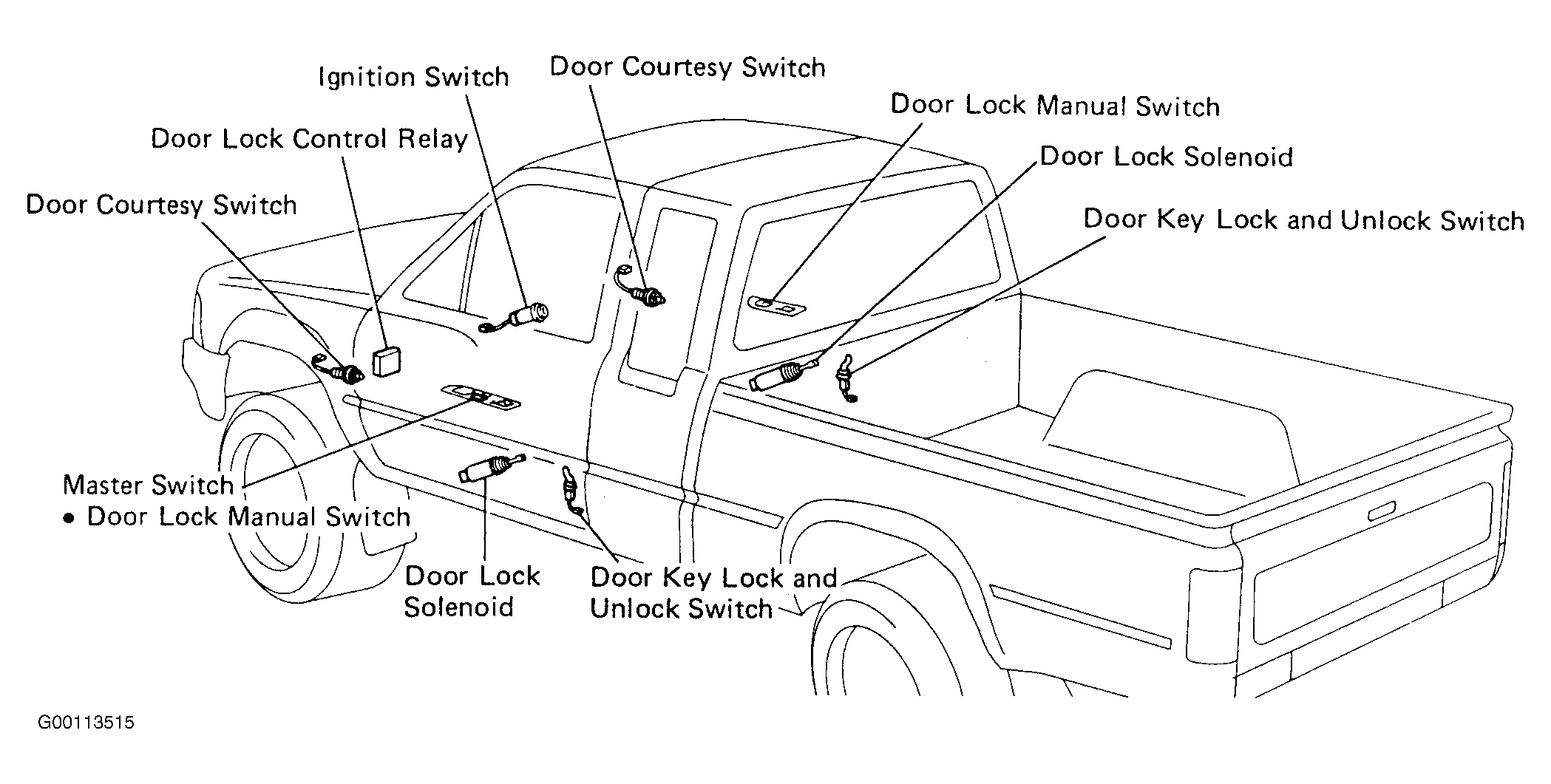

Fig 1: Locating Power Door Lock Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

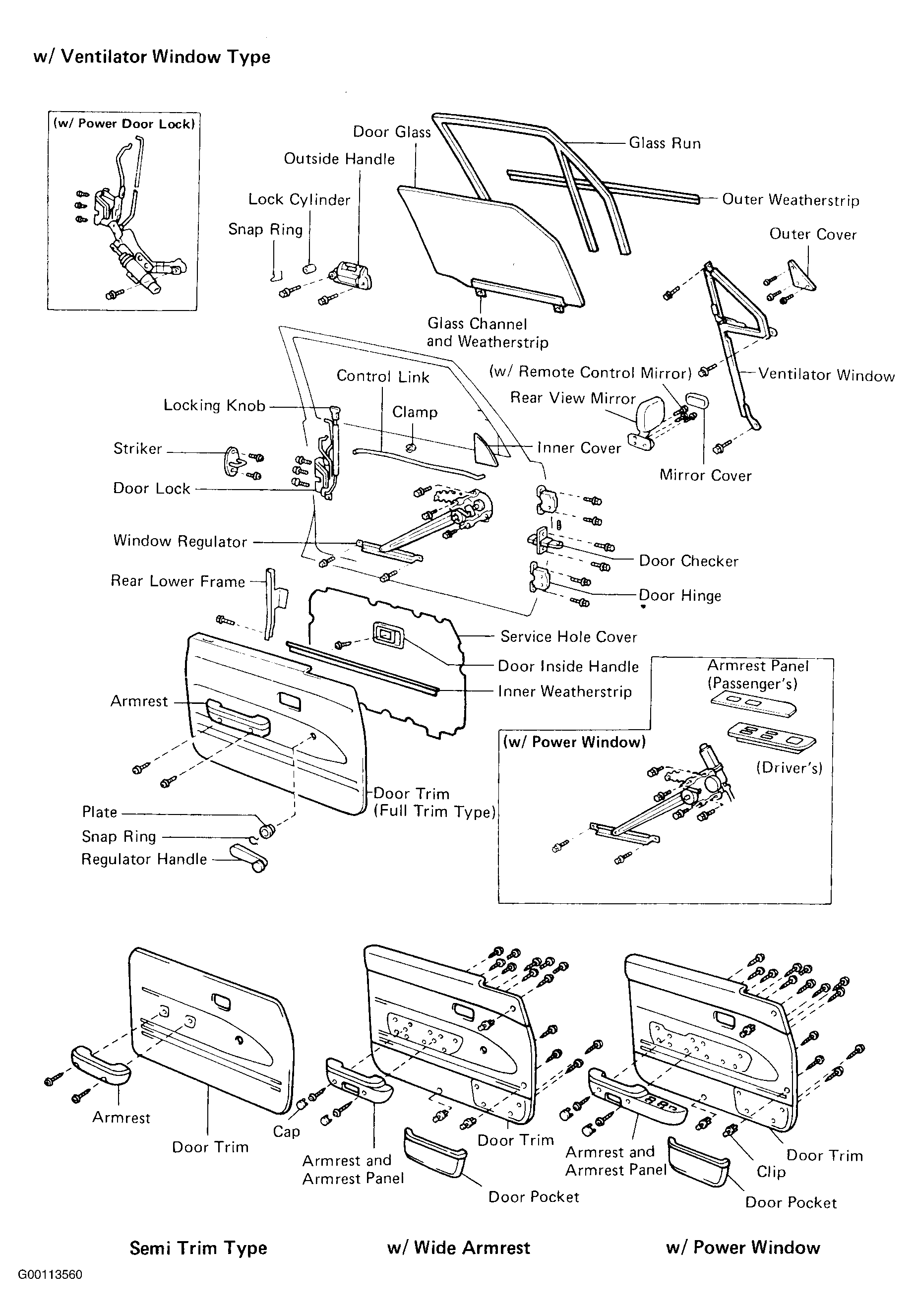

Fig 2: Exploded View Of Door Trim Panel Without Ventilator Window

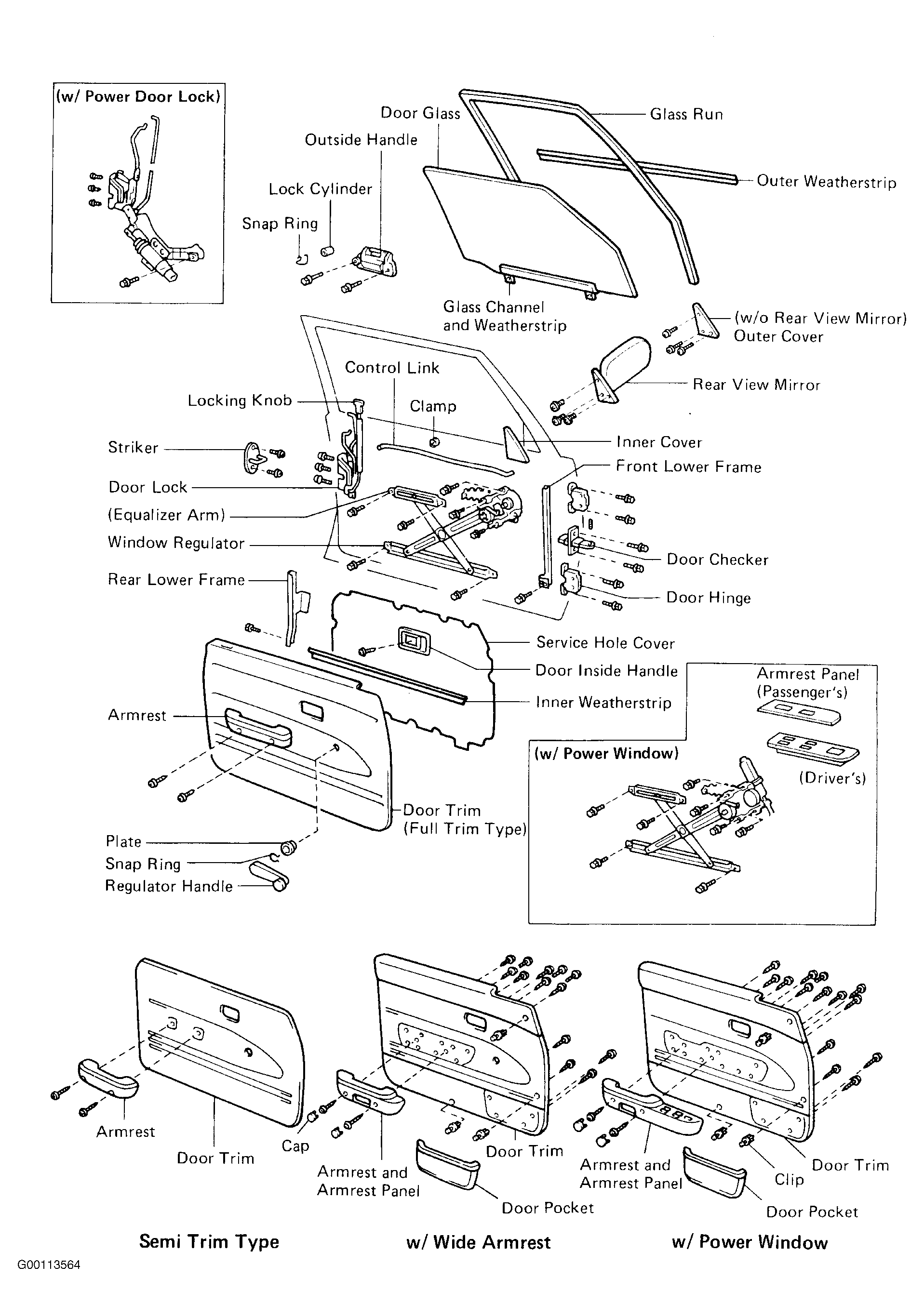

Fig 3: Exploded View Of Door Trim Panel With Ventilator Window
