Test 13 - Cold Enrichment Breaker Circuit
Test 13 - Cold Enrichment Breaker Circuit

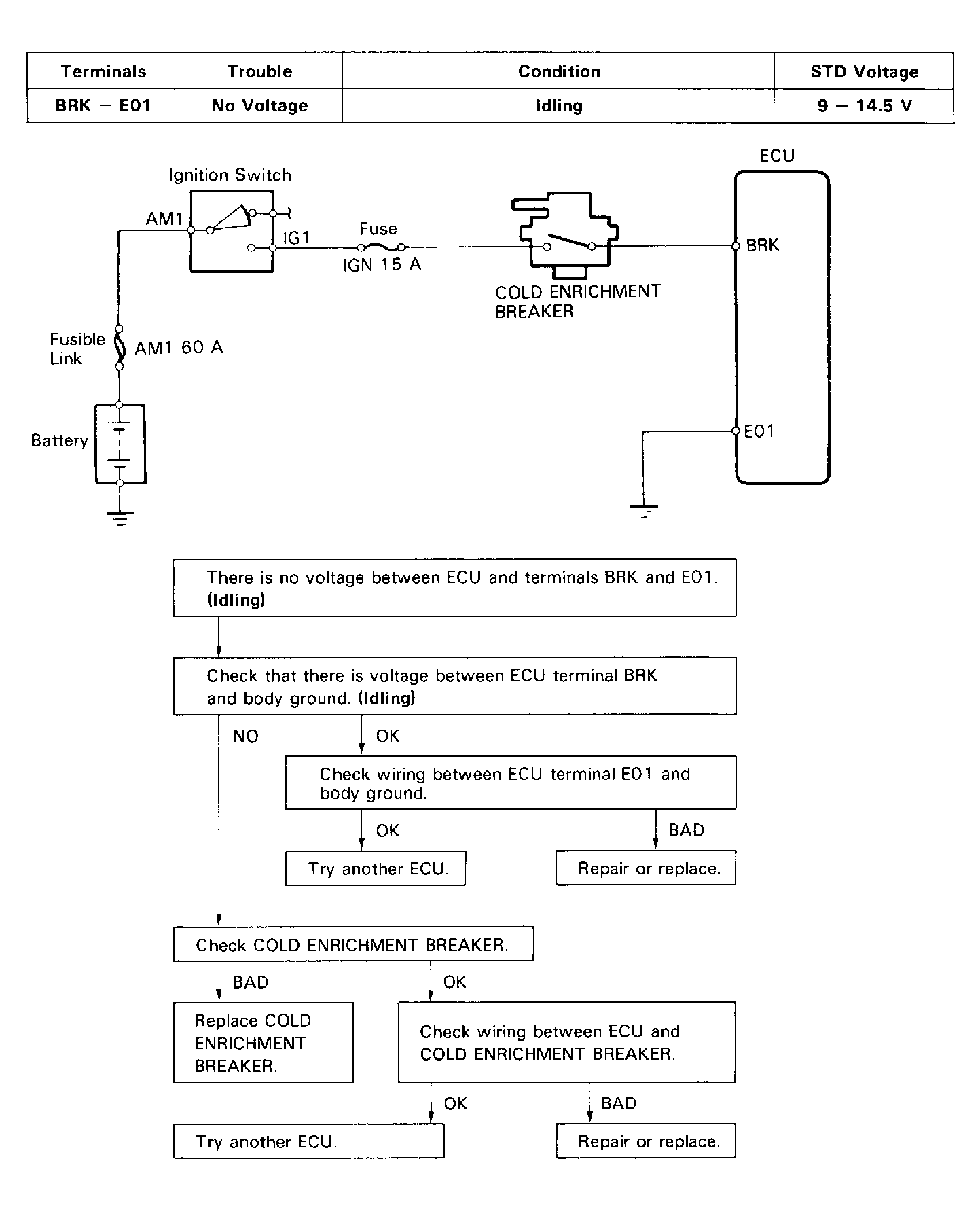

Fig 1: Test 13 Diagram & Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
